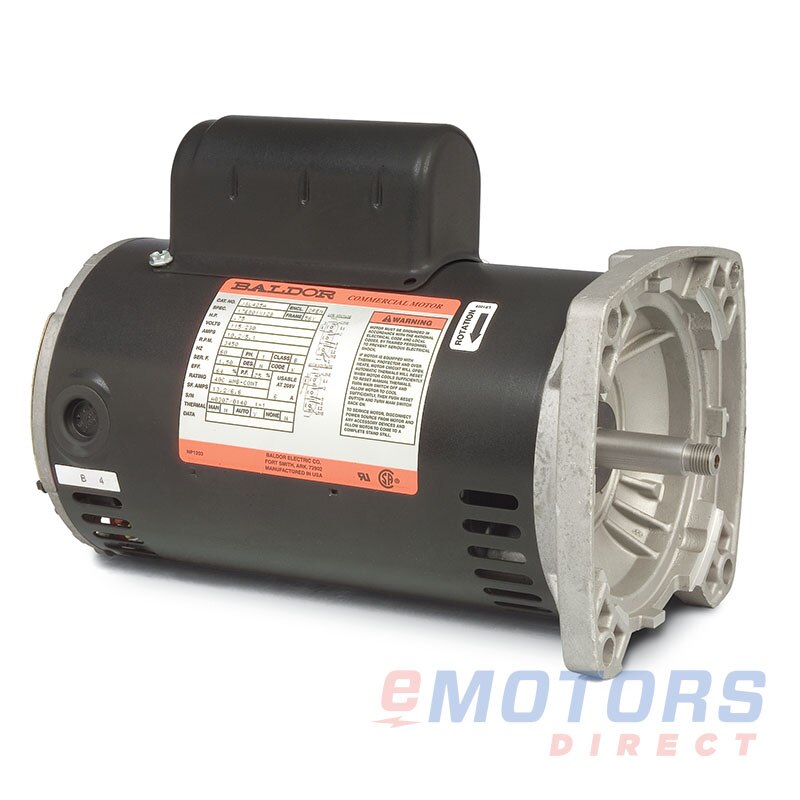

Baldor JSL625A

Baldor · Square flange pump, single phase, ODP
1 1/2 HP 3450 56YZ ODP 115V|230V Pump Motors
Catalog Number: JSL625A
HP
1 1/2
RPM
3600
Voltage
115V,230V
Frame
56YZ
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
Square Flange / Round Body

Product-line overview

The Square Flange Pump from Baldor features a corrosion-resistant stainless steel shaft extension, ensuring long-lasting performance. Its dynamically balanced rotor reduces noise and increases bearing life, while the heavy-duty steel construction provides enhanced strength and durability. The pump is also equipped with a safeguard drip cover for added protection. Designed for general-purpose applications, it is ideal for use in swimming pool pumps, commercial machinery, food and beverage processing, wastewater management, and agricultural settings.

Availability: Factory Order (2-3 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 2-3 weeks
Edmonton [eMotors #2], AB: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Square flange pump, single phase, ODP

Features

  • Stainless steel shaft extension for superior corrosion resistance
  • Dynamically balanced rotor to minimize noise and enhance bearing longevity
  • Heavy-duty steel construction for increased strength and durability
  • Drip cover for added protection and safety

Applications

  • Square flange pumps
  • Swimming pool pumps
  • General-purpose pumps
  • Commercial machinery
  • Food and beverage applications
  • Wastewater systems
  • Agricultural uses
Electrical Data
Rated Motor Output Power
1 1/2 HP
Rated Motor Speed
3600 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
9 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.3
KVA Code
H
Nominal Efficiency
72
Nominal Power Factor
75
Leads (Qty, Size)
4
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56YZ
Enclosure
ODP
Mounting
Square Flange / Round Body
Number of Speeds
-
Approximate Weight
42lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
14.44"
NEMA Design
L
Degree of Protection (IP)
-
Insulation Class
B
Rotation
CWNDE
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
Warranty
-
