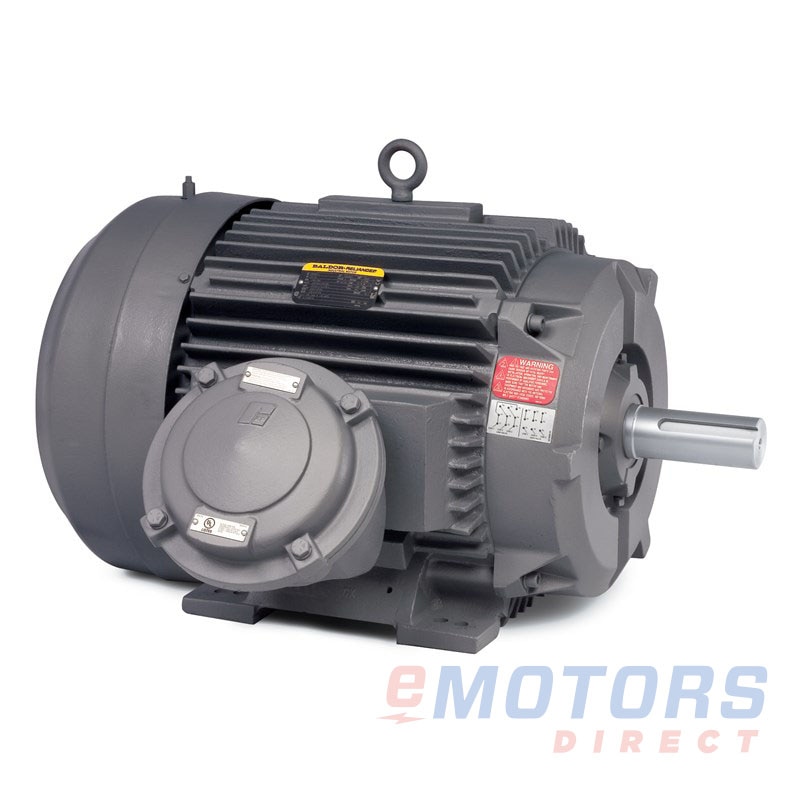

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor P18G4828

Baldor · Explosion Proof
5 HP 1800 L184T TEFC-XP 230V|460V Explosion Proof
Catalog Number: P18G4828
HP
5
RPM
1800
Voltage
230V,460V
Frame
184T
Phase
3
Enclosure
TEFC-XP
Material
Cast Iron
Mounting
Rigid

Product-line overview

Baldor's extensive line of Division 1 Explosion Proof motors are designed and built to contain an explosion inside and not propagate it into the surrounding atmosphere. Approval listings are available for Class I (Gas) and or Class II (Dust) hazardous environments.

DISCONTINUED

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593
Electrical Data
Rated Motor Output Power
5 HP
Rated Motor Speed
1800 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
6.5 AMP
Phase
3
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
87.5
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
184T
Enclosure
TEFC-XP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
141lb
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
15.62"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
-
Rotation
-
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
-
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
1.125"
Shaft Length
2.75"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
USA
Warranty
-
