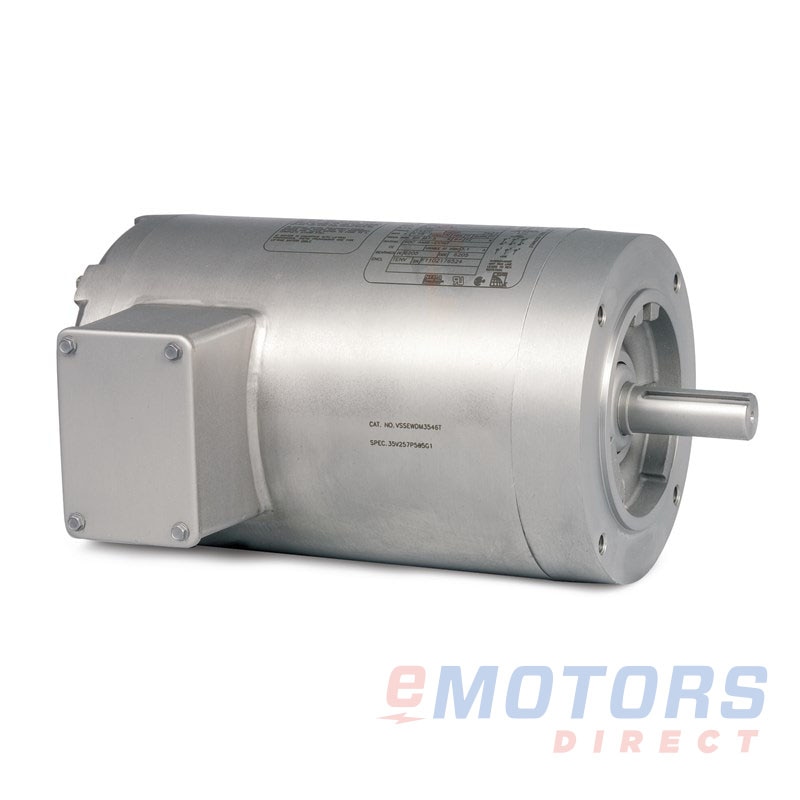

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor VSSEWDM3538

Baldor · Washdown
1/2 HP 1800 56C Fr TENV Washdown
Catalog Number: VSSEWDM3538
Spec Number: 35Z199P563G2
HP
1/2
RPM
1800
Voltage
208-230V, 460V
Frame
56C
Phase
3
Enclosure
TENV
Material
Stainless Steel
Mounting
C-Face / Round Body

Product-line overview

For more than 25 years, Baldor Washdown Duty motors continually raise the bar with more features to improved reliability and energy cost savings.

DISCONTINUED

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Feature

  • 300 series stainless steel
  • Epoxy encapsulated windings
  • Fully welded conduit box
  • O-ring sealed rabbets
  • Class H insulation
  • Inverter ready
  • Laser etched nameplate
  • Four condensate drains in each endplate
  • Double shaft sealing each end
  • NEMA Premium® efficiency
  • 3 year warranty

Applications

  • Food processing
  • Pumps and wastewater
  • Outdoors
  • High pressure
  • washdown
  • Caustic environment
Electrical Data
Rated Motor Output Power
1/2 HP
.37 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
0.75/1.5 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
1.6
Service Factor
1.15
KVA Code
N
Nominal Efficiency
81.5
Nominal Power Factor
64
Leads (Qty, Size)
9#18
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TENV
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Stainless Steel
C-Dimension
11.71"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
H
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6205
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UR
Country of Origin
USA
Warranty
-
