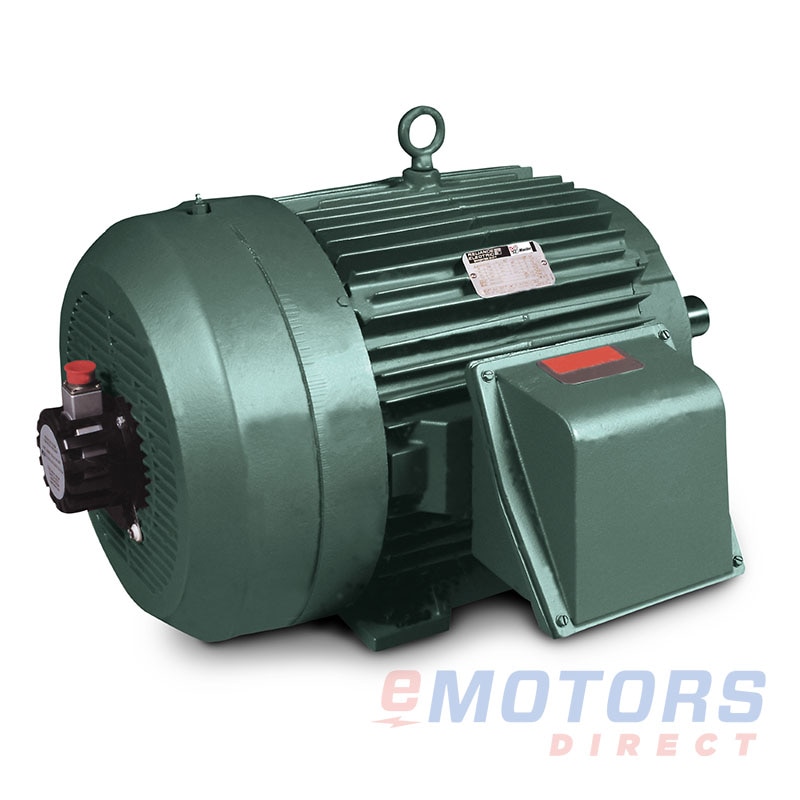

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Baldor ZDVSM4410T-4

Baldor · V*S Master, Vector Duty, TEFC
1125 HP 2685 444T TEFC 460V Vector/Inverter Duty Motors
Catalog Number: ZDVSM4410T-4
Spec Number: P44G4013
HP
125
RPM
1800, 2500
Voltage
460V
Frame
444T
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Product-line overview

The Baldor V*S Master® Vector Duty motor with a TEFC (Totally Enclosed Fan Cooled) enclosure is designed for precise, high-performance operation in demanding industrial environments. It delivers rated torque from zero to base speed and operates across a wide 1000:1 constant torque speed range. A standard 1024 PPR encoder provides accurate speed and position feedback, while three normally closed thermostats—one per phase—offer reliable thermal protection. For enhanced durability, all 440T frame models include an insulated bearing on the opposite drive end. This motor also supports a variety of non-stock encoder types and operates with a 1.0 service factor. It’s well-suited for applications such as extruders, conveyors, cranes, hoists, winders, web processing, process control systems, and test stands.
Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate or an alternate product recommendation.

Important Links

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

V*S Master, Vector Duty, TEFC

Features

  • Delivers rated torque from zero speed up to base speed
  • Equipped with a 1024 PPR encoder for accurate speed feedback
  • Available in TENV, TEFC, and TEBC enclosures with 10001 constant torque speed range
  • Includes three normally closed thermostats (one per phase) for thermal protection
  • Wide variety of non-stock encoder options available
  • Insulated bearing on the opposite drive end for all 440T frame models
  • Operates with a 1.0 service factor for reliable performance

Applications

  • Suitable for extruders, conveyors, cranes, hoists, and winding equipment
  • Ideal for web processing, automated process control, and test stand applications
Electrical Data
Rated Motor Output Power
125 HP
93.21 kW
Rated Motor Speed
1800, 2700 RPM
Rated Motor Voltage
460V
Rated Motor Current
150 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
M
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
3#1/0
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
444T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
44.75"
NEMA Design
A
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
90BC03J30X
NDE Bearing
6318C3VL0241
Shaft Diameter
3.375"
Shaft Length
8.5"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CCSA US
Country of Origin
USA
Warranty
-
