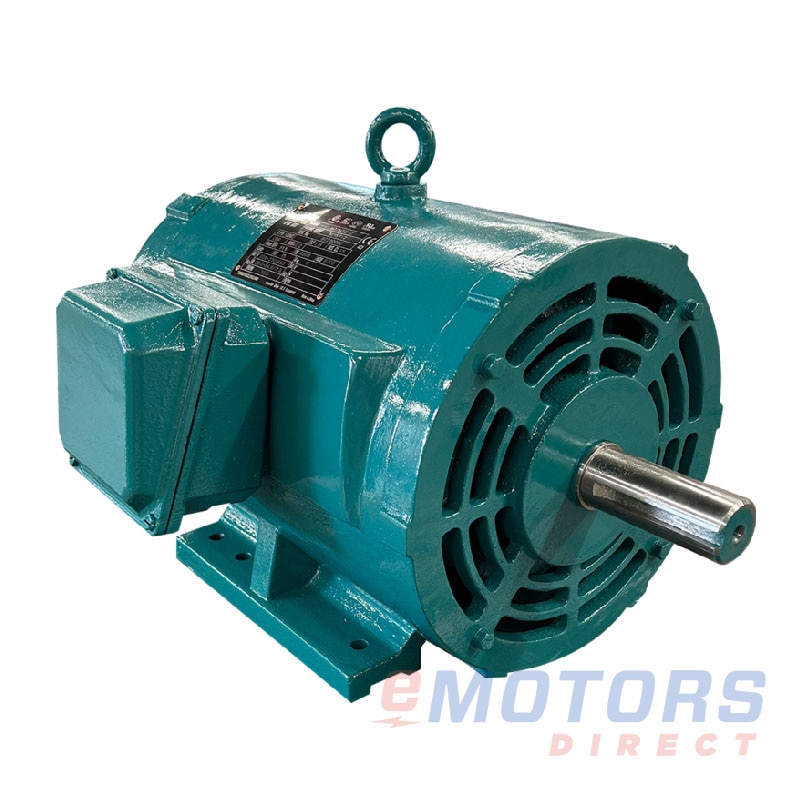

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

New

Brook Crompton HO6N015-5

Brook Crompton
15 HP 1185 RPM 575 V 284T ODP General Purpose AC Motors
Catalog Number: HO6N015-5
Model Number: N280T
HP
15
RPM
1200
Voltage
575V
Frame
284T
Phase
3
Enclosure
ODP
Material
Cast Iron
Mounting
Rigid

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Etobicoke, ON: In Stock
Factory Ordered: Out of Stock
Edmonton [eMotors #2], AB: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
15 HP
11 kW
Rated Motor Speed
1185 RPM
Rated Motor Voltage
575V
Rated Motor Current
15.76 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
91.7
Nominal Power Factor
76.7
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
Wye/Delta
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
10:1
6
Constant Torque
4:1
15
General Data
Frame
284T
Enclosure
ODP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
414lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
25.32"
NEMA Design
B
Degree of Protection (IP)
IP23
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal / Vertical
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
35
Temp Code
T3
Mechanical Data
DE Bearing
6312
NDE Bearing
6211
Shaft Diameter
1.875"
Shaft Length
4.625"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
3-Year
