Product images are for reference only. Please review product specifications for the most accurate and detailed information.

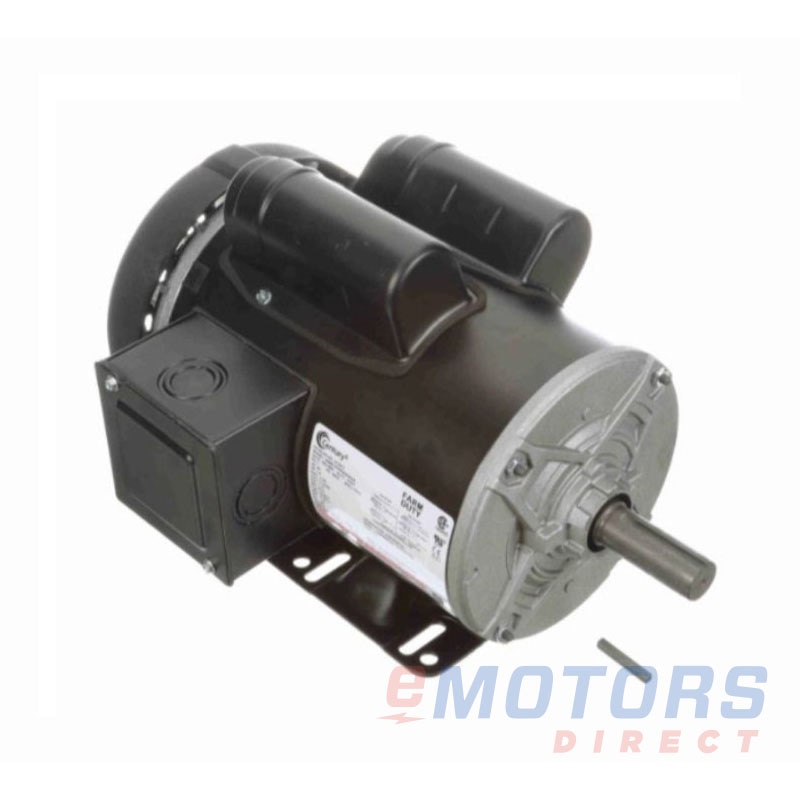

Century K104V1

Century · Farm-Rated Motors
1 1/2HP 1725 56HZ TEFC 115V|230V Farm Duty
Catalog Number: K104V1
HP
1 1/2
RPM
1800
Voltage
115V,230V
Frame
56HZ
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

Century has an electric motor to match the most important jobs on the farm, from aeration fans and grain dryers to pressure washers and milk pumps. Find your replacement farm duty motor by selecting ratings like frame size, HP, and voltage. Options available in single-, 3-phase, and DC power input.

Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 3-5 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Feature

  • Energy efficient
Electrical Data
Rated Motor Output Power
1 1/2 HP
1.125 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
12.6/6.3 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56HZ
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
43lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
14.61"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
Ball
NDE Bearing
Ball
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
1-Year
