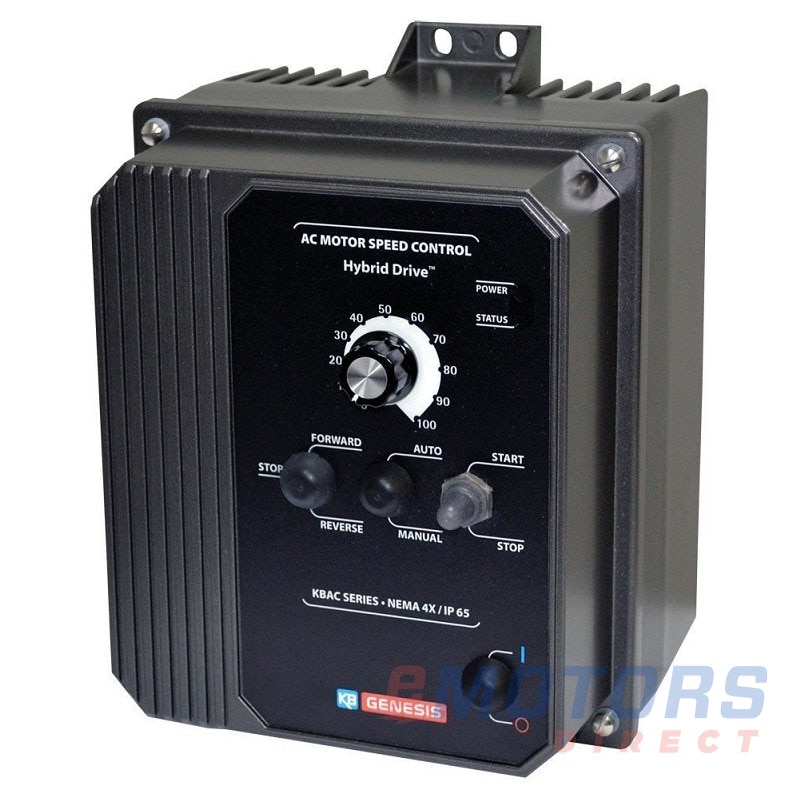

KB Electronics KBAC-27D Black

KB Electronics · KBAC - VFD
KBAC Hybrid Drive - NEMA 4X 2 HP 230V (No.9520)
Catalog Number: KBAC-27D Black
Part Number: 9520
HP
1 1/2, 2
Input Voltage
115V, 230V
Output Voltage
230V
Input Phase
1
Enclosure
NEMA 4X

Overview

The KB Electronics KBAC series VFDs are secured inside a NEMA 4X enclosure, a heavy-duty housing rated for IP 65 for protection in washdown environments. These digital drives have an analog interface and are rated for single- or 3-phase input. Select from 12 models rated for 1 HP up to 5 HP.

CAD$774.20
Ships next business day

Available for Delivery

Delivery Estimate

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (12)
Oakville, ON: In Stock
Anjou, QC: Out of Stock
Edmonton, AB: Out of Stock

On Order

1 Expected10/17/2023
2 Expected10/17/2023
1 Expected11/17/2023
1 Expected1/17/2024
3 Expected7/15/2024

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593
Returns & Refund Policy

Cross-Referenced Matches (6)

Equivalent alternatives from other brands that have matching specifications to this product.

  • TECO-Westinghouse E510-202-HN4R-U

    2 HP 230V 1/3 PHASE INPUT NEMA 4X/IP66 TECO AC DRIVE

    CAD $937.31
    Ships next business day

  • TECO-Westinghouse E510-202-H1FN4S-U

    2 HP 230V SINGLE PHASE INPUT NEMA 4X/IP66 TECO AC DRIVE

    CAD $1,066.10
    Ships next business day

  • KB Electronics KBDA-27D Black

    KBDA Digital Drive - NEMA 4X 2 HP 230V (No.9543)

    CAD $812.11
    Ships next business day

  • KB Electronics KBDA-29 Black

    KBDA Digital Drive - NEMA 4X 3 HP 230V (No.9545)

    CAD $819.40
    Ships next business day

  • KB Electronics KBDA-27D White

    KBDA Digital Drive - NEMA 4X 2 HP 230V (No.9544)

    CAD $842.72
    Ships next business day

  • KB Electronics KBDA-29 White

    KBDA Digital Drive - NEMA 4X 3 HP 230V (No.9546)

    CAD $842.72
    Ships next business day

KB Electronics: KBAC - VFD (12)

KBAC-24D Black1115V, 230V230V1NEMA 4X $516.13
KBAC-24D White1115V, 230V230V1NEMA 4X $546.75
KBAC-27D Black1 1/2, 2115V, 230V230V1NEMA 4X $774.20
KBAC-29 Black3230V230V3NEMA 4X $781.49
KBAC-45 Black3460V460V3NEMA 4X $788.78
KBAC-27D White1 1/2, 2230V230V1NEMA 4X $804.82
KBAC-48 Black5460V460V3NEMA 4X $812.11
KBAC-29 White2, 3230V230V1, 3NEMA 4X $812.11
KBAC-29 (1P) Black3230V230V1NEMA 4X $819.40
KBAC-45 White3460V460V3NEMA 4X $819.40
KBAC-48 White5460V460V3NEMA 4X $842.72
KBAC-29 (1P) White3230V230V1NEMA 4X $850.01

Description

The KBAC Series of Adjustable Frequency Drives consist of twelve inverter models rated from 1/8 to 10 horsepower. These drives are housed in a heavy duty NEMA 4X/IP 65 die-cast aluminum washdown enclosure for indoor or outdoor use. Hybrid drives are a digital drive with an analog interface.



eMotors Direct's stock of AC motor drives are for applications where you want to control an AC motor's speed. AC drives are often referred to in a few different ways; variable frequency drives (VFD), adjustable speed drives, and frequency converters, to name a few. You'll find VFDs controlling motors small enough for appliances and large enough for industrial compressors. Controlling your AC motor's speed allows you to more closely manage and optimize the output and attached equipment, increase your energy efficiency, and decrease the mechanical stress on your motor and related components.

Our VFD category covers many types of AC Drives, including but not limited to single-phase AC motor drives and three-phase input drives. Choose a drive compatible with motors capable of horsepower outputs from fractional up to 1000 HP. Make your selection from chassis, NEMA 1, NEMA 4, or NEMA 4X enclosures and single- or three-phase input options. These are all from Canada's best brands; Control Techniques, KB Electronics, Leeson, TECO-Westinghouse, and WEG.

Shop AC motor speed controllers online through our Canadian website today. With over 700 SKUs and convenient filtering options, you can easily find the VFD you're searching for.

Need a hand finding the right motor speed controller for your application or legacy replacement? Contact our motor experts today. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.



Electrical Data
HP CT Rating
1 1/2, 2 HP
HP VT Rating
-
Input
Output
Voltage
115V, 230V
230V
Max CT Current
22/16.7
5.5/6.7
Max VT Current
-
-
Phase
1
3
Hz Range
50-60
0-120
Physical Data
Weight
11 lb
Height
9.8"
Width
7.55"
Depth
7.25"
Enclosure
NEMA 4X
Frame
-
Ambient Temp
45°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
USA
Warranty
18-Month
