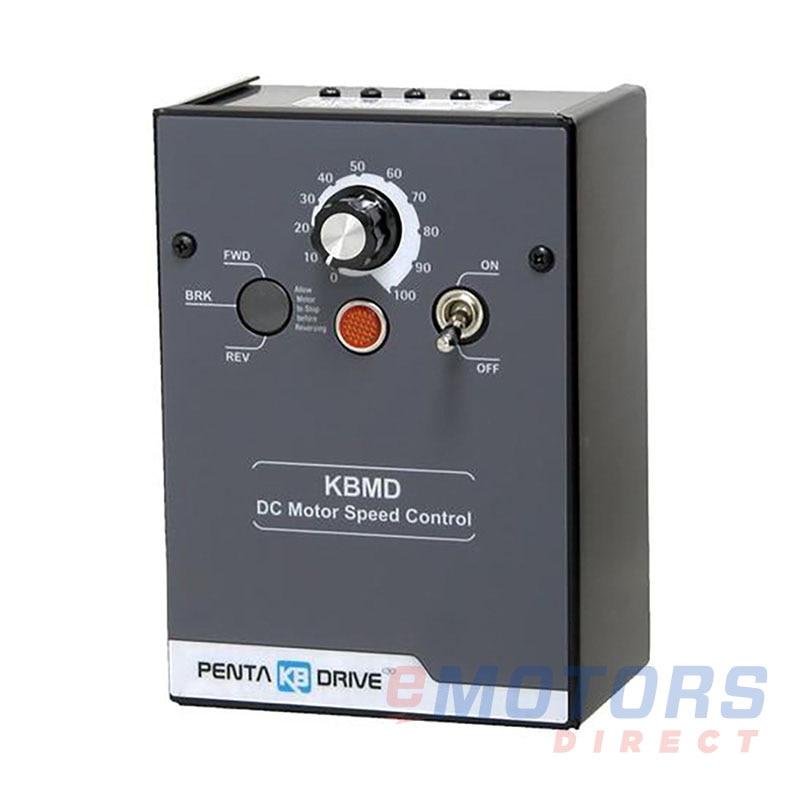

KB Electronics KBMD-240D

KB Electronics · KBMD - DC Drive
KBMD SCR Drive - NEMA 1 1HP 180V (No.9370)
Catalog Number: KBMD-240D
Part Number: 9370
HP
3/4, 1 1/2
Input Voltage
115V, 230V
Output Voltage
90V, 180V
Input Phase
1
Enclosure
NEMA 1

Product-line overview

One Drive, Multiple Applications: Dual voltage input (115/230V) and a Plug-in Horsepower Resistor® allow a single KBMD model to cover a wide range of DC motors, simplifying selection and reducing inventory.

Flexible Power Range: Handles motors up to 1 HP (115V) and 2 HP (230V) with an optional heatsink (P/N SC-9861) making it suitable for everything from light-duty to moderate industrial applications.

Precise Speed Control: Adjustable trimpots for Min/Max speed, IR compensation, current limit, and accel/decel provide smooth, consistent motor performance across varying loads.

Built-In Protection & Durability: Includes a patented overload circuit, MOV transient protection, and integrated AC line fuse, all housed in a rugged metal enclosure for long-term reliability.

Easy Installation & Operation: Compact design with terminal block wiring, dual voltage switch, and straightforward setup makes it ideal for quick installs and replacements.

The Forward-Brake-Reverse Switch (P/N SC-9860) is an optional feature. Includes switch and prewired dynamic brake resistor.

This product requires a resistor and fuse. Please include the HP and voltage of the motor that the drive will use with. This will be included with your drive.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: Out of Stock
Saint-Hubert, QC: In Stock
Edmonton, AB: In Stock
Edmonton [eMotors #2], AB: Out of Stock

On Order

1 Expected 5/30/2026
2 Expected 5/30/2026
10 Expected 8/31/2026

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

KB Electronics: KBMD - DC Drive (1)

KBMD-240D3/4, 1 1/2115V, 230V 90V, 180V 1NEMA 1 $294.24

Description

The Model KBMD-240D, also called Multi-Drive™, is rated for 1/100 to 2 horsepower and is an SCR drive housed in a NEMA 1 enclosure. It utilizes the KBMM speed control for its electronics. It handles both 115 and 208/230 Volt AC line inputs by setting the built-in Dual Voltage Switch. The single model can be used on a wide range of motor horsepower by inserting the appropriate Plug-In Horsepower Resistor, which is required to operate this drive. It includes an AC line fuse and an Armature fuse holder.

Electrical Data
HP CT Rating
1 1/2,3/4 HP
HP VT Rating
-
Input
Output
Voltage
115V,230V
180V,90V
Max CT Current
12
8
Max VT Current
-
-
Phase
1
DC
Hz Range
50-60
-
Physical Data
Weight
-
Height
4"
Width
5.1"
Depth
4"
Enclosure
NEMA 1
Degree of Protection (IP)
IP50
Frame
-
Ambient Temp
45°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
MEXICO
Warranty
18-Month
