Nidec 2686

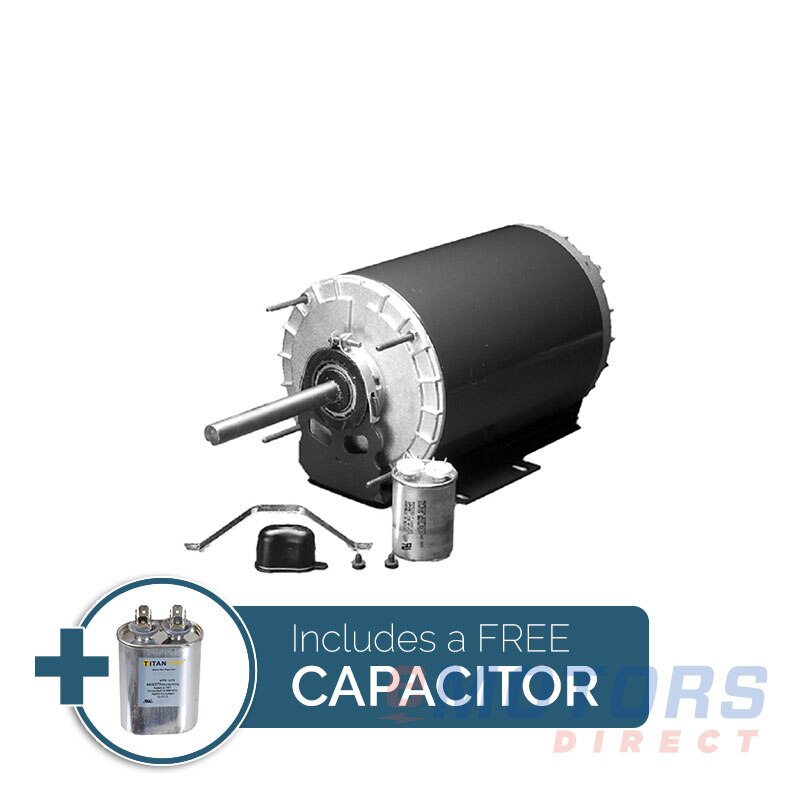

1 HP 1075 56Z Fr TEAO 208-230V|460V Permanent Split Capacitor Capacitor Included: TOCF17.5
Catalog Number: 2686
Model Number: K0630WN3977892B
HP
1
RPM
1200
Voltage
208-230V, 460V
Frame
56Z
Phase
1
Enclosure
TEAO
Material
Rolled Steel
Mounting
Resilient

Overview

Lower your energy usage and increase the reliability of your HVAC system. With horsepower ranging from ¼ to 5 HP, these motors are available for OEM original and replacement applications. When you want to keep your indoor atmosphere at its most comfortable, choose a Nidec HVAC motor.

CAD$834.40
Contact us for delivery dates

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

  • Baldor CHC365A

    1/2 HP 1200 56 TEAO 115V|230V Furnace Motor

    CAD $652.05
    Ships next business day

Direct Replacement

This item is a direct replacement for the following motors:

BrandCatalog
AO SMITHFR1106 , FB1106 , FC1106 , FY1106
CENTURYC770 , FB1106
MARATHONX206 , X409
CARRIERHC52AE230
EMERSONK55JPE-5343 , K63DFL-3841 , K63WN-3977 , K55JPD-5342 , K2686 , K63DGT-3887 , K630WC-2892
FRF5080 , 1501470406
GENERAL ELECTRIC5KCP48TG181 , 5KCP47SD143 , P181
GLOBAL INDWBB468078
GRAINGER/DAYTON3M998 , 3M869
JSS88-085
LENNOX81F5101
MARS3186
PACKARD70602
ROTOMS2524
SHA3-41
SMITHFC1106
TRANEM0T-6065

Permanent Split Capacitor Commercial Condenser Fan

Applications

For use on condenser cooling fans in commercial air conditioning applications

Features

  • Capacitor and Outlet Box Included, unless noted
  • Reversible Rotation, unless noted
  • Double-Sealed Ball Bearings
  • Continuous Duty, Air Over
  • Automatic Reset Thermal Overload Protector
  • Bearings have All Angle Thrust System
  • Dual Voltage
  • Class B Insulation
  • Quick Change Voltage Receptacle, No Outlet Box

eMotors Direct’s stock of furnace motors covers every style of motor you would need for your HVAC system; three-phase, GE 11 frame, double shafted, exhaust, belt driven, 3.3 & 4.4 diameter, draft inducers, unit heater, oil burner, ECM brushless, carbonator & heat pump, evaporative cooler, HVAC fan motors, and various types of furnace blower motors. Keep your residential, commercial, or industrial building’s atmosphere comfortable with higher efficiency and reduced noise.

Our furnace motor category has electric motors from brands like Baldor, Century, Leeson, Marathon, Nidec, and Packard, names you’ve come to know and trust. Shop single- and three-phase motors with a variety of enclosure types; OAO, ODP, TEAO, TEFC, and TENV. And a variety of frame sizes and mounting options to choose from. With direct and OEM replacements, you’ll find the correct motor for your application no matter what brand the legacy motor is.

Shop furnace motors online through our Canadian website today. With over 1150 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

Need a hand finding the right motor for your application or legacy replacement?  Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
1 HP
0.75 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
208-230V, 460V
Rated Motor Current
5.1/2.6 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
5.66
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
17.5
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56Z
Enclosure
TEAO
Mounting
Resilient
Number of Speeds
1 Speed
Approximate Weight
38.48lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
15.8"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
60°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
BALL
NDE Bearing
BALL
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
1-Year
