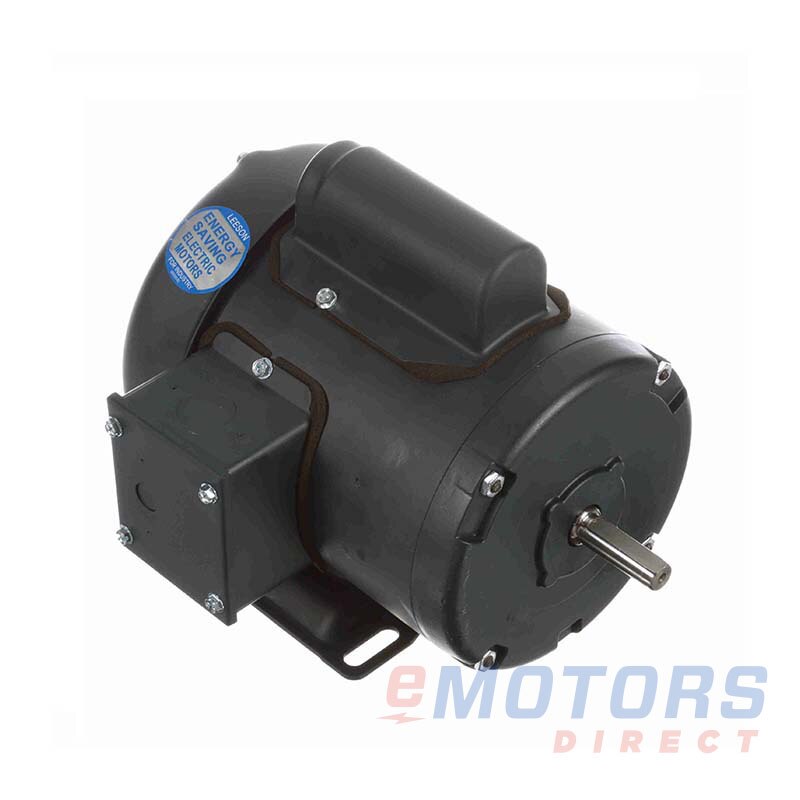

Leeson 102020.00

Leeson · Single Phase Totally Enclosed
1/2HP 3600 48 TEFC 115V|208-230V General Purpose
Catalog Number: 102020.00
Model Number: C4C34FB9C
HP
1/2
RPM
3600
Voltage
115V, 208-230V
Frame
48
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

Leeson’s line of general purpose motors has hundreds of standard, off-the-shelf models for a variety of industrial applications. Choose from ODP, TEFC, or TENV enclosure options and single-phase or three-phase power input. Match your application with ¼ HP up to 200 HP and RPM from 900 to 3600.

Contact us for delivery dates

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Leeson: Single Phase Totally Enclosed (2)

102020.001/23600115V, 208-230V48 $406.65
101766.001/31800115V, 230VS56C $459.72

Description

For use where exposure to water, dust and dirt exists. Ideally suited for use on pumps,
compressors, fans, conveyors and other industrial equipment.

Feature

  • Durable rolled steel construction
  • NEMA® Design B performance
  • Meets or exceeds NEMA service factors
  • Double shielded ball bearings
  • Continuous duty
  • Thermally protected ratings
  • UL recognized component listing and CSA certified

What is a General-Purpose AC Motor

General Purpose AC motors refers to a broad category of every-day-use motors. Very similar to a car’s base model, these motors don’t have all the bells and whistles. You won’t find specialized shafts and bearings, specific mounting equipment, or over current and overload protections. Therefore, general purpose motors can be used for many purposes.

Sometimes referred to as ‘asynchronous’ or ‘induction’ motors, AC motors convert alternating current into mechanical energy (torque). AC stands for alternating current, as the electric current reverses its direction many times in a second. Most motors built for use in Canada run at 60Hz, meaning the direction changes 60 times per second.

Where to Buy General Purpose AC Motors in Canada

Shop general purpose electric motors online through our Canadian website today. With over 8500 SKUs and convenient filtering options, you can easily find the motor you’re searching for. Inventory is distributed from Toronto, Montreal, and Edmonton. Most orders arrive in 1-5 business days when shipping within Canada.

Our general purpose motor category covers many types of electric motors like single-phase and three-phase general purpose AC motor, for example. Choose a motor with a frame made from materials like cast iron, rolled steel, aluminum, and stainless steel. Find horsepower abilities from fractional up to 600. Choose from different enclosure types, like open Air Over (OAO), Open Drip Proof (ODP), Totally Enclosed Air Over (TEAO), Totally Enclosed Fan Cooled (TEFC), and Totally Enclosed Non-Ventilated (TENV). All from your most trusted brands; Baldor, Century, Leeson, Marathon, Max Motion, Nidec, TECO-Westinghouse, and WEG.

Need a hand finding the right motor for your application or legacy replacement? Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
1/2 HP
0.37 kW
Rated Motor Speed
3600 RPM
Rated Motor Voltage
115V, 208-230V
Rated Motor Current
7.0/3.4 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
3.5
Service Factor
1.15
KVA Code
L
Nominal Efficiency
66
Nominal Power Factor
68
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
19
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
9.31"
NEMA Design
N
Degree of Protection (IP)
IP43
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.5"
Shaft Length
1.5"
Grease Type
Multemp SRL
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
MEXICO
Warranty
1-Year
