Leeson 107014.00

Leeson · P1100 - AC Gearmotors

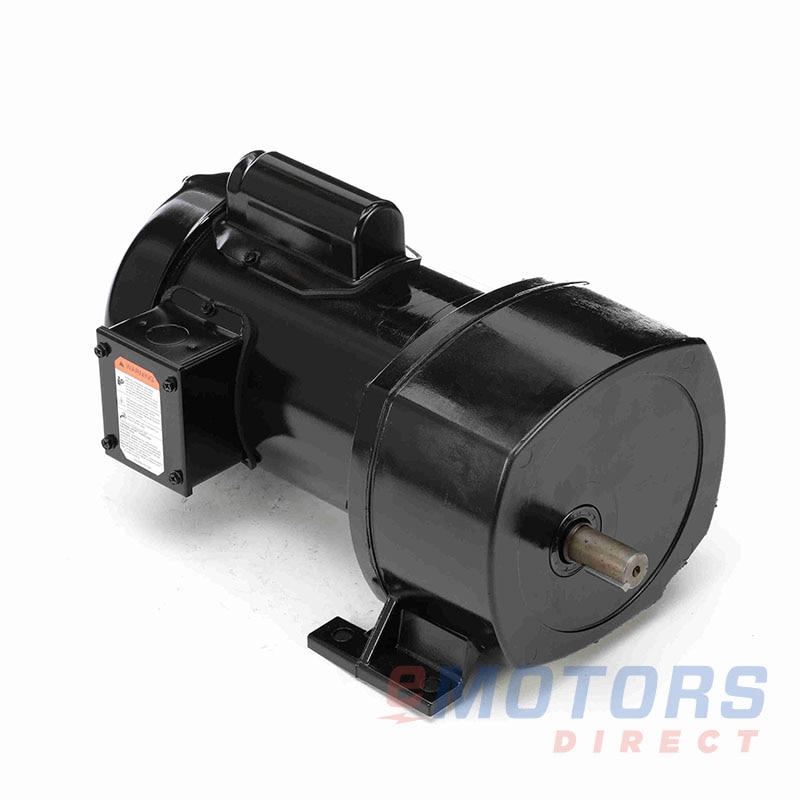

1/2 HP 13:1 133 RPM 115V|208-230V TEFC GEARMOTOR
Catalog Number: 107014.00
HP
1/2
Ratio
13:1
Voltage
115V, 208-230V
Output RPM
133
Max Output Torque
229 lbs-in

Overview

They are designed for reliability and long life with parallel shaft models ranging from 10 through 1100-inch pounds of torque and right-angle models ranging from 5 through 220 inch-pounds of torque.

CAD$1,455.77
Contact us for delivery dates

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593
Returns & Refund Policy

Leeson: P1100 - AC Gearmotors (23)

107005.0029:1Parallel Shaft59248 lbs-in $1,317.23
107007.006:1Parallel Shaft28870 lbs-in $1,335.65
107008.0011:1Parallel Shaft157125 lbs-in $1,335.65
107010.0029:1Parallel Shaft59330 lbs-in $1,335.65
107011.0042:1Parallel Shaft41461 lbs-in $1,335.65
107002.0066:1Parallel Shaft26569 lbs-in $1,348.62
107003.0095:1Parallel Shaft18800 lbs-in $1,348.62
107004.00143:1Parallel Shaft121030 lbs-in $1,348.62
107000.00212:1Parallel Shaft8975 lbs-in $1,348.62
107029.0019:1Parallel Shaft91224 lbs-in $1,418.92
107026.0066:1Parallel Shaft26752 lbs-in $1,449.63
107025.0095:1Parallel Shaft181089 lbs-in $1,449.63
107014.0013:1Parallel Shaft133229 lbs-in $1,455.77
107015.0019:1Parallel Shaft91336 lbs-in $1,455.77
107016.0029:1Parallel Shaft59496 lbs-in $1,455.77
107017.0042:1Parallel Shaft41700 lbs-in $1,455.77
107013.0079:1Parallel Shaft221105 lbs-in $1,485.12
107037.006:1Parallel Shaft288100 lbs-in $1,507.64
107036.0013:1Parallel Shaft133229 lbs-in $1,507.64
107035.0019:1Parallel Shaft91336 lbs-in $1,507.64
107034.0029:1Parallel Shaft59496 lbs-in $1,507.64
107033.0042:1Parallel Shaft41700 lbs-in $1,507.64
107032.0079:1Parallel Shaft221105 lbs-in $1,530.17

Description

LEESON right angle and parallel shaft gearmotors are available from stock in both AC and DC designs. They are designed for reliability and long life with parallel shaft models ranging from 10 through 1100-inch pounds of torque and right-angle models ranging from 5 through 220 inch-pounds of torque. Right angle designs feature reversible output shafts, for easy field conversion from left hand to right hand output.

Features

  • Rugged die cast aluminum gear housing for maximum gear and bearing support
  • Precision machined gearing, hardened for maximum load capability
  • Oversized output bearings for greater overhung load capacity and long life
  • High carbon alloy output shaft provides maximum strength and rigidity

eMotors Direct’s stock of gearmotors are for use in various applications across industries like agriculture, food production, and more. They are combinations of motors and gearing all housed within one compact enclosure, ideal for applications where a small footprint, high-torque, and low-speeds are required. You’ll often find electric gear motors moving medical laboratory equipment, arcade games, agricultural equipment like sprayers and spreaders, and keeping production lines efficient in food manufacturing plants.

Our gearmotor category covers a variety of inline and right-angle gear motors. Select from gearing ratios starting at 5:1 up to 900:1, output RPMs from zero up to 600, and totally enclosed fan cooled (TEFC) or totally enclosed non-ventilated (TENV) enclosure options. Choose the correct input for your source power; DC, single-, or three-phase. These Leeson gear motors are available in fractional horsepower ratings from 1/40 up to ½ and various voltage input ratings.

Shop DC and AC gear motors online through our Canadian website today. With over 210 SKUs and convenient filtering options, you can easily find the motor and gearing solution you’re searching for.

Need a hand finding the right gearmotor for your application or legacy replacement?  Contact our motor experts today. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
1/2 HP
0.37 kW
Rated Motor Speed
133 RPM
Rated Motor Voltage
115V, 208-230V
Rated Motor Current
8.8|4.4 AMP
Phase
1
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
4.85
Service Factor
1.15
KVA Code
K
Nominal Efficiency
64
Nominal Power Factor
-
Leads (Qty, Size)
8
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
Gear Data
Ratio
13:1
Output Type
Parallel Shaft
Output Orientation
-
Output Shaft Diameter
3/4"
Output RPM
133
Max Output Torque
229 lbs-in
Max Overhung Load
525 lbs
Case Material
Aluminum
Type of Oil
-
General Data
Category
Gearing
Frame Size
48Y
Enclosure
TEFC
Mounting
Special
Approximate Weight
35lb
Frame Material
Aluminum
C-Dimension
14.17"
NEMA Design
N
Degree of Protection (IP)
NOT
Insulation Class
F4
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Ambient Temperature
40°C
Full Load Temperature Rise
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Additional Information
Agency Approvals
CSA & UL
Country of Origin
-
Warranty
1-Year
