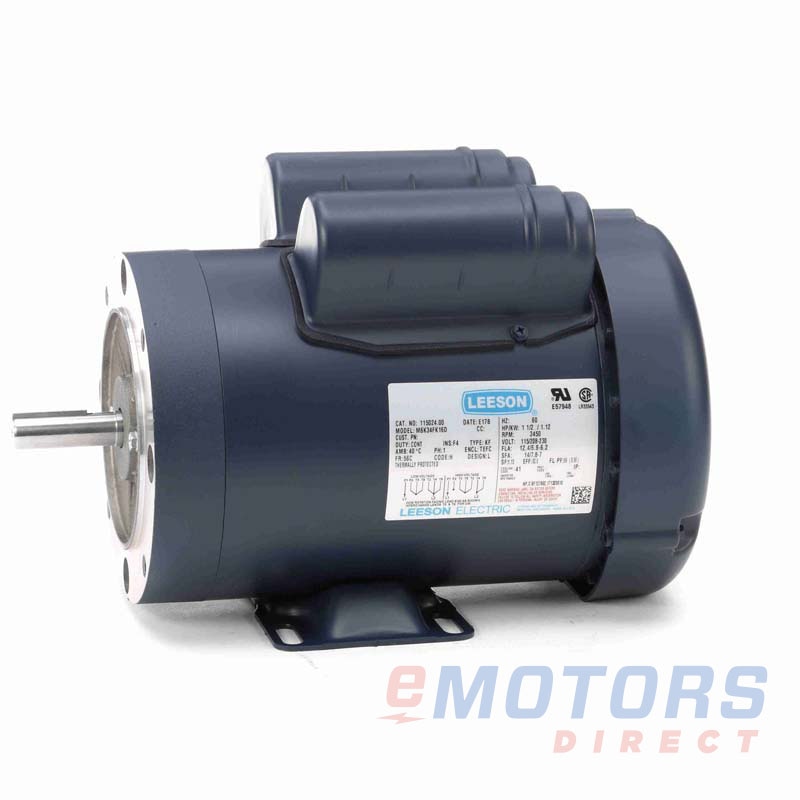

Leeson 115024.00

1 1/2 HP 3600 56C TEFC 115V|230V General Purpose
Catalog Number: 115024.00
Part Number: 115024.00
Model Number: M6K34FK16D
HP
1 1/2
RPM
3600
Voltage
115V, 208-230V
Frame
56C
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Rigid
CAD$595.00
Ships next business day

Available for Delivery

Delivery Estimate

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #2], AB: In Stock (4)
Edmonton, AB: Out of Stock
Mississauga, ON: Out of Stock

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (6)

Equivalent alternatives from other brands that have matching specifications to this product.

  • WEG FC001102W01DOE

    1 1/2 HP 3600 56C TEFC 115V|230V General Purpose

    CAD $594.45
    Ships next business day
  • Baldor PCL3513M

    1 1/2 HP 3600 56C TEFC 115V|230V General Purpose

    CAD $793.86
    Ships next business day
  • Marathon D314

    1 1/2 HP 3600 56C TEFC 115V|208-230V General Purpose

    CAD $431.20
    Contact us for delivery dates
  • Leeson 110909.00

    1 1/2 HP 3600 56C TEFC 115V|230V General Purpose

    CAD $668.30
    Contact us for delivery dates
  • Baldor CL3513

    1 1/2 HP 3600 56C TEFC 115V|230V General Purpose

    CAD $770.57
    Contact us for delivery dates
  • Baldor L3513-50-C

    1 1/2 HP 3000 56C TEFC 110V|220V General Purpose

    CAD $1,123.58
    Contact us for delivery dates

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

eMotors Direct’s stock of general purpose electric motors are for use in various applications across numerous industries. Very similar to a car’s base model, these motors don’t have all the bells and whistles. You won’t find specialized shafts and bearings, specific mounting equipment, or over current and overload protections. Therefore, general purpose motors can be used for many purposes.

Our general purpose motor category covers many types of electric motors like single-phase and three-phase general purpose AC motor, for example. Choose a motor with a frame made from materials like cast iron, rolled steel, aluminum, and stainless steel. Find horsepower abilities from fractional up to 600. Choose from different enclosure types, like open Air Over (OAO), Open Drip Proof (ODP), Totally Enclosed Air Over (TEAO), Totally Enclosed Fan Cooled (TEFC), and Totally Enclosed Non-Ventilated (TENV). All from your most trusted brands; Baldor, Century, Leeson, Marathon, Max Motion, Nidec, TECO-Westinghouse, and WEG.

Shop general purpose electric motors online through our Canadian website today. With over 8500 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

Need a hand finding the right motor for your application or legacy replacement?  Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
1 1/2 HP
1.1 kW
Rated Motor Speed
3600 RPM
Rated Motor Voltage
115V, 208-230V
Rated Motor Current
12.4/6.8-6.2 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
H
Nominal Efficiency
82.5
Nominal Power Factor
96
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
38
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.49"
NEMA Design
L
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
1-Year
