Leeson 141434.00

Leeson · Hi-Torque and Extra Hi-Torque Motors

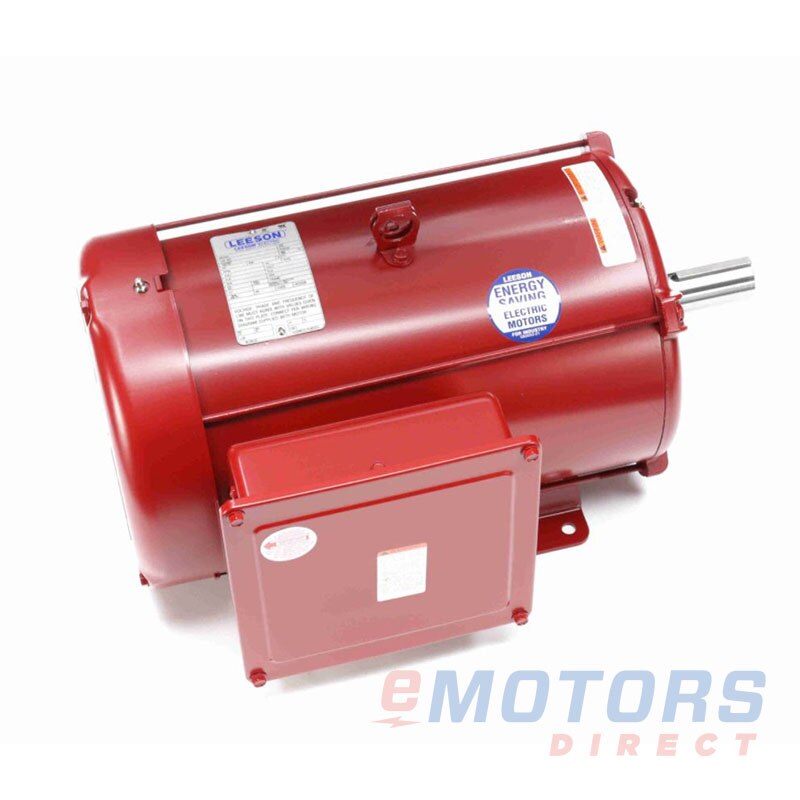

7.5HP 1800 215T TEFC 230V Farm Duty
Catalog Number: 141434.00
Model Number: P215K17FB78A
HP
7 1/2
RPM
1800
Voltage
230V
Frame
215T
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Product-line overview

Built for the severe duty applications of the agricultural industry, Leeson’s farm duty motors are designed to handle harsh environments and high starting loads. Find the correct motor for your grain dryer, auger, barn fan and more by matching essential ratings like HP, RPM, phase, and voltage.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Mississauga, ON: Out of Stock
Edmonton [eMotors #2], AB: In Stock (2)
Saint-Laurent, QC: In Stock

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Leeson: Hi-Torque and Extra Hi-Torque Motors (40)

117862.001/31725115V, 230V56 $264.74
117863.001/21725115V, 230V56 $310.59
117864.003/41725115V, 230V56 $346.09
113256.001/31725115V, 230V56 $347.57
110086.001/21725115V, 230V56 $360.88
117880.003/41725115V, 230V56C $362.36
117865.0011725115V, 230V56 $372.71
117881.0011725115V, 230V56C $391.94
113290.001/31725115V, 208-230V56C $408.20
110087.003/41725115V, 230V56 $421.52
117878.001/31725115V, 208-230V56C $438.95
110492.001/21725115V, 230V56C $467.36
116486.001/21725115V, 230V56C $486.59
110088.0011725115V, 230V56 $488.07
117867.0021725230V56HZ $517.65
110089.001 1/21725115V, 230V56H $541.31
110493.003/41725115V, 230V56C $547.23
113938.001 1/21725115V, 230V56HZ $553.15
116487.003/41725115V, 230V56C $564.98
110494.0011725115V, 208-230V56C $619.70
116488.0011725115V, 230V56C $640.41
110495.001 1/21725115V, 230V56C $701.05
116489.001 1/21725115V, 230V56HC $718.79
110090.0021725230V56HZ $777.95
131541.0021740115V, 208-230V182T $801.62
131542.0031740230V184T $881.48
131543.0051740230V184T $1,054.53
LM2480251755208-230V184T $1,183.20
131603.0031740230V184TC $1,195.03
131994.0031740230V184TC $1,220.18
140830.007 1/21800230V215TVZ $1,274.90
140707.007 1/21800230V215T $1,437.59
141434.007 1/21800230V215T $1,442.03
131602.0051740230V184TC $1,470.13
131995.0051740230V184TC $1,474.56
140706.00101800230V215T $1,499.71
141084.00103600230V215TZ $1,541.12
141311.00101800230V215TZ $1,609.15
140414.00101740230V215T $1,609.15
140816.00101800230V215TVZ $1,961.15

Description

Our complete line of single-phase Farm Duty/Agricultural Duty series of motors with extra high torque are designed and built for the tough applications found in the agricultural industry.

Feature

  • Gasketed capacitor cases and conduit box covers
  • Meets or exceeds NEMA service factors
  • Double sealed ball bearings
  • Condensate drains on general purpose Ag motors
  • Low temperature manual overload protected
  • High starting torque ratings

What is a Farm Duty Motor

Farm duty motors typically require a high starting torque and should be durable enough for harsh, outdoor environments. Often, farm duty motors come with a 1.15 service factor, allowing for short periods of overload. Because applications for ag motors are so diverse, manufacturers have developed specific motors for specific applications, such as auger drive motors or instant reverse motors.

Be sure to take note of the IP ratings for your motor, as this will determine what environment it’s intended for. For example, an IP44 motor can withstand water splashing on the motor and limits objects over 1mm from entering the motor. Verse an IP55 motor can withstand water projected from a low-pressure water jet and protects against dust.

These motors also typically come with sealed bearings to protect the motor from contaminants, which helps to extend the life of the motor.

Where to Buy Farm Duty Motors in Canada

eMotors Direct’s stock of farm duty electric motors are built tough for those harsh conditions of life on the farm. Operate your heavy machinery seasonally or around the clock, these workhorses can handle what you throw at them, with regular maintenance. Our farm duty motor category covers all the motors you need to keep your farm working, find electric auger duty motors, fan motors to dry your grain and cool your barn, and more.

Select a farm duty motor from the top brands you trust, like Baldor, Leeson, Century, Grain Guard, Nidec, Brook Crompton, and more. Meet your horsepower needs with options from fractional up to 100 HP. Choose a motor that works on either AC single-phase or three-phase power, or DC power if you don’t have access to the grid. Plus, keep your motor’s internals covered with different enclosure types; OAO, ODP, TEAO, TEFC, and TENV.

Shop farm duty electric motors online through our Canadian website today. With over 700 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

Need a hand finding the right motor for your application or legacy replacement? Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
7 1/2 HP
5.625 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
230V
Rated Motor Current
30.5 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
K
Nominal Efficiency
85.5
Nominal Power Factor
95
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
215T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
152
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
21.09"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6307
NDE Bearing
6206
Shaft Diameter
1.375"
Shaft Length
3.375"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
MEXICO
Warranty
1-Year
