Leeson 170142.00

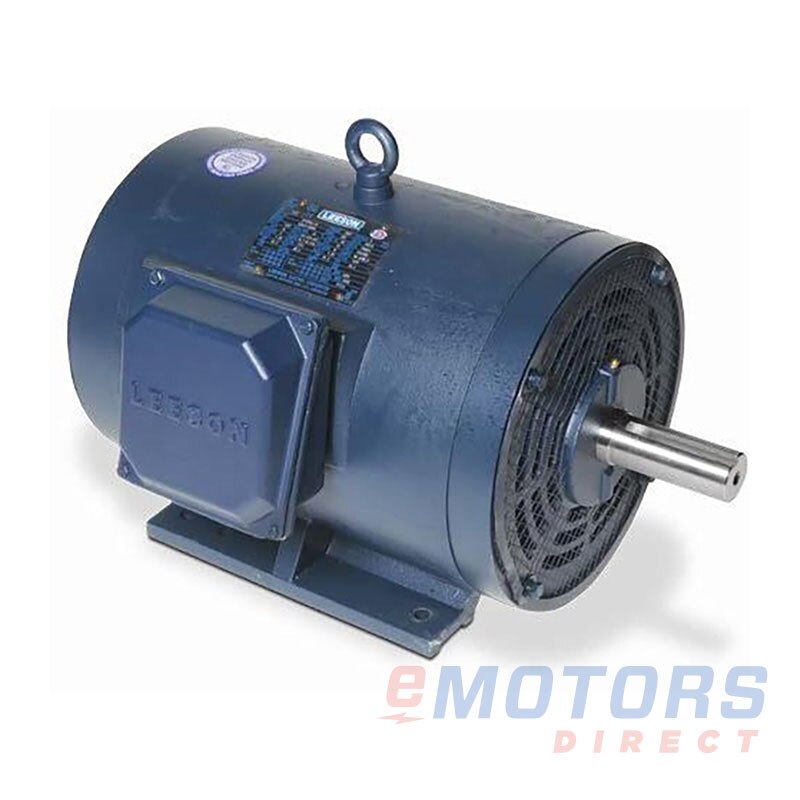

Leeson · Cast Iron WATTSaver Motor ODP
7 1/2HP 1800 213T ODP 230V|460V General Purpose
Catalog Number: 170142.00
HP
7 1/2
RPM
1800
Voltage
230V, 460V
Frame
213T
Phase
3
Enclosure
ODP
Material
Cast Iron
Mounting
Rigid

Overview

Leeson’s line of general purpose motors has hundreds of standard, off-the-shelf models for a variety of industrial applications. Choose from ODP, TEFC, or TENV enclosure options and single-phase or three-phase power input. Match your application with ¼ HP up to 200 HP and RPM from 900 to 3600.

DISCONTINUED

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (13)

Equivalent alternatives from other brands that have matching specifications to this product.

  • TECO-Westinghouse RD7/54

    7 1/2HP 1800 213T ODP 230V/460V General Purpose

    CAD $673.93
    Ships next business day

  • Marathon GT0016A

    7 1/2HP 1766 213T ODP 230V|460V General Purpose

    CAD $756.00
    Ships next business day

  • TECO-Westinghouse SDP7/54

    7 1/2HP 1800 213T ODP 230V/460V General Purpose

    CAD $775.32
    Ships next business day

  • Nidec D7V2B

    7 1/2 HP 1800 213T ODP 230V|460V General Purpose

    CAD $1,001.00
    In Stock (2 - 3 weeks)

  • Max Motion MQOP-27

    7 1/2HP 1770 213T ODP 208-230V|460V General Purpose

    CAD $1,044.28
    Ships next business day

  • Baldor EM3311T

    7 1/2HP 1770 213T ODP 208-230V|460V General Purpose

    CAD $1,365.25
    Ships next business day

  • Baldor EM3311T-G

    7 1/2 HP 1800 213T ODP 208-230V|460V General Purpose

    CAD $1,783.81
    Ships next business day

  • Marathon Y489

    7 1/2 HP 1800|900 213T ODP 460V General Purpose

    CAD $788.97
    Contact us for delivery dates

  • Nidec D7P2D

    7 1/2 HP 1765 213T Fr ODP 208-230V|460V General Purpose

    CAD $820.40
    Contact us for delivery dates

  • Marathon H955

    7 1/2 HP 1800 213T ODP 230V|460V General Purpose

    CAD $1,148.24
    Contact us for delivery dates

  • Baldor EHM3311T

    7 1/2HP 1800 213T ODP 208-230V|460V General Purpose

    CAD $1,215.80
    Contact us for delivery dates
  • New

    Marathon GT0016A-P

    7.5 HP 1800 213T ODP 230V/460V General Purpose

    CAD $1,280.92
    Contact us for delivery dates

  • Marathon U430B

    7 1/2 HP 1765 213T ODP 230V|460V General Purpose

    CAD $1,286.38
    Contact us for delivery dates

Leeson: Cast Iron WATTSaver Motor ODP (4)

170032.00203600230V, 460V254T $754.60
170610.0053600575V182T $1,183.18
170562.001253600575V404TS $3,896.20
171577.002001200460V447T $22,564.74

Description

LEESON’s 3-Phase, Premium efficient Wattsaver motors are designed to meet the new motor efficiency mandates. This product line includes Rigid- base and C-face designs in ODP enclosures. In addition, we carry a line of Premium Efficient Severe Duty motors as well as Premium Efficient General Purpose and Fan Duty single-phase motors.

Feature

  • Inverter Rated “IRIS®” insulation system
  • Normally closed thermostats – 1 per phase (3-phase motors)
  • Three-year warranty
  • UL Recognized and CSA Certified

eMotors Direct’s stock of general purpose electric motors are for use in various applications across numerous industries. Very similar to a car’s base model, these motors don’t have all the bells and whistles. You won’t find specialized shafts and bearings, specific mounting equipment, or over current and overload protections. Therefore, general purpose motors can be used for many purposes.

Our general purpose motor category covers many types of electric motors like single-phase and three-phase general purpose AC motor, for example. Choose a motor with a frame made from materials like cast iron, rolled steel, aluminum, and stainless steel. Find horsepower abilities from fractional up to 600. Choose from different enclosure types, like open Air Over (OAO), Open Drip Proof (ODP), Totally Enclosed Air Over (TEAO), Totally Enclosed Fan Cooled (TEFC), and Totally Enclosed Non-Ventilated (TENV). All from your most trusted brands; Baldor, Century, Leeson, Marathon, Max Motion, Nidec, TECO-Westinghouse, and WEG.

Shop general purpose electric motors online through our Canadian website today. With over 8500 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

Need a hand finding the right motor for your application or legacy replacement?  Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
7 1/2 HP
5.6 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
230V, 460V
Rated Motor Current
19.8/9.9 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
20.6
Service Factor
1.15
KVA Code
J
Nominal Efficiency
91
Nominal Power Factor
78
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
213T
Enclosure
ODP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
160
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
16.38"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6308
NDE Bearing
6208
Shaft Diameter
1.375"
Shaft Length
3.375"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
1-Year
