Leeson M1135044.00

Leeson · Right Angle - DC Gearmotors

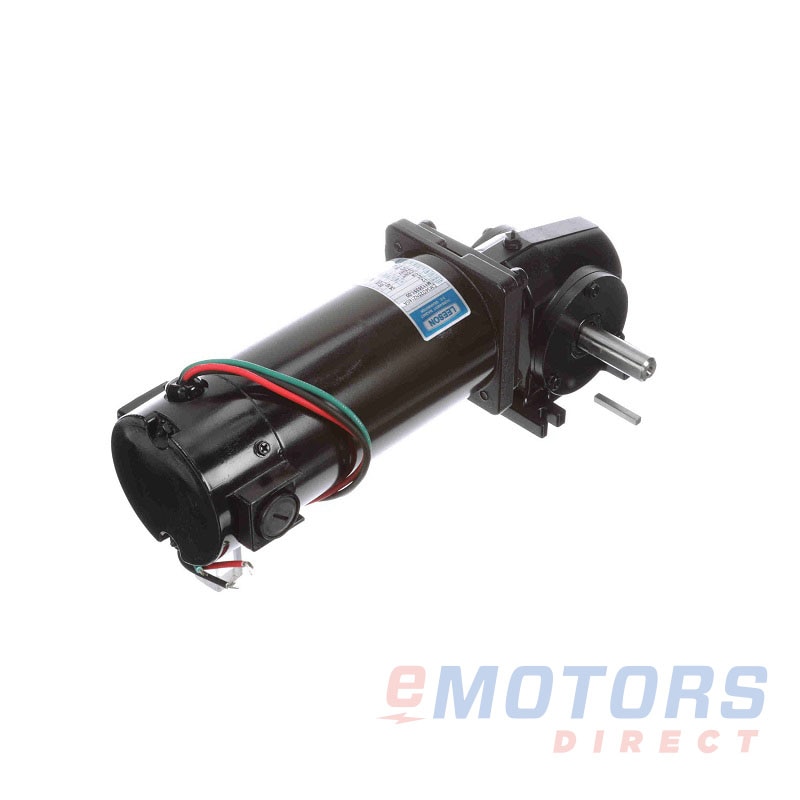

1/4 HP 20:1 125 RPM 90V TENV GEARMOTOR
Catalog Number: M1135044.00
Alternative Number: Bodine 4136
HP
1/4
Ratio
20:1
Voltage
90V
Output RPM
125
Max Output Torque
90 lbs-in

Product-line overview

They are designed for reliability and long life with parallel shaft models ranging from 10 through 1100-inch pounds of torque and right-angle models ranging from 5 through 220 inch-pounds of torque.

CAD$919.33
Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: In Stock
Mississauga, ON: Out of Stock
Edmonton [eMotors #2], AB: Out of Stock
Langley, BC: In Stock

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Description

LEESON right angle and parallel shaft gearmotors are available from stock in both AC and DC designs. They are designed for reliability and long life with parallel shaft models ranging from 10 through 1100-inch pounds of torque and right-angle models ranging from 5 through 220 inch-pounds of torque. Right angle designs feature reversible output shafts, for easy field conversion from left hand to right hand output.

Features

  • Worm-type right-angle gearing features hardened, steel worm with bronze worm wheel for long life and quiet operation
  • Precision machined aluminum gear housing
  • Lubrication is permanent with an oil bath
  • Output shaft is field interchangeable from left hand to right hand style by reassembly

eMotors Direct’s stock of gearmotors are for use in various applications across industries like agriculture, food production, and more. They are combinations of motors and gearing all housed within one compact enclosure, ideal for applications where a small footprint, high-torque, and low-speeds are required. You’ll often find electric gear motors moving medical laboratory equipment, arcade games, agricultural equipment like sprayers and spreaders, and keeping production lines efficient in food manufacturing plants.

Our gearmotor category covers a variety of inline and right-angle gear motors. Select from gearing ratios starting at 5:1 up to 900:1, output RPMs from zero up to 600, and totally enclosed fan cooled (TEFC) or totally enclosed non-ventilated (TENV) enclosure options. Choose the correct input for your source power; DC, single-, or three-phase. These Leeson gear motors are available in fractional horsepower ratings from 1/40 up to ½ and various voltage input ratings.

Shop DC and AC gear motors online through our Canadian website today. With over 210 SKUs and convenient filtering options, you can easily find the motor and gearing solution you’re searching for.

Need a hand finding the right gearmotor for your application or legacy replacement?  Contact our motor experts today. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
1/4 HP
0.19 kW
Rated Motor Speed
125 RPM
Rated Motor Voltage
90V
Rated Motor Current
2.3 AMP
Phase
DC
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
39.6
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
-
Connection
-
Start Capacitor
-
Run Capacitor
-
Gear Data
Ratio
20:1
Output Type
Interchangeable Shaft
Output Orientation
-
Output Shaft Diameter
5/8"
Output RPM
125
Max Output Torque
90 lbs-in
Max Overhung Load
235 lbs
Case Material
Aluminum
Type of Oil
-
General Data
Category
Gearing
Frame Size
34
Enclosure
TENV
Mounting
Special
Approximate Weight
15.5lb
Frame Material
Aluminum
C-Dimension
12.64"
NEMA Design
-
Degree of Protection (IP)
NOT
Insulation Class
H3
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F3
Removable Feet
No
Ambient Temperature
40°C
Full Load Temperature Rise
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
Mechanical Data
DE Bearing
6201-13
NDE Bearing
6201-13
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
1-Year
