Leeson M1145033.00

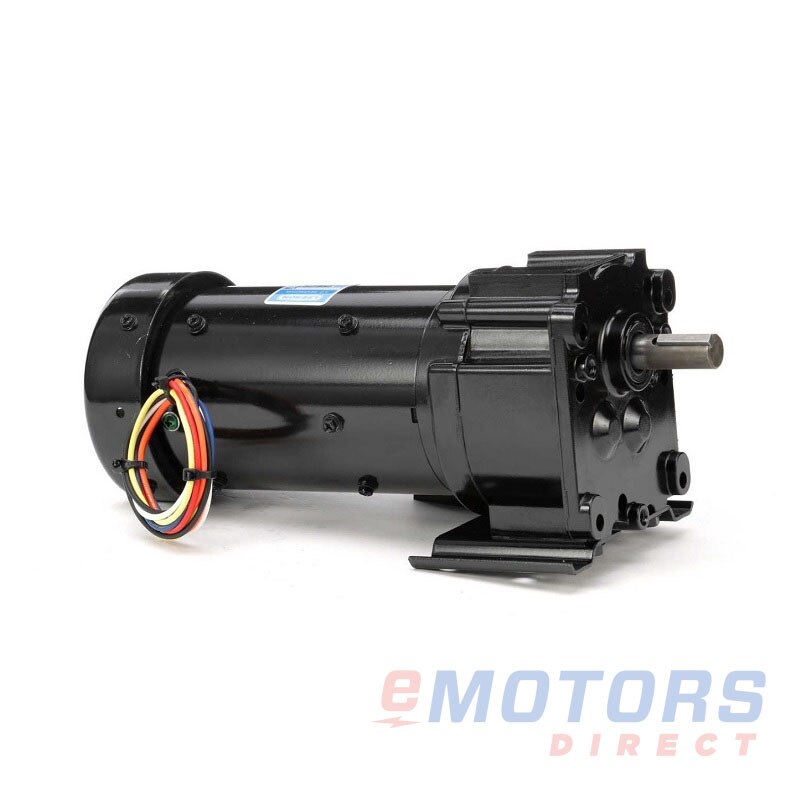

1/6 HP 29:1 60 RPM 115V|230V TEFC GEARMOTOR

Catalog Number: M1145033.00

Overview

They are designed for reliability and long life with parallel shaft models ranging from 10 through 1100-inch pounds of torque and right-angle models ranging from 5 through 220 inch-pounds of torque.

Need it Now?

Get in contact with one of our motor experts to discuss your project parameters today.

Returns & Refund Policy

Product Line
More Information
Technical Specifications
Downloads

Description

LEESON right angle and parallel shaft gearmotors are available from stock in both AC and DC designs. They are designed for reliability and long life with parallel shaft models ranging from 10 through 1100-inch pounds of torque and right-angle models ranging from 5 through 220 inch-pounds of torque. Right angle designs feature reversible output shafts, for easy field conversion from left hand to right hand output.

Features

Permanent split capacitor design rated for 115/230VAC 60/50 HZ input
Precision machined in-line steel gears
First stage steel helical gear followed by spur-type gears
Lubrication is permanent semi-fluid grease, reducing possibility of leakage

eMotors Direct’s stock of gearmotors are for use in various applications across industries like agriculture, food production, and more. They are combinations of motors and gearing all housed within one compact enclosure, ideal for applications where a small footprint, high-torque, and low-speeds are required. You’ll often find electric gear motors moving medical laboratory equipment, arcade games, agricultural equipment like sprayers and spreaders, and keeping production lines efficient in food manufacturing plants.

Our gearmotor category covers a variety of inline and right-angle gear motors. Select from gearing ratios starting at 5:1 up to 900:1, output RPMs from zero up to 600, and totally enclosed fan cooled (TEFC) or totally enclosed non-ventilated (TENV) enclosure options. Choose the correct input for your source power; DC, single-, or three-phase. These Leeson gear motors are available in fractional horsepower ratings from 1/40 up to ½ and various voltage input ratings.

Shop DC and AC gear motors online through our Canadian website today. With over 210 SKUs and convenient filtering options, you can easily find the motor and gearing solution you’re searching for.

Need a hand finding the right gearmotor for your application or legacy replacement? Contact our motor experts today. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data

Rated Motor Output Power

1/6 HP
0.12 kW

Rated Motor Speed

60 RPM

Rated Motor Voltage

115V, 230V

Rated Motor Current

3|1.5 AMP

Phase

Poles

Locked Rotor Current

Fl Current @ 208V

Service Factor

KVA Code

Nominal Efficiency

Nominal Power Factor

Leads (Qty, Size)

Frequency

Connection

Start Capacitor

Run Capacitor

Gear Data

Ratio

29:1

Output Type

Parallel Shaft

Output Orientation

Output Shaft Diameter

5/8"

Output RPM

Max Output Torque

157 lbs-in

Max Overhung Load

268 lbs

Case Material

Rolled Steel

Type of Oil
