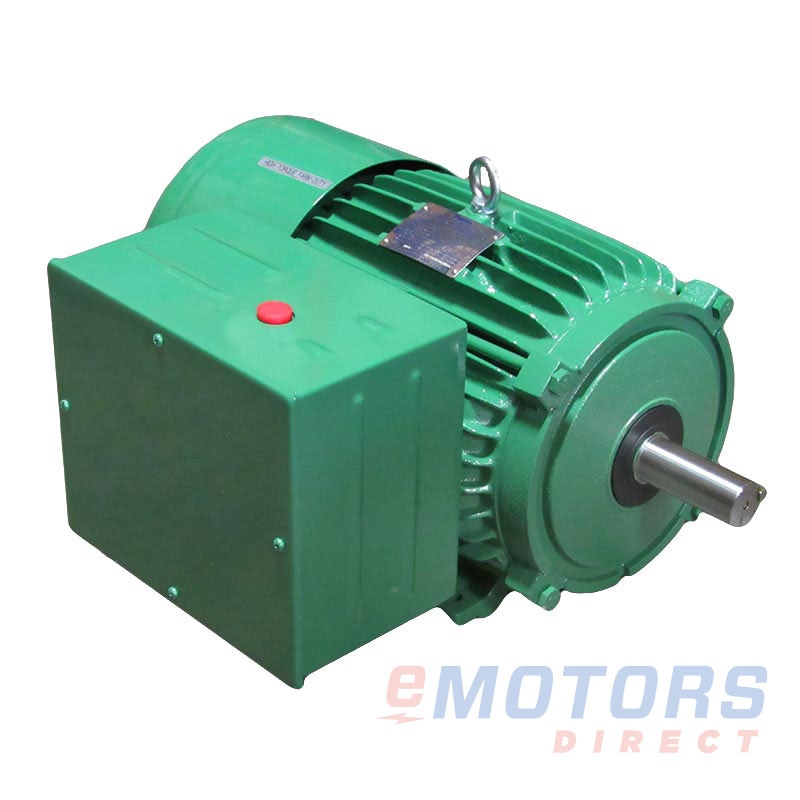

TECO-Westinghouse FD1/54

TECO Westinghouse · Farm Duty - High Efficiency TEFC
1 1/2 HP 1800 145T TEFC 115V|230V Farm Duty
Catalog Number: FD1/54
Alternative Number: S1/54
HP
1 1/2
RPM
1800
Voltage
115V, 230V
Frame
145T
Phase
1
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Product-line overview

Introducing the TECO Westinghouse Farm Duty Motor Line, a rugged and reliable solution engineered to meet the diverse demands of agricultural and industrial settings. Specifically designed for a variety of applications including fans and blowers, pumps, compressors, farm equipment, and machine tools, this motor line is a versatile workhorse for the modern farm. With a power range from 1/3 to 10 HP, these motors are tailored to handle the unique challenges of farm environments. Featuring a Totally Enclosed IP44 design, they provide robust protection against dust and moisture, offering longevity and dependable performance. The horizontal F1 mount facilitates straightforward installation across different setups. Operating at 60Hz, with voltage options of 115/230V or 230V in single-phase configurations, these motors offer flexibility to adapt to varying electrical systems. With a consistent speed of 1800 RPM, the TECO Westinghouse Farm Duty Motor Line is the dependable choice for powering essential equipment on the farm and in machine tool applications, combining durability with optimal performance.

Design Features:

  • 1.15 Service Factor
  • 40˚C Ambient
  • Continuous Duty
  • Max Elevation 3300ft
  • High Torque
  • Class B Insulation up to 3 HP; Class F Insulation 3-10 HP
  • Class B Temperature Rise
  • Capacitor Start, Induction Run .33-1.5 HP; Capacitor Start, Capacitor Run 2-10 HP

Mechanical Features:

  • Shielded Bearings
  • Multemp SRL Grease
  • Aluminum Rotor
  • Cast-Iron Frame and End Brackets 1.5-10 HP, Rolled Steel for Others
  • Rolled Steel Fan Cover and Terminal Box
  • Plastic Fan
  • Grounding Terminal Inside Main Terminal Box
  • Paint System: Phenolic Rust Proof Base with Polyurethane Top Coat
  • Rubber Flinger on DE
  • Phenolic Alkyd Resin Varnish
  • Manual Reset Overload

CSA approved, UL Recognized

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: In Stock
Lachine, QC: In Stock
Edmonton [eMotors #2], AB: Out of Stock
Cambridge, ON: In Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Description

TECO-Westinghouse farm duty motors are specifically designed for applications requiring high starting torque. Some standard features such as bi-directional rotation, starting capacitors and manual overload protection provide for diverse applications indoors or outdoors.

Feature

  • Available from 1/3-10 HP
  • High starting torque design for demanding applications
  • Rugged cast-iron frame for 145T through 215T, rolled steel frame on 56 frames
  • Class B insulation on 56-182T frames; Class F insulation on 184-215T
  • Three-year warranty
Electrical Data
Rated Motor Output Power
1 1/2 HP
1.12 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
22.0/11.0 AMP
Phase
1
Poles
4
Locked Rotor Current
116.00/58.00 AMP
Fl Current @ 208V
12.21 AMP
Service Factor
1.15
KVA Code
-
Nominal Efficiency
70
Nominal Power Factor
63
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
145T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
-
NEMA Design
-
Degree of Protection (IP)
IP44
Insulation Class
-
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
-40 to 40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205ZZ
NDE Bearing
6205ZZ
Shaft Diameter
0.875"
Shaft Length
2.25"
Grease Type
Multemp SRL
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
3-Year
