TECO-Westinghouse RF0/52

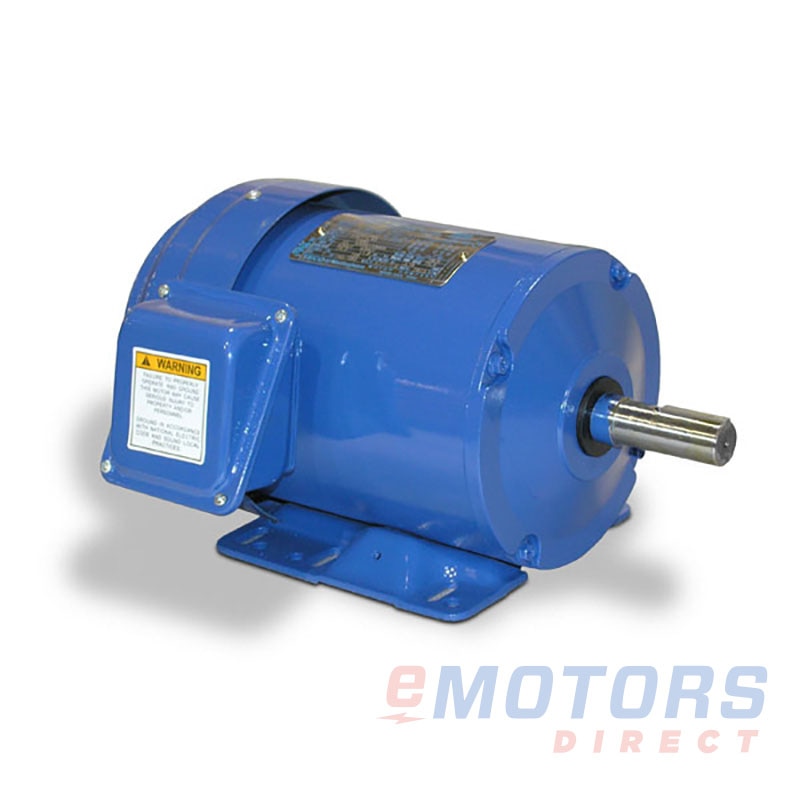

TECO Westinghouse · Rolled Steel TEFC Premium
1/2HP 3600 56 TEFC 230V/460V General Purpose
Catalog Number: RF0/52
Alternative Number: GH0/52
HP
1/2
RPM
3600
Voltage
230V, 460V
Frame
56
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Overview

The Rolled Steel TEFC is a durable, lightweight, feature-packed machine designed to tackle all your commercial duty requirements. From Process and Manufacturing to HVAC and Compressors this NEMA premium efficient inverter duty motor has you covered.

CAD$211.72
Contact us for delivery dates

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (4)

Equivalent alternatives from other brands that have matching specifications to this product.

  • Nidec T12S1A

    1/2 HP 3450 56 Fr TEFC 208-230V|460V General Purpose

    CAD $235.20
    In Stock (2 - 3 weeks)

  • WEG TF.50402W01DOE

    1/2 HP 3600 56 TEFC 230V|460V General Purpose

    CAD $341.87
    Ships next business day
  • New

    Brook Crompton BF2N.50V2

    1/2HP 3600 56 TEFC 230V|460V General Purpose

    CAD $166.60
    Contact us for delivery dates

  • Baldor M3537

    1/2 HP 3450 56 TEFC 230V|460V General Purpose

    CAD $407.75
    Contact us for delivery dates

TECO Westinghouse: Rolled Steel TEFC Premium (234)

RF0/22-C1/43600230V, 460V56C $361.35
RF0/24-C1/41800230V, 460V56C $365.32
RF0/32-C1/33600230V, 460V56C $371.29
RF0/34-C1/31800230V, 460V56C $377.25
RF0/52-C1/23600230V, 460V56C $385.20
RF0/54-C1/21800230V, 460V56C $392.16
RF0/72-C3/43600230V, 460V56C $396.14
RF0/26-C1/41200230V, 460V56C $396.14
RF0/74-C3/41800230V, 460V56C $399.12
RF00125-56-C13600575V56C $413.03
RF0012-56-C13600230V, 460V56C $413.03
RF0/36-C1/31200230V, 460V56C $415.02
RF0/56-C1/21200230V, 460V56C $456.77
RF00145-56-C11800575V56C $459.75
RF0014-56-C11800230V, 460V56C $459.75
RF1/525-56-C1 1/23600575V56C $494.83
RF1/52-56-C1 1/23600230V, 460V56C $494.83
RF00225-56-C23600575V56C $525.64
RF0022-56-C23600230V, 460V56C $525.64
RF0/76-C3/41200230V, 460V56C $527.63
RF0012-C13600230V, 460V143TC $550.61
RF1/545-56-C1 1/21800575V56C $559.44
RF1/54-56-C1 1/21800230V, 460V56C $559.44
RF0014-C11800230V, 460V143TC $560.55
RF1/54-C1 1/21800230V, 460V145TC $565.52
RF00325-56-C33600575V56C $572.36
RF0032-56-C33600230V, 460V56C $572.36
RF1/52-C1 1/23600230V, 460V143TC $573.47
RF00165-56-C11200575V56C $577.33
RF0016-56-C11200230V, 460V56C $577.33
RF00245-56-C21800575V56C $590.25
RF0024-56-C21800230V, 460V56C $590.25
RF0024-C21800230V, 460V145TC $603.29
RF0022-C23600230V, 460V145TC $613.23
RF0016-C11200230V, 460V145TC $640.07
RF1/56-C1 1/21200230V, 460V182TC $704.60
RF1/565-C1 1/21200575V182TC $704.60
RF0034-C31800230V, 460V182TC $714.54
RF0032-C33600230V, 460V182TC $714.54
RF0026-C21200230V, 460V184TC $769.21
RF0054-C51800230V, 460V184TC $783.12
RF0052-C53600230V, 460V184TC $807.97
RF7/52-C7 1/23600230V, 460V213TC $1,107.43
RF7/525-C7 1/23600575V213TC $1,107.43
RF7/54-C7 1/21800230V, 460V213TC $1,108.42
RF7/545-C7 1/21800575V213TC $1,108.42
RF0036-C31200230V, 460V213TC $1,113.39
RF0102-C103600230V, 460V215TC $1,240.63
RF0104-C101800230V, 460V215TC $1,255.54
RF0056-C51200230V, 460V215TC $1,259.51

Description

The Rolled Steel TEFC is a durable, lightweight, feature-packed machine designed to tackle all your commercial duty requirements. From Process and Manufacturing to HVAC and Compressors this NEMA premium efficient inverter duty motor has you covered.

Feature

  • Available from 1/4-10HP; 2, 4 & 6 Pole
  • 56/56C Frame Available 1/4-3HP
  • NEMA Premium Efficiency
  • Rolled Steel Frame with Cast-Iron End Brackets
  • Inverter Duty Speed Range 10:1 CT and 20:1 VT

eMotors Direct’s stock of general purpose electric motors are for use in various applications across numerous industries. Very similar to a car’s base model, these motors don’t have all the bells and whistles. You won’t find specialized shafts and bearings, specific mounting equipment, or over current and overload protections. Therefore, general purpose motors can be used for many purposes.

Our general purpose motor category covers many types of electric motors like single-phase and three-phase general purpose AC motor, for example. Choose a motor with a frame made from materials like cast iron, rolled steel, aluminum, and stainless steel. Find horsepower abilities from fractional up to 600. Choose from different enclosure types, like open Air Over (OAO), Open Drip Proof (ODP), Totally Enclosed Air Over (TEAO), Totally Enclosed Fan Cooled (TEFC), and Totally Enclosed Non-Ventilated (TENV). All from your most trusted brands; Baldor, Century, Leeson, Marathon, Max Motion, Nidec, TECO-Westinghouse, and WEG.

Shop general purpose electric motors online through our Canadian website today. With over 8500 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

Need a hand finding the right motor for your application or legacy replacement?  Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
1/2 HP
0.38 kW
Rated Motor Speed
3600 RPM
Rated Motor Voltage
230V, 460V
Rated Motor Current
1.6/0.8 AMP
Phase
3
Poles
2
Locked Rotor Current
10.00/5.00 AMP
Fl Current @ 208V
1.74 AMP
Service Factor
1.15
KVA Code
J
Nominal Efficiency
73.4
Nominal Power Factor
81.5
Leads (Qty, Size)
9
Frequency
60 Hz
Connection
Wye
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
20:1
3
Constant Torque
10:1
6
General Data
Frame
56
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
21lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
-
NEMA Design
B
Degree of Protection (IP)
IP44
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal
Ambient Temp
-40 to 40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6204ZZ
NDE Bearing
6203ZZ
Shaft Diameter
-
Shaft Length
-
Grease Type
Multemp SRL
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
TAIWAN
Warranty
3-Year
