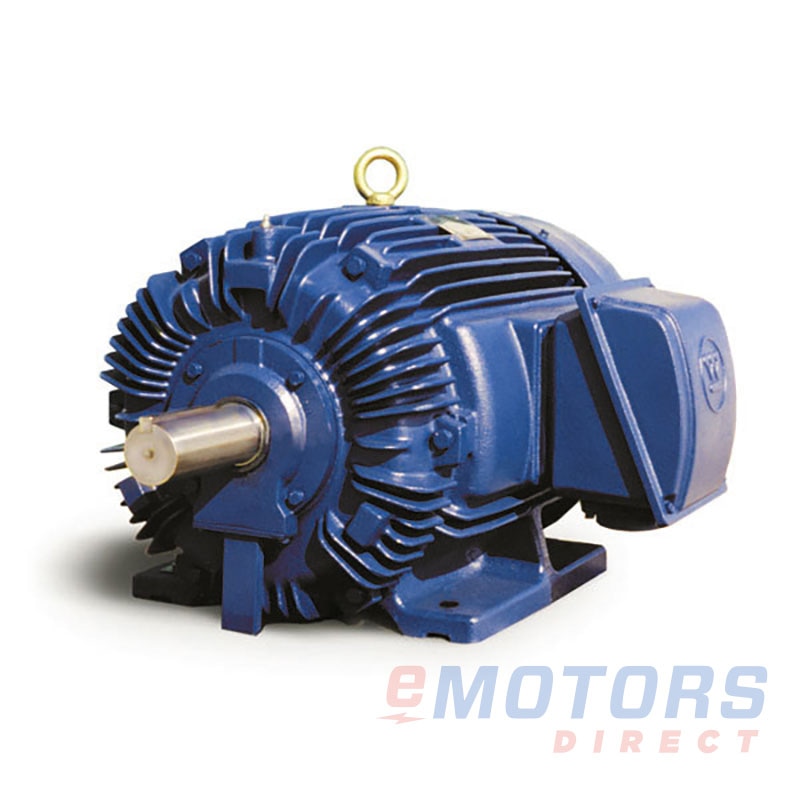

TECO-Westinghouse TR0256

TECO Westinghouse · Optim Oilwell
25HP 1200 324T TEFC 460V Oilwell
Catalog Number: TR0256
Alternative Number: T25/20/1506TE4
HP
25
RPM
1200
Voltage
460V
Frame
324T
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid

Product-line overview

Introducing the TECO Westinghouse Optim Oilwell Motor, a robust and purpose-built line of motors catering to a diverse range of applications, especially those demanding NEMA Design D torques. With a power range spanning from 3.5 to 125 HP, this motor line is a dependable choice for various industrial settings requiring precision and power. Primarily designed for oil well pump applications, it offers reliable and efficient operation in the demanding conditions of the oil and gas industry. Featuring a stable 1200 RPM and a horizontal F2 mount, the Optim Oilwell Motor offers flexibility in installation and seamless integration into existing systems. Operating at 60Hz with a voltage of 460V, this motor meets the stringent requirements of oilfield operations. The totally enclosed, IP54 design adds an extra layer of protection, making it well-suited for harsh and challenging environments. Choose the TECO Westinghouse Optim Oilwell Motor for unparalleled performance and durability, meeting the specific demands of applications requiring NEMA Design D torques, especially in the challenging realm of oil well pumps.

Design Features:

  • 1.15 Service Factor
  • Class F Insulation
  • 40˚C Ambient
  • Triple HP Ratings
  • Continuous Duty
  • NEMA Design D
  • Max Elevation 3300ft

Mechanical Features:

  • Shielded Bearings Frames 140T-280T and Open Bearings with Regreaseable Provisions Frames 280TS, 320T and Larger
  • Polyrex EM Grease in all Regreaseable Bearings, Multemp SRL Grease in Shielded Bearings
  • Aluminum Rotor
  • Cast-Iron Frame, Fan Cover, Conduit Box and End Brackets
  • Non-Sparking Plastic Fan
  • Number of Leads 460V: 12 Leads
  • Solderless Lug Terminals on All Leads
  • Grounding Terminal Inside Main Terminal Box and on Frame
  • Interchangeable F1 and F2 mounting
  • Paint System: Phenolic Rust Proof Base with Lacquer Top Coat
  • Stainless Steel Nameplate
  • Rubber Flinger on DE up to 280T; Steel Flinger on Both Ends 320T and Larger
  • Phenolic Alkyd Resin Varnish with Red Varnish Coating
  • Klixon 9700K Thermostats – 1 per phase

CSA certified.

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: In Stock
Edmonton [eMotors #2], AB: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Description

TheOPTIM Oilwell triple rate motor is designed specifically with the oil industry in mind. These motors have high slip and high torque that pump jack applications demand.

Feature

  • 3.5-100HP, Triple HP Ratings
  • 1200 RPM
  • Horizontal F2 Mount
  • 460V Only
  • NEMA Design D
Electrical Data
Rated Motor Output Power
25 HP
18.75 kW
Rated Motor Speed
1200 RPM
Rated Motor Voltage
460V
Rated Motor Current
30.5 AMP
Phase
3
Poles
6
Locked Rotor Current
183 AMP
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
87
Nominal Power Factor
88
Leads (Qty, Size)
1
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
324T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
1 Speed
Approximate Weight
635lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
-
NEMA Design
D
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F2
Removable Feet
No
Orientation
Horizontal
Ambient Temp
-40 to 40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6312
NDE Bearing
6212
Shaft Diameter
-
Shaft Length
-
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
3-Year
