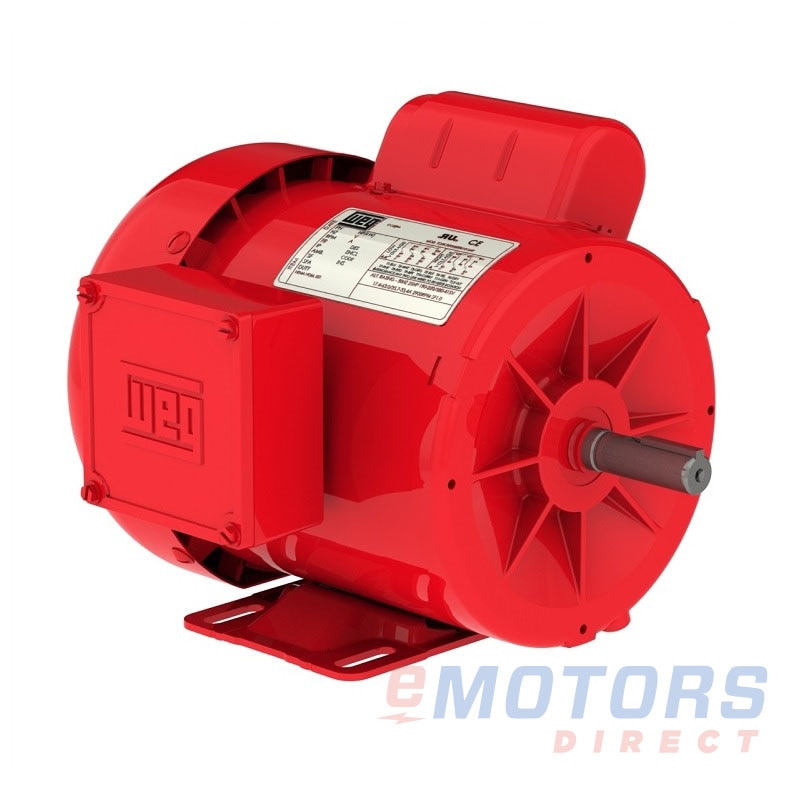

WEG FD.75104

WEG · Single Phase Farm Duty
3/4 HP 1800 56 TEFC 115V|230V Farm Duty
Catalog Number: FD.75104
Alternative Number: 10064792
HP
3/4
RPM
1800
Voltage
115V, 230V
Frame
56
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid
CAD$372.80
Contact us for delivery dates

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (9)

Equivalent alternatives from other brands that have matching specifications to this product.

  • Nidec FD34CM2P

    3/4 HP 1725 56 Fr TEFC 115V|230V Farm Duty

    CAD $253.40
    Ships next business day

  • Leeson 117864.00

    3/4 HP 1725 56 TEFC 115V|208-230V Farm Duty

    CAD $327.60
    Ships next business day

  • TECO-Westinghouse FD0/74

    3/4 HP 1800 56 TEFC 115V|230V Farm Duty

    CAD $389.65
    Ships next business day

  • Leeson 110087.00

    3/4 HP 1725 56 TEFC 115V|208-230V Farm Duty

    CAD $399.00
    Ships next business day

  • Marathon M009087.00

    3/4HP 1800 115/208-230V 56 TEFC

    CAD $414.40
    Ships next business day

  • Baldor FDL3507M

    3/4 HP 1725 56 TEFC 115V|230V Farm Duty

    CAD $703.21
    Ships next business day

  • Marathon F103

    3/4HP 1725 56 TEFC 115V|230V Farm Duty

    CAD $355.60
    Contact us for delivery dates

  • Century C520

    3/4 HP 1725 56 TEFC 115V|208-230V Farm Duty

    CAD $695.06
    Contact us for delivery dates

  • Baldor IR3507M

    3/4 HP 1800 56 TEFC 115V/208-230V Farm Duty

    CAD $766.46
    Contact us for delivery dates

WEG: Single Phase Farm Duty (39)

FD.331041/31750115V, 230V56 $287.08
FD.501041/21750115V, 230V56 $300.04
FD.33104C1/31750115V, 230V56C $348.88
FD.50104C1/21750115V, 230V56C $361.84
FD.751043/41745115V, 230V56 $372.80
FD00010411750115V, 230V56 $376.79
FD000104S11750115V, 230V143T $396.73
FD.75104C3/41745115V, 230V56C $434.60
FD000104C11750115V, 230V56C $438.59
FD0011041 1/21750115V, 230V56H $440.59
FD001104S1 1/21750115V, 230V145T $460.52
FD001104C1 1/21750115V, 230V56HC $502.39
FD000104SC11750115V, 230V143TC $512.36
FD00210421750115V, 230V56H $555.22
FD002104S21750115V, 230V145T $562.20
FD001104SC1 1/21750115V, 230V145TC $576.15
FD002104SC21750115V, 230V145TC $624.00
FD002104C21750115V, 230V56HC $670.85
FD002104W21725115V, 230V182T, 184T $753.58
FD003104W31740115V, 230V182T, 184T $848.28
FD002104WC21725115V, 230V182TC, 184TC $883.16
FD00510451730230V184T $909.08
FD003104WC31740115V, 230V182TC, 184TC $977.86
FD003104W2231745115V, 230V182T, 184T $999.75
FD005104C51730230V184TC $1,038.67
FD005104W2251730230V182T, 184T $1,071.42
FD005104W51730230V215TZ, 213TZ $1,167.25
FD005104WC51730230V213TCZ, 215TCZ $1,312.79
FD007104S7 1/21730230V215TZ $1,426.42
FD0071047 1/21730230V215T $1,426.42
FD007104SC7 1/21730230V215TCZ $1,571.95
FD007104C7 1/21730230V215TC $1,571.95
FD007104W227 1/21750230V213T, 215T $1,681.14
FD010104101720230V215T $1,690.57
FD010104C101720230V215TC $1,836.11
FD010104W22101740230V213T, 215T $1,992.46
FD01210412 1/21730230V215T $2,130.16
FD012104C12 1/21730230V215TC $2,275.69
FD012104W2212 1/21740230V213T, 215T $2,510.55

Description

WEGCompressor DutyMotors are designed for compressors, pumps and other applications requiring high starting and breadkdown torque.

Feature

  • Single-phase, 4 poles, 60HZ, Service Factor 1.15
  • Voltage:115/230V (up to frame 145T), 230V (above frame 145T)
  • Totally Enclosed Fan Cooled (IP55)
  • Capacitor Start
  • Run capacitor for 2HP and up
  • V Ring in both endshields
  • Manual thermal overload protection
  • High starting torque
  • Insulation class:
    • ‘B’ up to frame 145T
    • ‘F’ for frame 182/4T and up
  • Ball bearings
  • Continuous Duty (S1), 40°C ambient
  • Paint: RAL 3002 (Red)
  • WEG paint plan: 207A

eMotors Direct’s stock of farm duty electric motors are built tough for those harsh conditions of life on the farm. Operate your heavy machinery seasonally or around the clock, these workhorses can handle what you throw at them, with regular maintenance. Our farm duty motor category covers all the motors you need to keep your farm working, find electric auger duty motors, fan motors to dry your grain and cool your barn, and more.

Select a farm duty motor from the top brands you trust, like Baldor, Century, Grain Guard, WEG, and more. Meet your horsepower needs with options from fractional up to 100 HP. Choose a motor that works on either AC single-phase or three-phase power, or DC power if you don’t have access to the grid. Plus, keep your motor’s internals covered with different enclosure types; OAO, ODP, TEAO, TEFC, and TENV.

Shop farm duty electric motors online through our Canadian website today. With over 700 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

Need a hand finding the right motor for your application or legacy replacement?  Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
3/4 HP
0.55 kW
Rated Motor Speed
1745 RPM
Rated Motor Voltage
115V, 230V
Rated Motor Current
10.6/5.3 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
68.5
Nominal Power Factor
66
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
27.8lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
11.102"
NEMA Design
-
Degree of Protection (IP)
IP55
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6203-ZZ
NDE Bearing
6202-ZZ
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
BRAZIL
Warranty
2-Year
