WEG FD007104S

WEG · Single Phase Farm Duty

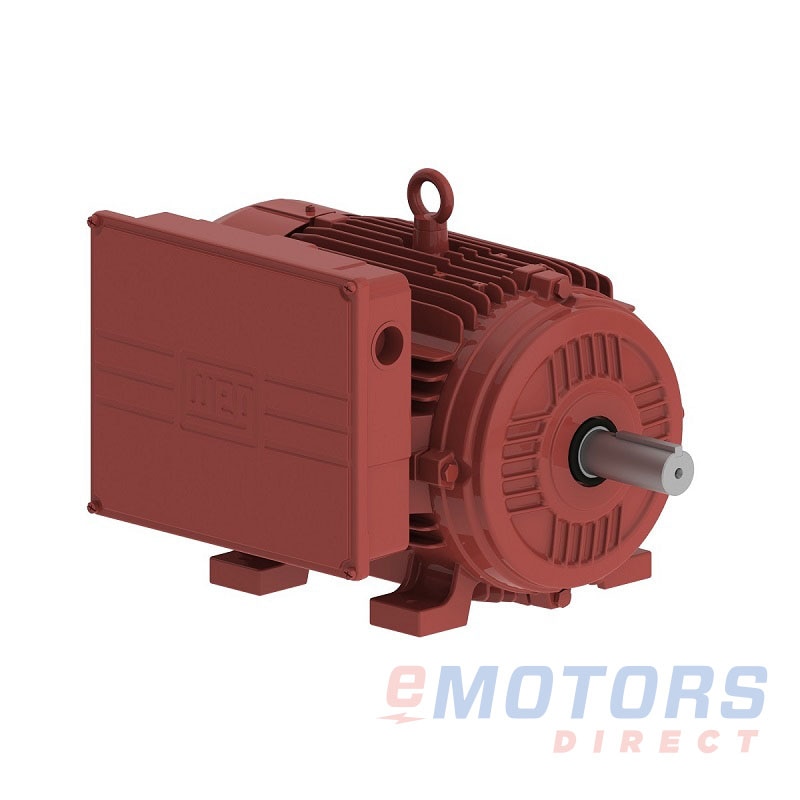

7 1/2 HP 1800 215TZ TEFC 230V Farm Duty
Catalog Number: FD007104S
Alternative Number: 10676488
HP
7 1/2
RPM
1800
Voltage
230V
Frame
215TZ
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid
CAD$1,426.42
Ships next business day

Available for Delivery

Delivery Estimate

To get accurate delivery estimates, please enter your postal code.

Stock Locations

North York, ON: In Stock
Pointe-Claire, QC: Out of Stock
Winnipeg, MB: Out of Stock

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (5)

Equivalent alternatives from other brands that have matching specifications to this product.

  • Leeson 141427.00

    7 1/2HP 1750 215TZ TEFC 230V Farm Duty

    CAD $1,331.40
    Ships next business day

  • Marathon Z115

    7 1/2HP 1750 215TZ TEFC 230V Farm Duty

    CAD $1,379.00
    Ships next business day

  • Nidec FDU7CM2K21Z

    7 1/2 HP 1715 215TZ Fr TEFC 230V Farm Duty

    CAD $1,474.20
    Ships next business day

  • Leeson 141392.00

    7 1/2HP 1760 215TZ TEFC 230V Farm Duty

    CAD $1,349.60
    Contact us for delivery dates

  • Century K301M2

    7 1/2HP 1740 215TZ TEFC 230V Farm Duty

    CAD $1,675.80
    Contact us for delivery dates

WEG: Single Phase Farm Duty (39)

FD.331041/31750115V, 230V56 $287.08
FD.501041/21750115V, 230V56 $300.04
FD.33104C1/31750115V, 230V56C $348.88
FD.50104C1/21750115V, 230V56C $361.84
FD.751043/41745115V, 230V56 $372.80
FD00010411750115V, 230V56 $376.79
FD000104S11750115V, 230V143T $396.73
FD.75104C3/41745115V, 230V56C $434.60
FD000104C11750115V, 230V56C $438.59
FD0011041 1/21750115V, 230V56H $440.59
FD001104S1 1/21750115V, 230V145T $460.52
FD001104C1 1/21750115V, 230V56HC $502.39
FD000104SC11750115V, 230V143TC $512.36
FD00210421750115V, 230V56H $555.22
FD002104S21750115V, 230V145T $562.20
FD001104SC1 1/21750115V, 230V145TC $576.15
FD002104SC21750115V, 230V145TC $624.00
FD002104C21750115V, 230V56HC $670.85
FD002104W21725115V, 230V182T, 184T $753.58
FD003104W31740115V, 230V182T, 184T $848.28
FD002104WC21725115V, 230V182TC, 184TC $883.16
FD00510451730230V184T $909.08
FD003104WC31740115V, 230V182TC, 184TC $977.86
FD003104W2231745115V, 230V182T, 184T $999.75
FD005104C51730230V184TC $1,038.67
FD005104W2251730230V182T, 184T $1,071.42
FD005104W51730230V215TZ, 213TZ $1,167.25
FD005104WC51730230V213TCZ, 215TCZ $1,312.79
FD007104S7 1/21730230V215TZ $1,426.42
FD0071047 1/21730230V215T $1,426.42
FD007104SC7 1/21730230V215TCZ $1,571.95
FD007104C7 1/21730230V215TC $1,571.95
FD007104W227 1/21750230V213T, 215T $1,681.14
FD010104101720230V215T $1,690.57
FD010104C101720230V215TC $1,836.11
FD010104W22101740230V213T, 215T $1,992.46
FD01210412 1/21730230V215T $2,130.16
FD012104C12 1/21730230V215TC $2,275.69
FD012104W2212 1/21740230V213T, 215T $2,510.55

Description

WEGCompressor DutyMotors are designed for compressors, pumps and other applications requiring high starting and breadkdown torque.

Feature

  • Single-phase, 4 poles, 60HZ, Service Factor 1.15
  • Voltage:115/230V (up to frame G145T), 230V (above frame G145T)
  • Totally Enclosed Fan Cooled (IP55)
  • Capacitor Start
  • Run capacitor for 2HP and up
  • V Ring in both endshields
  • Manual thermal overload protection
  • High starting torque
  • Insulation class:
    • ‘B’ up to frame G145T
    • ‘F’ for frame W182/4T and up
  • Ball bearings
  • Continuous Duty (S1), 40°C ambient
  • Paint: RAL 3002 (Red)
  • WEG paint plan: 207A

eMotors Direct’s stock of farm duty electric motors are built tough for those harsh conditions of life on the farm. Operate your heavy machinery seasonally or around the clock, these workhorses can handle what you throw at them, with regular maintenance. Our farm duty motor category covers all the motors you need to keep your farm working, find electric auger duty motors, fan motors to dry your grain and cool your barn, and more.

Select a farm duty motor from the top brands you trust, like Baldor, Century, Grain Guard, WEG, and more. Meet your horsepower needs with options from fractional up to 100 HP. Choose a motor that works on either AC single-phase or three-phase power, or DC power if you don’t have access to the grid. Plus, keep your motor’s internals covered with different enclosure types; OAO, ODP, TEAO, TEFC, and TENV.

Shop farm duty electric motors online through our Canadian website today. With over 700 SKUs and convenient filtering options, you can easily find the motor you’re searching for.

Need a hand finding the right motor for your application or legacy replacement?  Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Electrical Data
Rated Motor Output Power
7 1/2 HP
5.5 kW
Rated Motor Speed
1730 RPM
Rated Motor Voltage
230V
Rated Motor Current
33 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
-
Nominal Efficiency
83
Nominal Power Factor
90
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
215TZ
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
157lb
Double Drilled
Yes
Frame Material
Rolled Steel
C-Dimension
19.5"
NEMA Design
-
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
80K
Temp Code
-
Mechanical Data
DE Bearing
6308-ZZ
NDE Bearing
6206-ZZ
Shaft Diameter
1.375"
Shaft Length
3.375"
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
BRAZIL
Warranty
2-Year
