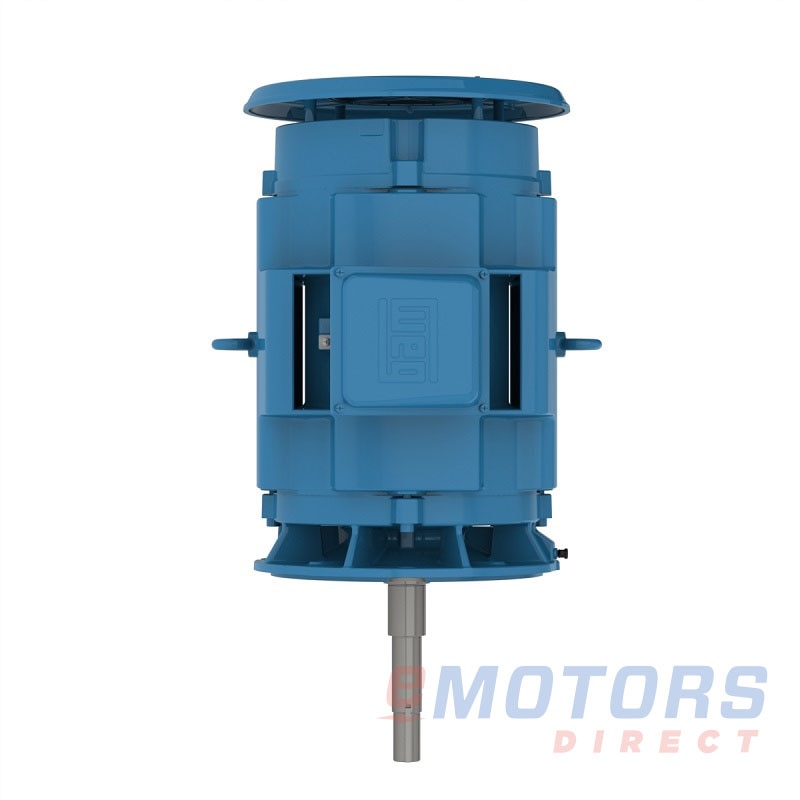

WEG: W40 JM & JP Pump NEMA Premium (128)
The W40 ODP motor type “JM/JP” (gasket) meets NEMA Premium efficiency levels according to NEMA MG-1. This motor line is designed for environments where dirt and moisture are minimal.
- Three phase, 2, 4 and 6 pole, 60Hz, Service 1.15
- Voltage: 208-230/460V, 460V or 575V
- Die cast aluminum squirrel cage rotor
- Class “F” insulation
- Temperature rise: Class “B” (80ºC)
- 104°F (40ºC) ambient temperature
- 575V rated motors have Spike Resistant WISE wire.
- Protects against IGBT voltage spikes up to 2400V.
- Exceeds NEMA MG1 Part 188.8.131.52
- Continuous Duty (S1)
- NEMA dimensions
- Open drip proof (IP23)
- Stainless steel nameplate
- 1045 carbon steel shaft
- F1 mount (with cast iron ‘C’ Flange)
- Paint: Enamel alkyd resin base
- Color: RAL 5007 (Blue)
- Weg paint plan: 207A
- Drip cover for all vertical motors
- Cast iron frames
- Cast iron endshields and terminal box
- Cooling system with finned rotor
- Regreasable bearings system (frame 254JP and up)
eMotors Direct’s stock of pump motors are designed to move an impeller, which in turn moves water or other liquids. You’ll find these types of electric motors applied in wastewater and water treatment plants, pools and spas, and fire suppression systems, to name a few.
Our pump motor category covers many different types of electric pump motors. Amongst our stock you’ll find jet pump motors, water well pump motors, and NEMA Premium® efficient motors. Available in configurations that run on single- or three-phase power and housed within open drip proof (ODP), totally enclosed fan cooled (TEFC), and totally enclosed non-ventilated (TENV) enclosures. Choose a motor from a range of horsepower outputs, as small as 1/12 HP up to 500 HP. Shop various mounting abilities, frame sizes, and body material options. Shop the best brands available in north America; Baldor, Century, Leeson, Marathon, Max Motion, Nidec, TECO-Westinghouse, and WEG.
Shop pump electric motors online through our Canadian website today. With over 1580 SKUs and convenient filtering options, you can easily find the motor you’re searching for.
Need a hand finding the right motor for your application or legacy replacement? Contact our motors experts. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.
