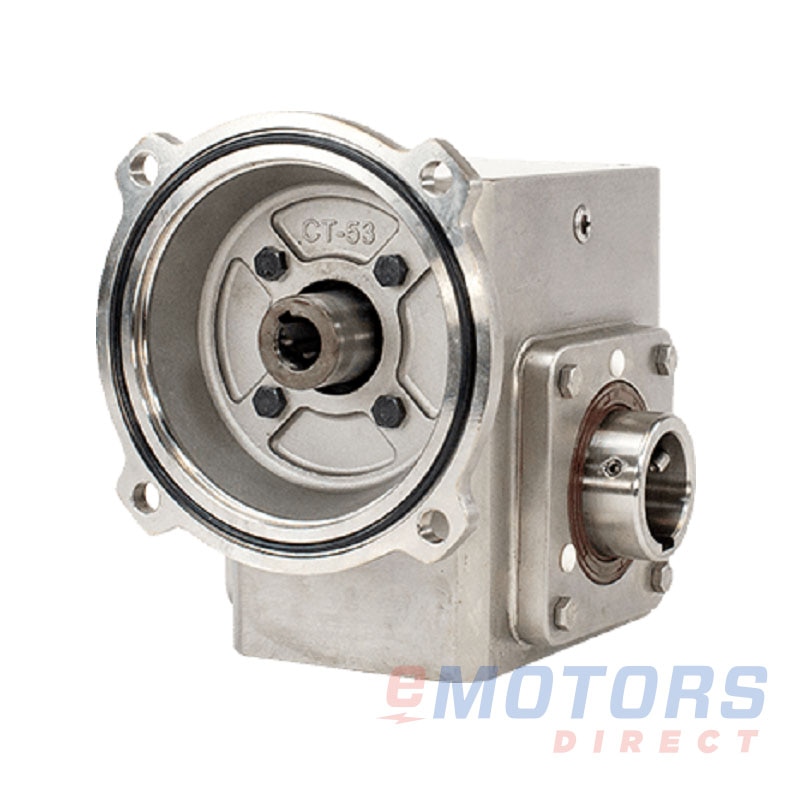

Worldwide SSHdR206-20/1-H-56C-1.716

WorldWide · Right Angle Gear Reducers
20:1 1.57 MAX HP 56C INPUT HOLLOW STAINLESS STEEL WORLDWIDE
Catalog Number: SSHdR206-20/1-H-56C-1.716
Ratio
20:1
Input Frame
56C
Max HP
1.57
Output Type
Hollow Bore
Output RPM
88
Max Output Torque
914 lb-in

Overview

All motor input flanges are NEMA C-face quill style designs and each unit is sold pre-filled with specific gear oil or lubricant.

CAD$1,918.49
Contact us for delivery dates

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (11)

Equivalent alternatives from other brands that have matching specifications to this product.

  • Kuma JNWM-50B-56C-20

    20:1 1.14 MAX HP 56C INPUT HOLLOW KUMA

    CAD $205.50
    Ships next business day

  • Kuma JNWM-63B-56C-20

    20:1 1.92 MAX HP 56C INPUT HOLLOW KUMA

    CAD $318.00
    Ships next business day

  • Max Motion MMR50-20-56C

    20:1 1.14 MAX HP 56C INPUT HOLLOW MAXMOTION

    CAD $387.65
    Ships next business day

  • Max Motion MMR63-20-56C

    20:1 2.05 MAX HP 56C INPUT HOLLOW MAXMOTION

    CAD $507.23
    Ships next business day

  • Worldwide HdRF175-20/1-H-56C

    20:1 1.26 MAX HP 56C INPUT HOLLOW WORLDWIDE

    CAD $508.76
    Ships next business day

  • Max Motion MRS50-20-56C

    20:1 1.14 Max HP 56C Input Hollow Bore Output

    CAD $1,248.17
    Ships next business day

  • Max Motion MRS63-20-56C

    20:1 2.05 Max HP 56C Input Hollow Bore Output

    CAD $1,767.60
    Ships next business day

  • Worldwide HdRF206-20/1-H-56C

    20:1 1.57 MAX HP 56C INPUT HOLLOW WORLDWIDE

    CAD $609.65
    Contact us for delivery dates

  • Worldwide HdRF237-20/1-H-56C

    20:1 2.06 MAX HP 56C INPUT HOLLOW WORLDWIDE

    CAD $696.36
    Contact us for delivery dates

  • Worldwide SSHdR175-20/1-H-56C-1.0

    20:1 1.26 MAX HP 56C INPUT HOLLOW STAINLESS STEEL WORLDWIDE

    CAD $1,757.90
    Contact us for delivery dates

  • Worldwide SSHdR237-20/1-H-56C-1.716

    20:1 2.06 MAX HP 56C INPUT HOLLOW STAINLESS STEEL WORLDWIDE

    CAD $2,334.89
    Contact us for delivery dates

WorldWide: Right Angle Gear Reducers (385)

HdRF133-60/1-H-56C60:10.23Hollow Bore29261 lb-in $429.18
HdRF175-60/1-H-56C60:10.42Hollow Bore29469 lb-in $508.76
HdRF206-60/1-H-56C60:10.6Hollow Bore29750 lb-in $609.65
HdRF237-60/1-H-56C60:10.86Hollow Bore291149 lb-in $696.36
HdRF262-60/1-H-56C60:11.16Hollow Bore291670 lb-in $856.92
HdRF325-60/1-H-182/4TC60:12.03Hollow Bore293127 lb-in $1,190.88
HdRF325-60/1-H-145TC60:12.03Hollow Bore293127 lb-in $1,190.88
HdRF325-60/1-H-56C60:12.03Hollow Bore293127 lb-in $1,190.88
HdRF325-50/1-H-145TC50:12.49Hollow Bore353413 lb-in $1,190.88
SSHdR175-60/1-H-56C-1.060:10.42Hollow Bore29469 lb-in $1,757.90
SSHdR175-50/1-H-56C-1.050:10.5Hollow Bore35575 lb-in $1,757.90
SSHdR175-40/1-H-56C-1.040:10.79Hollow Bore44714 lb-in $1,757.90
SSHdR175-30/1-H-56C-1.030:10.89Hollow Bore58666 lb-in $1,757.90
SSHdR175-20/1-H-56C-1.020:11.26Hollow Bore88596 lb-in $1,757.90
SSHdR175-15/1-H-56C-1.015:11.24Hollow Bore120554 lb-in $1,757.90
SSHdR175-10/1-H-56C-1.010:11.57Hollow Bore175515 lb-in $1,757.90
SSHdR175-5/1-H-56C-1.05:12.83Hollow Bore350499 lb-in $1,881.55
SSHdR206-60/1-H-56C-1.71660:10.6Hollow Bore29750 lb-in $1,918.49
SSHdR206-50/1-H-56C-1.71650:10.74Hollow Bore35830 lb-in $1,918.49
SSHdR206-40/1-H-56C-1.71640:11.09Hollow Bore441120 lb-in $1,918.49
SSHdR206-30/1-H-56C-1.71630:11.65Hollow Bore581310 lb-in $1,918.49
SSHdR206-20/1-H-56C-1.71620:11.57Hollow Bore88914 lb-in $1,918.49
SSHdR206-15/1-H-56C-1.71615:12.09Hollow Bore1201002 lb-in $1,918.49
SSHdR206-10/1-H-56C-1.71610:12.77Hollow Bore175935 lb-in $1,918.49
SSHdR206-5/1-H-56C-1.7165:13.62Hollow Bore350685 lb-in $1,918.49
SSHdR237-60/1-H-56C-1.71660:10.86Hollow Bore291149 lb-in $2,334.89
SSHdR237-50/1-H-56C-1.71650:11.32Hollow Bore351527 lb-in $2,334.89
SSHdR237-40/1-H-56C-1.71640:11.45Hollow Bore441483 lb-in $2,334.89
SSHdR237-30/1-H-56C-1.71630:11.82Hollow Bore581507 lb-in $2,334.89
SSHdR237-20/1-H-56C-1.71620:12.06Hollow Bore881195 lb-in $2,334.89
SSHdR237-15/1-H-56C-1.71615:12.64Hollow Bore1201249 lb-in $2,334.89
SSHdR237-10/1-H-56C-1.71610:13.47Hollow Bore1751158 lb-in $2,334.89
SSHdR237-5/1-H-56C-1.7165:14.32Hollow Bore350798 lb-in $2,498.30
SSHdR262-15/1-H-56C-1.151615:13.22Hollow Bore1201577 lb-in $2,546.61
SSHdR262-60/1-H-56C-1.151660:11.16Hollow Bore291670 lb-in $3,048.27
SSHdR262-50/1-H-56C-1.151650:11.37Hollow Bore351658 lb-in $3,048.27
SSHdR262-40/1-H-56C-1.151640:11.85Hollow Bore441919 lb-in $3,048.27
SSHdR262-30/1-H-145TC-1.151630:12.22Hollow Bore581827 lb-in $3,048.27
SSHdR262-30/1-H-56C-1.151630:12.22Hollow Bore581827 lb-in $3,048.27
SSHdR262-20/1-H-145TC-1.151620:12.67Hollow Bore881563 lb-in $3,048.27
SSHdR262-20/1-H-56C-1.151620:12.67Hollow Bore881563 lb-in $3,048.27
SSHdR262-15/1-H-145TC-1.151615:13.22Hollow Bore1201577 lb-in $3,048.27
SSHdR325-60/1-H-145TC-2.31660:12.03Hollow Bore293127 lb-in $4,216.41
SSHdR325-60/1-H-56C-2.31660:12.03Hollow Bore293127 lb-in $4,216.41
SSHdR325-50/1-H-145TC-2.31650:12.49Hollow Bore353413 lb-in $4,216.41
SSHdR325-50/1-H-56C-2.31650:12.49Hollow Bore353413 lb-in $4,216.41
SSHdR325-40/1-H-145TC-2.31640:13.35Hollow Bore443692 lb-in $4,216.41
SSHdR325-40/1-H-56C-2.31640:13.35Hollow Bore443692 lb-in $4,216.41
SSHdR325-30/1-H-145TC-2.31630:13.66Hollow Bore583045 lb-in $4,216.41
SSHdR325-30/1-H-56C-2.31630:13.66Hollow Bore583045 lb-in $4,216.41

Description

SSHdR series Flange Input – Hollow Bore Output series stainless steel right angle worm gear reducers are stocked with hollow output bore sizes ranging from 1” to 2-3/16” with available center distances ranging from 1.75 to 3.25 inches. All motor input flanges are NEMA C-face quill style designs and each unit is sold pre-filled with Mobil CIBUS 460 H1 food grade lubricant. Stainless Steel bushing kits are sold separately to allow for a greater number of head shaft size configurations.

Features

  • 304 stainless steel housing, covers and flanges
  • Internal bladder functions as a breather and effectively dispels heat
  • Double-lipped VITON oil seals (at output)
  • 15CrMo4 NEMA quill input with carburizing heat treatment
  • CuSn12Ni2 bronze alloy worm wheel with high efficiency gear tooth configuration
  • RoHS plastic covers supplied to fill unused mounting slots
  • 0-ring provided on input flange to prevent moisture intrusion

eMotors Direct’s stock of right-angle gear reducers are designed to decrease the speed and increase the torque between the driver (the electric motor) and the driven equipment using interlocking gears. This right-angle configuration was created for applications where space is a limitation for use, allowing for a directional change of the torque transmission, so equipment doesn’t have to be set up in-line. Right-angle gearboxes are ideal for applications requiring low speeds and high torque.

Our right-angle gear reducer category covers both orthogonal right-angle gearboxes with straight or spiral bevel gears and skew right-angle gearboxes with worm or hypoid gears. Make your selection from horsepower inputs ranging from fractional to 10 HP, gearing ratios from 5:1 to 100:1, and C-flange or shaft input options. Choose from hollow bore or right, left, or double-shafted outputs and a massive range of output RPM and torque ratings. All from Canada’s best brands; Grove Gear, Kuma, Max Motion, Motovario, and WorldWide.

Shop right angle gear reducers online through our Canadian website today. With over 1170 SKUs and convenient filtering options, you can easily find the gear reduction solution you’re searching for.

Need a hand finding the right gear reducer for your application or legacy replacement?  Contact our motor experts today. They have extensive knowledge, backed by over 45 years of experience, to help you with your electric motor project.

Mechanical Data
Ratio
20:1
Input Type
56C
Input Frame
56C
Output Type
Hollow Bore
Output Size
1.125" Bore
Output RPM
88 RPM
Max HP
1.57HP
Max Output Torque
914 lb-in
Max Overhung Load
700 lbs
Type of Oil
Mobil #SHC634 Synthetic Oil
Physical Data
Case Material
Stainless Steel
Case Size
-
Center Distance
2.06 in
Weight
22lb
Performance Ratings
Service Factor 1
1.05 SF @ 1 1/2 HP
Service Factor 2
1.57 SF @ 1 HP
Service Factor 3
2.09 SF @ 3/4 HP
Additional Data
Country of Origin
TAIWAN
Warranty
1-Year
