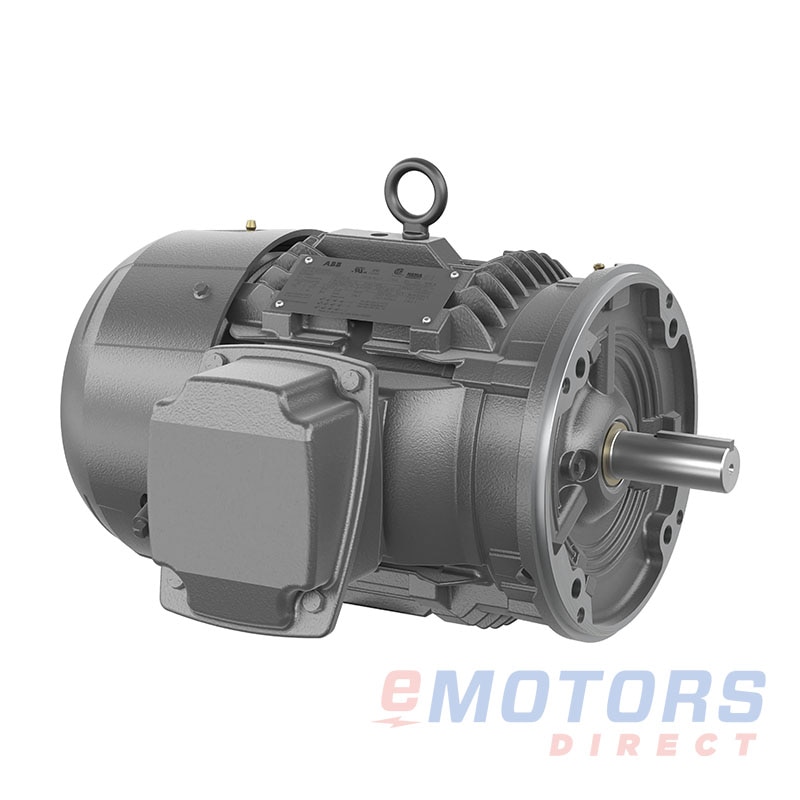

ABB NEMA Motors 1LE23211AB414GA3

ABB NEMA Motors · SD100 C-Face Round Body
2 HP 1800 RPM 230/460 V 145TC TEFC Severe Duty Motors
Catalog Number: 1LE23211AB414GA3
HP
2
RPM
1800
Voltage
230V, 460V
Frame
145TC
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
C-Face / Round Body

Product-line overview

The SD100 from ABB NEMA Motors features Class F insulation with a Class B temperature rise and is certified for Division 2, Class I and Class II locations. It is compatible with inverter drives per NEMA MG1 Part 31.4.4.2 and offers NEMA Premium efficiency to reduce energy consumption. Built with a durable cast iron frame, the motor ensures long-lasting operation and is equipped with a bidirectional cooling fan for enhanced thermal management. Its IP55 protection guards against dust and water ingress. The SD100 is suitable for a wide range of applications, including pumps, fans, compressors, and industries such as petrochemical, oil & gas, paper mills, and water and wastewater.
Ships next business day

Available for Delivery

Stock Locations

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Loading Cross-Referenced Matches

Searching our database for equivalent alternatives

GP100A Rigid

Key Features

  • Class F insulation system for enhanced thermal durability
  • Class B temperature rise for dependable continuous operation
  • Bidirectional cooling fan allows flexible installation orientation
  • Lightweight aluminum frame minimizes overall motor weight
  • IP55 enclosure provides protection against dust and water jets

Ideal for Use In

  • Pumps
  • Fans
  • Compressors
  • Conveyors
Electrical Data
Rated Motor Output Power
2 HP
1.5 kW
Rated Motor Speed
1740 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
-
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
L
Nominal Efficiency
86.5
Nominal Power Factor
77.3
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
145TC
Enclosure
TEFC
Mounting
C-Face / Round Body
Number of Speeds
1 Speed
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
-
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
-
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
0.875
Shaft Length
-
Grease Type
Polyrex EM
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
MEXICO
Warranty
-

Product Line Review

Reviews for this product are combined with others in the same product line, as they share the same design but differ in specifications like HP or RPM.

5 stars
0
4 stars
0
3 stars
0
2 stars
0
1 star
0

There are no reviews for this product yet.

Be the first to write a review

About ABB NEMA Motors

Manufactured by the globally trusted ABB, these NEMA-style motors are designed specifically for the needs of the Canadian market. ABB NEMA motors are designed to deliver reliable, safe, and energy-efficient performance across manufacturing, energy, mining, and many more sectors. ABB offers a comprehensive portfolio with options for a range of applications; from the lightweight aluminum-housed GP100A for general purpose use, to the robust DP200 Crush+ motors for the most demanding industrial applications. Modular and flexible in design, ABB NEMA motors provide the right motor for the job, close to your location, helping you maximize uptime, efficiency, and value.

Where are ABB NEMA Motors Manufactured?

In Canada, ABB NEMA motors are stocked in Toronto, Montreal, and Edmonton and ship Canada wide. Built in Guadalajara, Mexico, this facility has been producing high-quality motors since 1972, originally under Siemens. Since 2023, it has operated as an ABB factory following ABB’s acquisition of the Siemens low voltage NEMA motor business.

Key Features of ABB NEMA Motors

  • Space-Saving Design: Motors up to frame size 400 feature symmetrical frames, allowing F1-to-F2 conversion by swapping endplates and rotor for tight installations.
  • Built for Intermittent Overloads: NEMA T-frame TEFC motors are designed with a service factor of 1.15 or higher, providing peace of mind under varying loads. Some exceptions apply where noted.
  • Versatile Mounting Options: Most cast iron foot-mounted motors (143T-145T, 182T-184T, etc.) come with dual mounting holes for flexible and easy installation.
  • Direct Siemens Replacement: ABB NEMA motors maintain the same catalogue numbers as legacy Siemens units, making upgrades and replacements simple and hassle-free.

Whether you need a general purpose, severe duty, explosion proof, or pump motor, ABB NEMA electric motors provide durable, reliable performance and straightforward compatibility with legacy Siemens systems.
