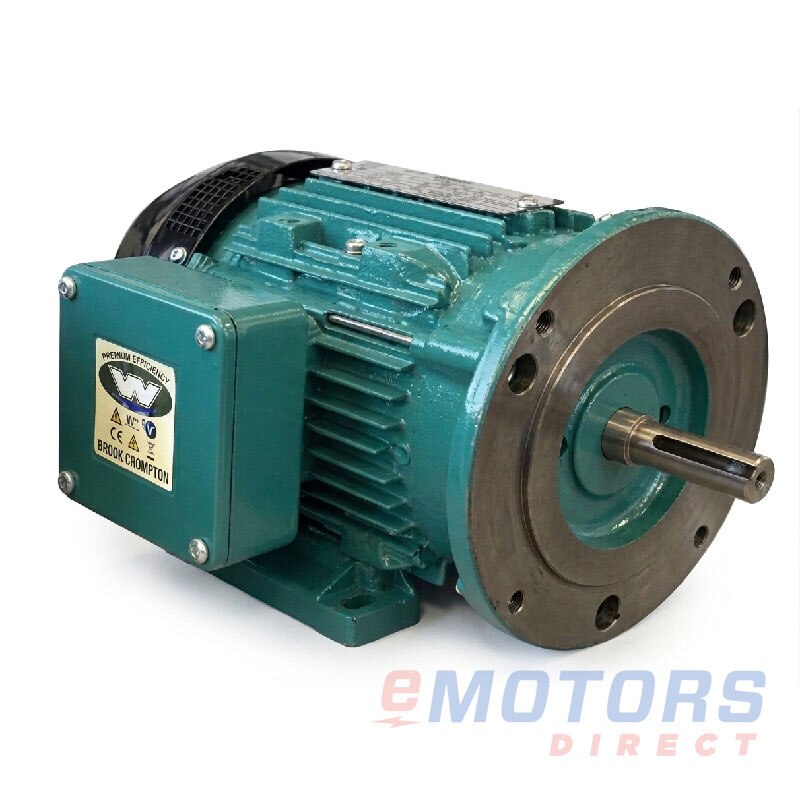

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

New

Brook Crompton HO2N030-5C

Brook Crompton
30 HP 3545 RPM 575 V 284TSC ODP General Purpose AC Motors
Catalog Number: HO2N030-5C
Model Number: N280TSC
HP
30
RPM
3600
Voltage
575V
Frame
284TSC
Phase
3
Enclosure
ODP
Material
Cast Iron
Mounting
C-Face / Rigid

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Etobicoke, ON: In Stock
Factory Ordered: Out of Stock
Edmonton [eMotors #2], AB: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
30 HP
22 kW
Rated Motor Speed
3545 RPM
Rated Motor Voltage
575V
Rated Motor Current
26.8 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
G
Nominal Efficiency
94.1
Nominal Power Factor
89.9
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
Wye/Delta
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
10:1
6
Constant Torque
4:1
15
General Data
Frame
284TSC
Enclosure
ODP
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
396lb
Double Drilled
Yes
Frame Material
Cast Iron
C-Dimension
22.64"
NEMA Design
B
Degree of Protection (IP)
IP23
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
F1
Removable Feet
No
Orientation
Horizontal / Vertical
Ambient Temp
40 °C
Full Load Temperature Rise
Full Load Temp Rise
50
Temp Code
T3
Mechanical Data
DE Bearing
6312
NDE Bearing
6211
Shaft Diameter
1.625"
Shaft Length
3.25"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
CHINA
Warranty
3-Year
