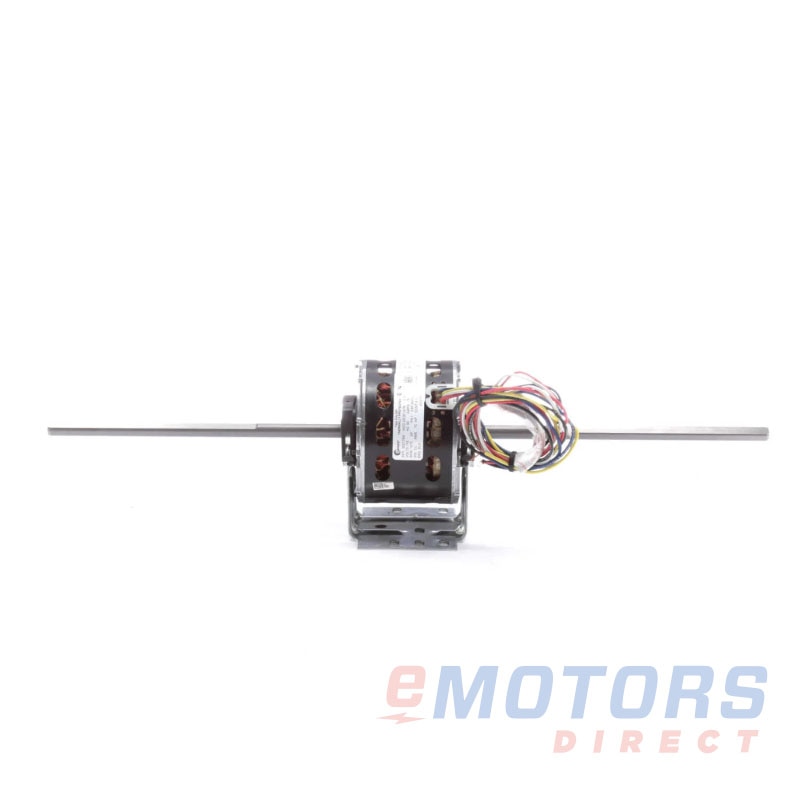

CENTURY 546A

Century
1/20,1/30,1/50,1/75 HP 1075 42 Fr OAO 115V Furnace Motor
Catalog Number: 546A
HP
1/20
RPM
1200
Voltage
115V
Frame
42
Phase
1
Enclosure
OAO
Material
Rolled Steel
Mounting
Resilient

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Mississauga, ON: In Stock
Edmonton, AB: Out of Stock
Factory Ordered: 4-5 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (2)

Equivalent alternatives from other brands that have matching specifications to this product.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
BOSCH 200-037
FASCO D1090
FR CY6210A
GENERAL ELECTRIC 5KCP29BK165
UNIVERSAL DE3B019, DE3B023, DE3D054, DE3D089, DE3D091, DE3D098, DE3D118, DE3D123, DE3D172, DE3D180, DE3D192, DE3D199, DE3D207, DE3D227, DE3D235, DE3D257, DE3D262, DE3D294, DE3D386, DE3E066, DE3E147, DE3E190, 200-036, DE3B001, DE3B003, DE3B008, DE3B002, DE3B006, DE3B013, DE3B021, DE3D007, DE3D088, DE3D090, DE3D096, DE3D117, DE3D120, DE3D161, DE3D177, DE3D188, DE3D193, DE3D205, DE3D216, DE3D228, DE3D256, DE3D258, DE3D263, DE3D344, DE3E006, DE3E071, DE3E188, DE3E198
Electrical Data
Rated Motor Output Power
1/20 HP
.04 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
115V
Rated Motor Current
0.78,0.55,0.36,0.27 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
6 Mfd-370 Volts
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
42
Enclosure
OAO
Mounting
Resilient
Number of Speeds
4 Speed
Approximate Weight
11.13lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
24.81"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
A
Rotation
CWLE
Duty
Continuous Air Over
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
SLEEVE
NDE Bearing
SLEEVE
Shaft Diameter
0.5"
Shaft Length
10.6X.5X10.6"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
MEXICO
Warranty
1-YEAR
