Product images are for reference only. Please review product specifications for the most accurate and detailed information.

New

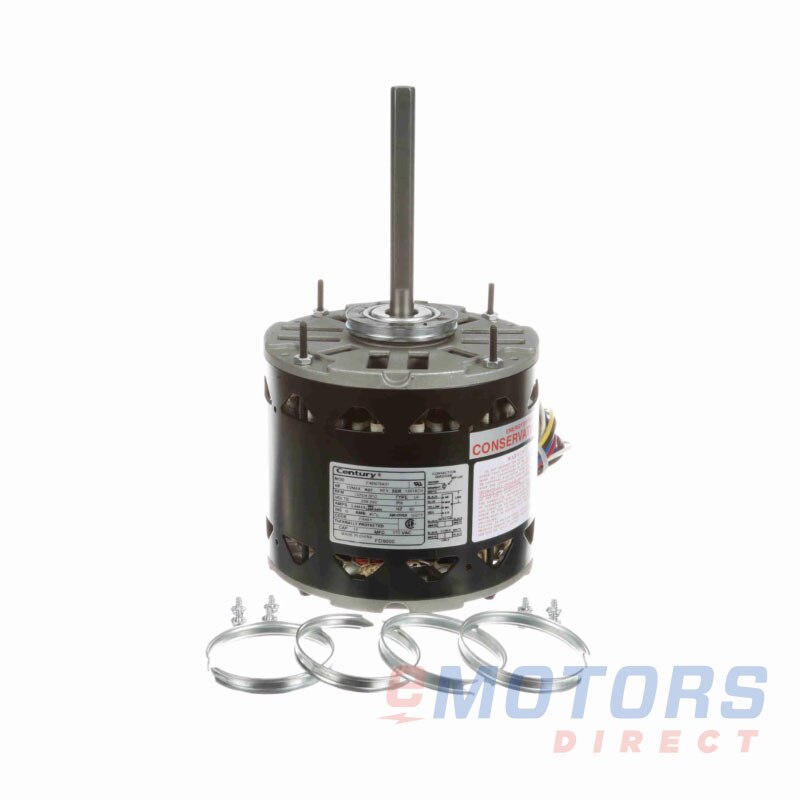

CENTURY FD6000

Century
1/2 HP 1075 48Y Fr Open 208-230V Furnace Motor
Catalog Number: FD6000
HP
1/2
RPM
1200
Voltage
208-230V
Frame
48Y
Phase
1
Enclosure
Open
Material
Rolled Steel
Mounting
Resilient / Stud

Availability: Factory Order (4-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Factory Ordered: 4-5 weeks
Mississauga, ON: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Alternatives

This item has similar horsepower, RPM, voltage, frame size, phase, enclosure, and mounting and may be used as an alternative for the following motors:

BrandCatalog
MARATHONX073, 48A11011064
AO SMITH F48S05A50, F48T92A01, F48N76A01
CENTURY FE6000F, F48N76A01, D1036AO
FASCO D833
GENERAL ELECTRIC 3464, 5KCP39KGV805, 5KCP39KGV201
GENTEQ 3464, 6005
GLOBAL IND WBB186024
GRAINGER/DAYTON 4ME34, 5HC11
ICP 514087301, 512016801
JS S89-389
LAU 57271
MARS 3464
OEM 511991401
RE MICHEL 1E540
ROTOM R6-R43601
SMITH F48N76A01
UPG S1-FD6000
Electrical Data
Rated Motor Output Power
1/2 HP
.37 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
3.9 MX AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
10 / 5 Mfd-370 Volts
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48Y
Enclosure
Open
Mounting
Resilient / Stud
Number of Speeds
5 Speed
Approximate Weight
16
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
10.36"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
Air Over
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
BALL
NDE Bearing
BALL
Shaft Diameter
0.5"
Shaft Length
5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
INDIA
Warranty
1-YEAR
