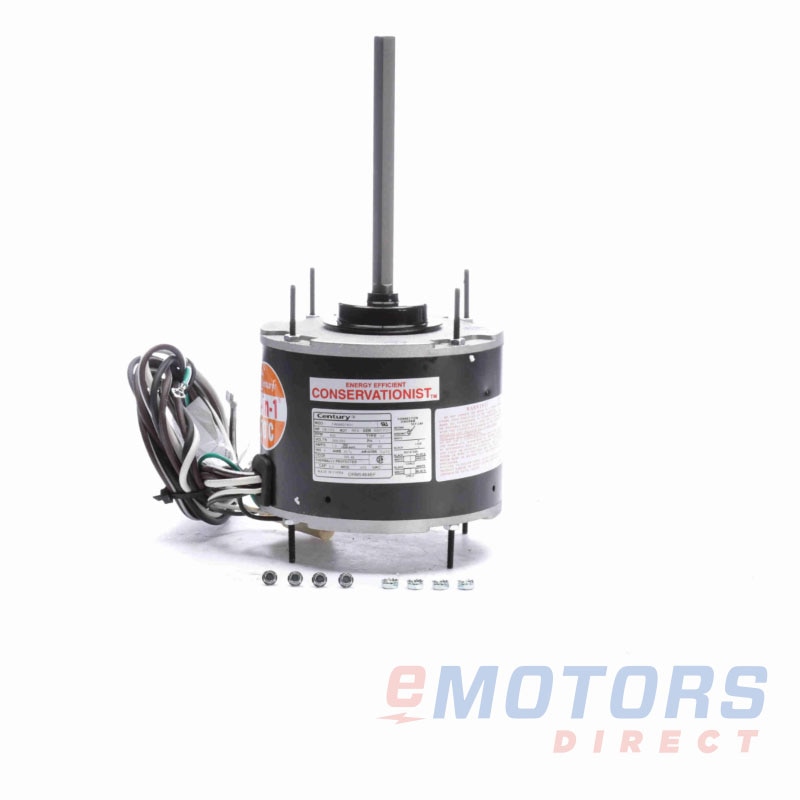

Century ORM5484BF

Century
1/8 HP 825 48 Fr TENV 208-230V Furnace Motor Capacitor Included: TOCF5
Catalog Number: ORM5484BF
HP
1/8
RPM
900
Voltage
208-230V
Frame
48
Phase
1
Enclosure
TENV
Material
Rolled Steel
Mounting
Stud

Ships next business day — In Stock (3)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (3)
Edmonton, AB: Out of Stock
Mississauga, ON: In Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Contact our team for alternative solutions

This item is not a direct replacement for any products we currently have in our database.

Electrical Data
Rated Motor Output Power
1/8 HP
.1 kW
Rated Motor Speed
825 RPM
Rated Motor Voltage
208-230V
Rated Motor Current
1 AMP
Phase
1
Poles
8
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
5 Mfd-370 Volts
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48
Enclosure
TENV
Mounting
Stud
Number of Speeds
-
Approximate Weight
12lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
11.62"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Air Over
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal / Vertical
Ambient Temp
70°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
BALL
NDE Bearing
BALL
Shaft Diameter
0.5"
Shaft Length
6.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
INDIA
Warranty
1-YEAR
