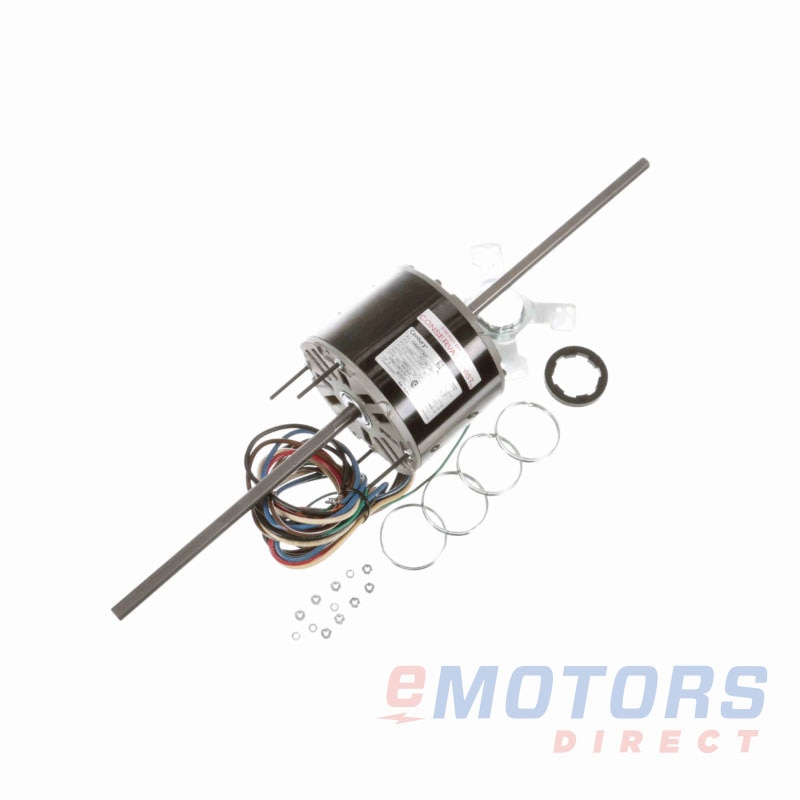

Century RAL1026A

Century
1/4 HP 1075 48Y Fr Open 115V Furnace Motor Capacitor Included: TOCF5
Catalog Number: RAL1026A
HP
1/4
RPM
1200
Voltage
115V
Frame
48Y
Phase
1
Enclosure
Open
Material
Rolled Steel
Mounting
Resilient / Stud

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: Out of Stock
Edmonton, AB: In Stock
Factory Ordered: 4-5 weeks
Mississauga, ON: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Contact our team for alternative solutions

This item is not a direct replacement for any products we currently have in our database.

Electrical Data
Rated Motor Output Power
1/4 HP
.19 kW
Rated Motor Speed
1075 RPM
Rated Motor Voltage
115V
Rated Motor Current
5 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
5 Mfd-370 Volts
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48Y
Enclosure
Open
Mounting
Resilient / Stud
Number of Speeds
-
Approximate Weight
20lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
24"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
A
Rotation
CCWLE
Duty
Air Over
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
SLEEVE
NDE Bearing
SLEEVE
Shaft Diameter
0.5"
Shaft Length
9.88 X .5 X 9.88"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
INDIA
Warranty
1-YEAR
