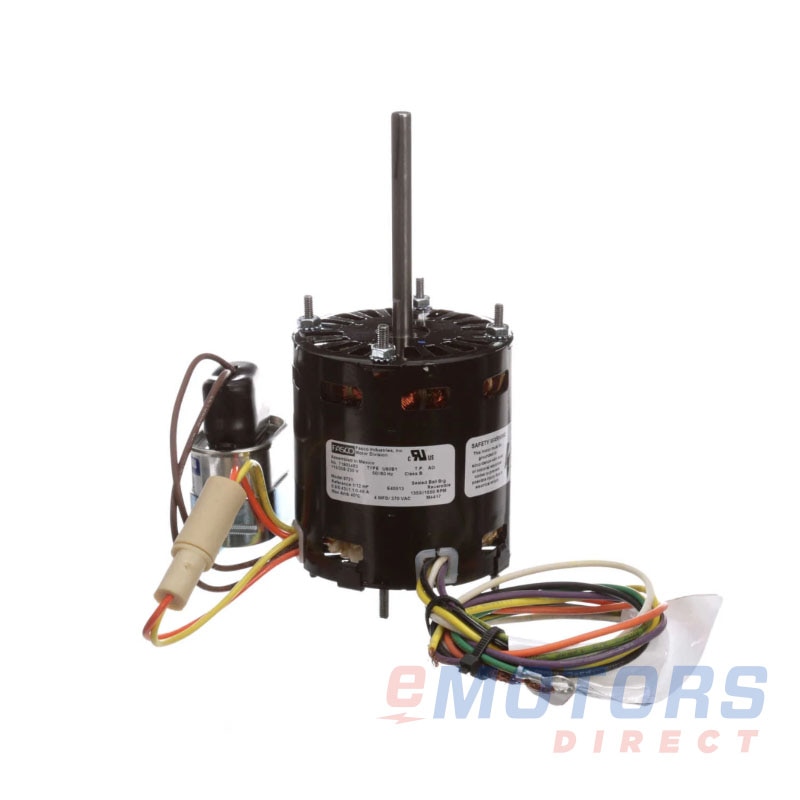

FASCO 9721

Fasco
1/12 HP 1350|1550 3.3" Fr OAO 115V|208-230V Furnace Motor
Catalog Number: 9721
HP
1/12
RPM
1800
Voltage
115V,208-230V
Frame
3.3"
Phase
1
Enclosure
OAO
Material
Rolled Steel
Mounting
Stud

Ships next business day — In Stock (3)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (3)
Edmonton, AB: In Stock
Factory Ordered: 4-5 weeks
Mississauga, ON: In Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

This item is not a direct replacement for any products we currently have in our database.

Electrical Data
Rated Motor Output Power
1/12 HP
.06 kW
Rated Motor Speed
1350, 1550 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
0.9/0.43//1.1/0.49 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
-
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
4 Mfd-370 Volts
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
3.3"
Enclosure
OAO
Mounting
Stud
Number of Speeds
-
Approximate Weight
5lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
6.86"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
Air Over
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
BALL
NDE Bearing
BALL
Shaft Diameter
0.312"
Shaft Length
3.25"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
UL
Country of Origin
CHINA
Warranty
1-YEAR
