FASCO D117

Fasco

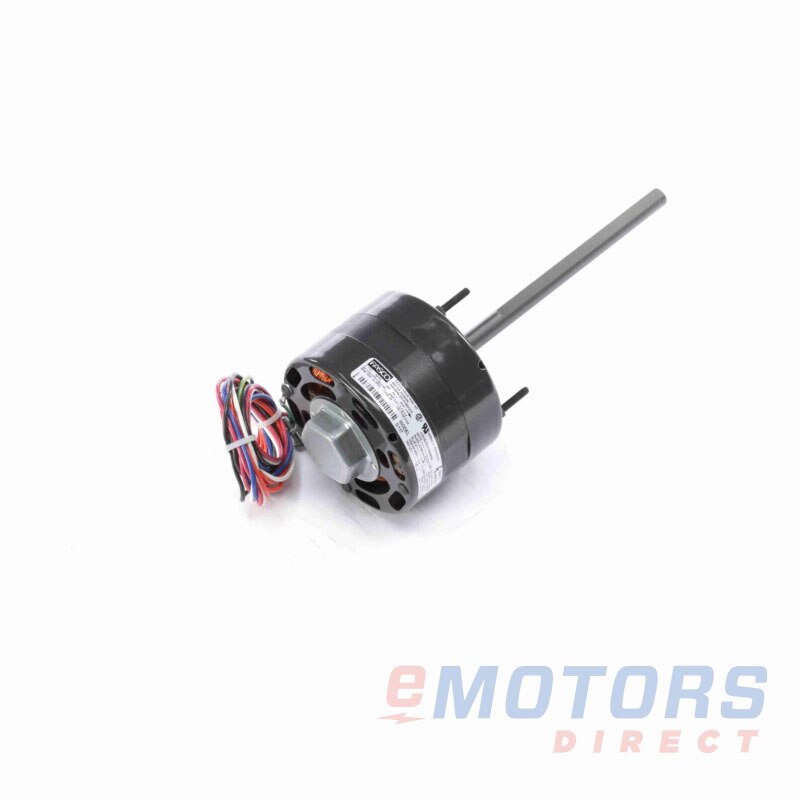

1/15 HP 1550 4.4" Fr OAO 115V Furnace Motor
Catalog Number: D117
HP
1/15
RPM
1800
Voltage
115V
Frame
4.4"
Phase
1
Enclosure
OAO
Material
-
Mounting
Stud

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Mississauga, ON: In Stock
Edmonton, AB: In Stock
Factory Ordered: 4-5 weeks

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

This item is not a direct replacement for any products we currently have in our database.

Electrical Data
Rated Motor Output Power
1/15 HP
.05 kW
Rated Motor Speed
1550 RPM
Rated Motor Voltage
115V
Rated Motor Current
2.5-1.5-1.2-1.0 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
4.4"
Enclosure
OAO
Mounting
Stud
Number of Speeds
-
Approximate Weight
6.2lb
Double Drilled
No
Frame Material
-
C-Dimension
11.29"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
A
Rotation
CCWSE
Duty
Air Over
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
SLEEVE
NDE Bearing
SLEEVE
Shaft Diameter
0.5"
Shaft Length
7.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
MEXICO
Warranty
1-YEAR
