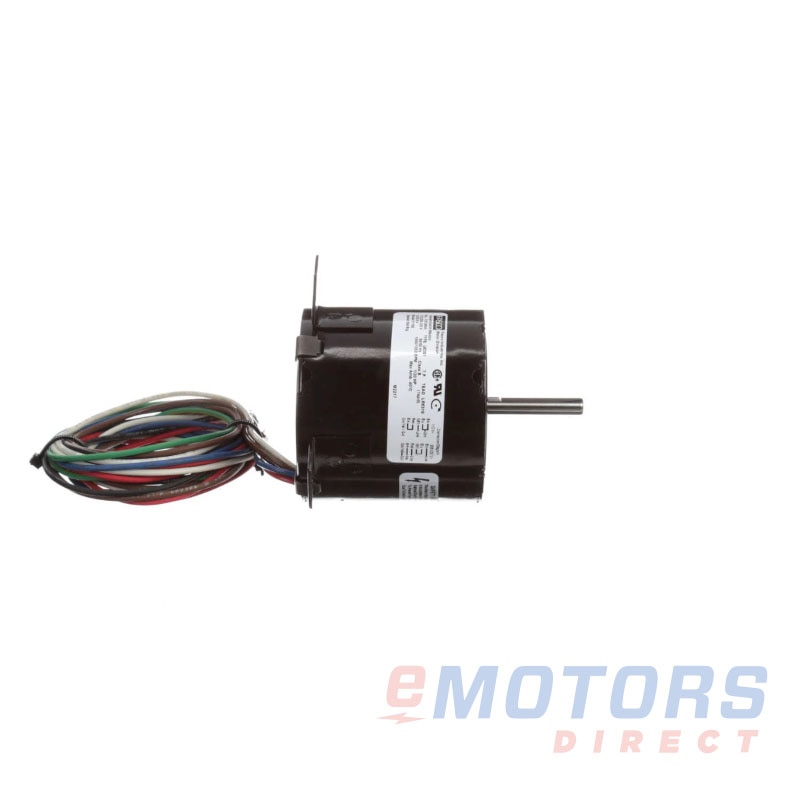

FASCO D1189

Fasco
1/20 HP 1550|1350 3.3" Fr TEAO 115V|208-230V Furnace Motor
Catalog Number: D1189
HP
1/20
RPM
1800
Voltage
115V,208-230V
Frame
3.3"
Phase
1
Enclosure
TEAO
Material
Rolled Steel
Mounting
Three Lug Mount

Ships next business day — In Stock (4)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (4)
Edmonton, AB: Out of Stock
Factory Ordered: 4-5 weeks
Mississauga, ON: In Stock

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Contact our team for alternative solutions

This item is not a direct replacement for any products we currently have in our database.

Electrical Data
Rated Motor Output Power
1/20 HP
.04 kW
Rated Motor Speed
1550, 1350 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
1.60/0.80 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
3.3"
Enclosure
TEAO
Mounting
Three Lug Mount
Number of Speeds
-
Approximate Weight
4.6lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
4.86"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
CWSE
Duty
Air Over
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
BALL
NDE Bearing
BALL
Shaft Diameter
0.312"
Shaft Length
1.65"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
MEXICO
Warranty
1-YEAR
