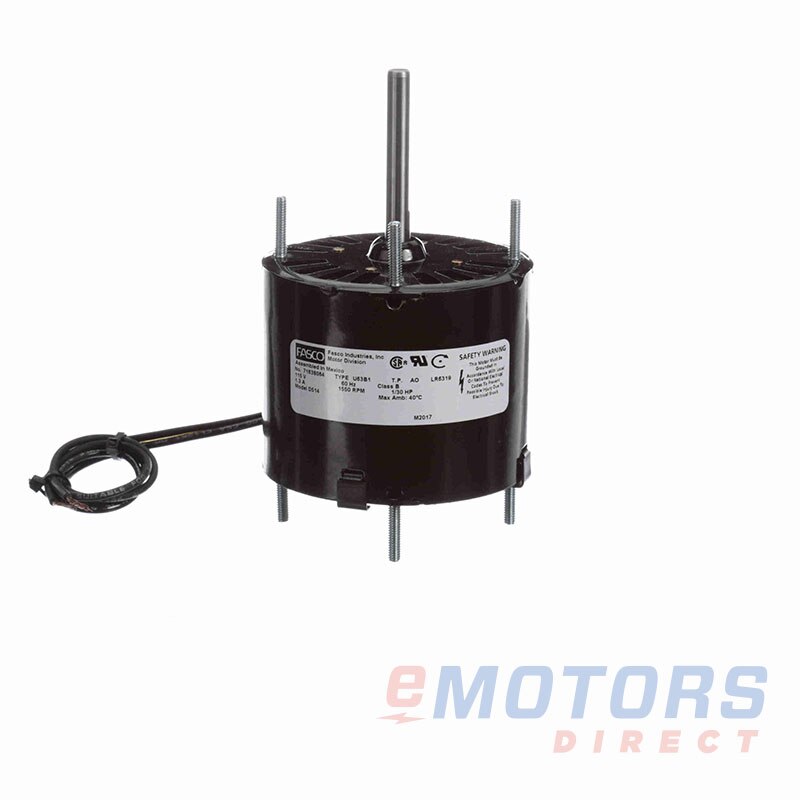

Fasco D541

Fasco
1/100 HP 1 PH TEAO 115V 1550 RPM
Catalog Number: D541
HP
1/100
RPM
1800
Voltage
115V
Frame
3.3"
Phase
1
Enclosure
TEAO
Material
Rolled Steel
Mounting
Stud

Ships next business day — In Stock (3)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #1], AB: In Stock (3)
Edmonton, AB: Out of Stock
Factory Ordered: 4-5 weeks
Mississauga, ON: Out of Stock

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

This item is not a direct replacement for any products we currently have in our database.

Electrical Data
Rated Motor Output Power
1/100 HP
Rated Motor Speed
1550 RPM
Rated Motor Voltage
115V
Rated Motor Current
0.6 AMP
Phase
1
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
-
Nominal Efficiency
-
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
3.3"
Enclosure
TEAO
Mounting
Stud
Number of Speeds
-
Approximate Weight
2.2lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
4.78"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
CWDE
Duty
-
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
0.25"
Shaft Length
2.3"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
MEXICO
