Grain Guard 503-2221

Grain Guard

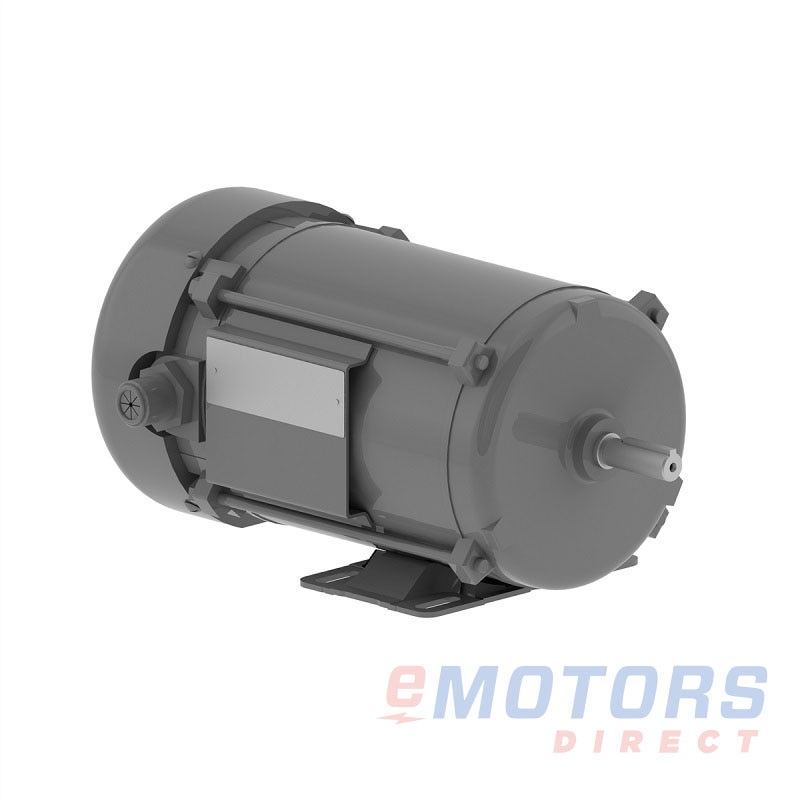

40HP 208-230V|460V OEM MOTOR
Catalog Number: 503-2221
Part Number: 11723922
HP
40
RPM
1800
Voltage
208-230V, 460V
Frame
324T, 326T
Phase
3
Enclosure
TEFC
Material
-
Mounting
-
CAD$6,282.64
Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Nobleford, AB: In Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
40 HP
30 kW
Rated Motor Speed
1775 RPM
Rated Motor Voltage
208-230V, 460V
Rated Motor Current
104.0-94.2/47.1 AMP
Phase
3
Poles
-
Locked Rotor Current
-
Fl Current @ 208V
104
Service Factor
1.25
KVA Code
G
Nominal Efficiency
94.1
Nominal Power Factor
85
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
324T, 326T
Enclosure
TEFC
Mounting
-
Number of Speeds
-
Approximate Weight
578lb
Double Drilled
No
Frame Material
-
C-Dimension
-
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
-
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
-
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
-
NDE Bearing
-
Shaft Diameter
-
Shaft Length
-
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
cULus
Country of Origin
BRAZIL
Warranty
3-Year
