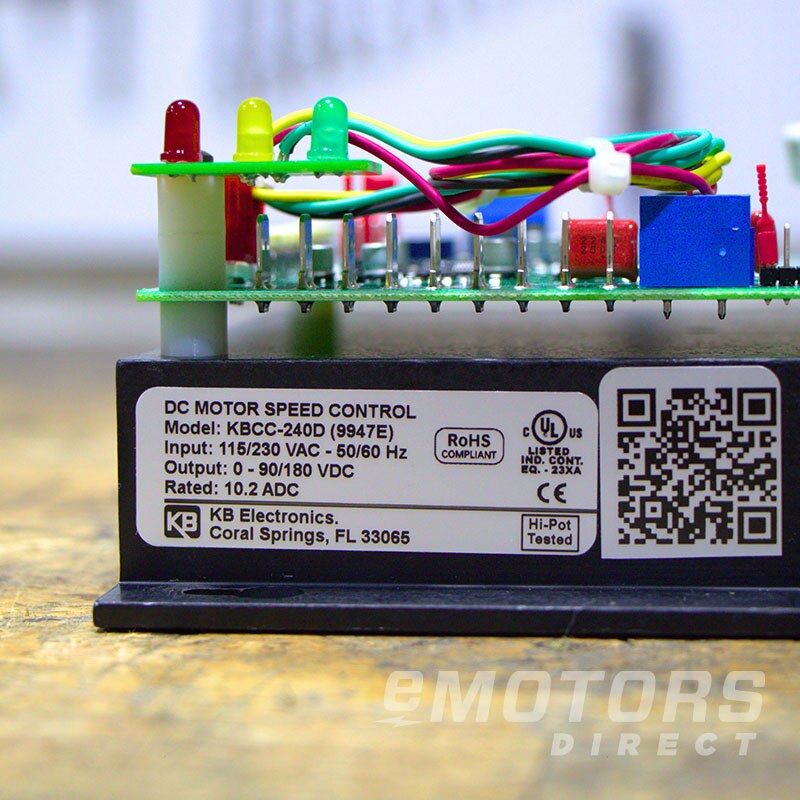

KB Electronics KBCC-240D

KB Electronics · KBCC - DC Drive
KBCC SCR Drive - Chassis 3 HP 180V (No.9947)
Catalog Number: KBCC-240D
Part Number: 9947
HP
1, 2
Input Voltage
115V, 230V
Output Voltage
90V, 180V
Input Phase
1
Enclosure
Chassis

Product-line overview

The KBCC Series of DC Drives are rated for 1/100 to 3 horsepower. These chassis units utilize the KBMM speed control to provide a low-cost, reliable SCR drive.

DISCONTINUED

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

KB Electronics: KBCC - DC Drive (3)

KBCC-1251 1/2115V 90V 1Chassis $325.89
KBCC-2253230V 180V 1Chassis $342.22
KBCC-2555230V 180V 1Chassis $593.75

Description

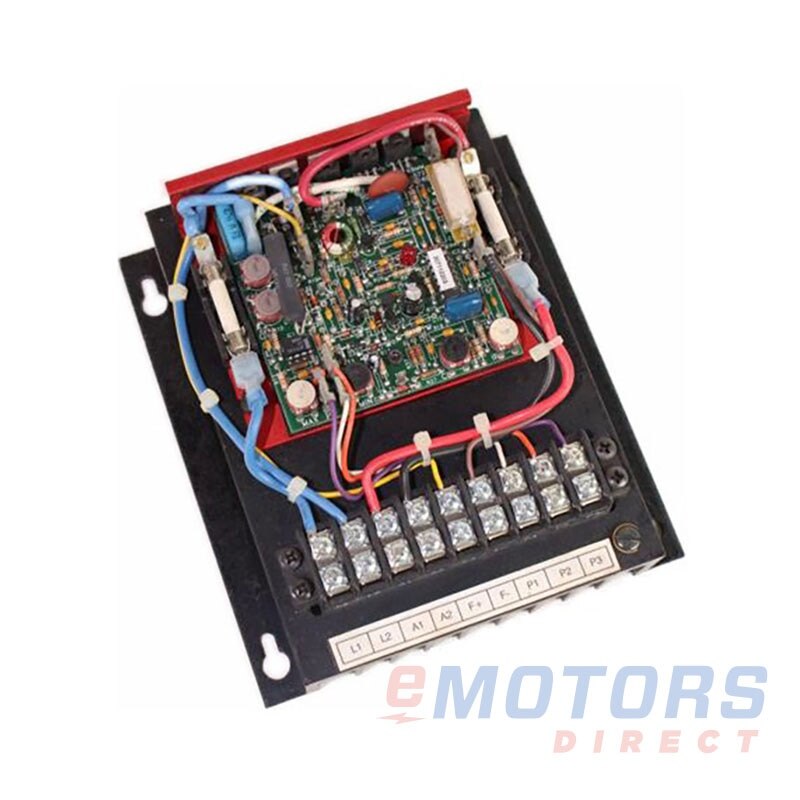

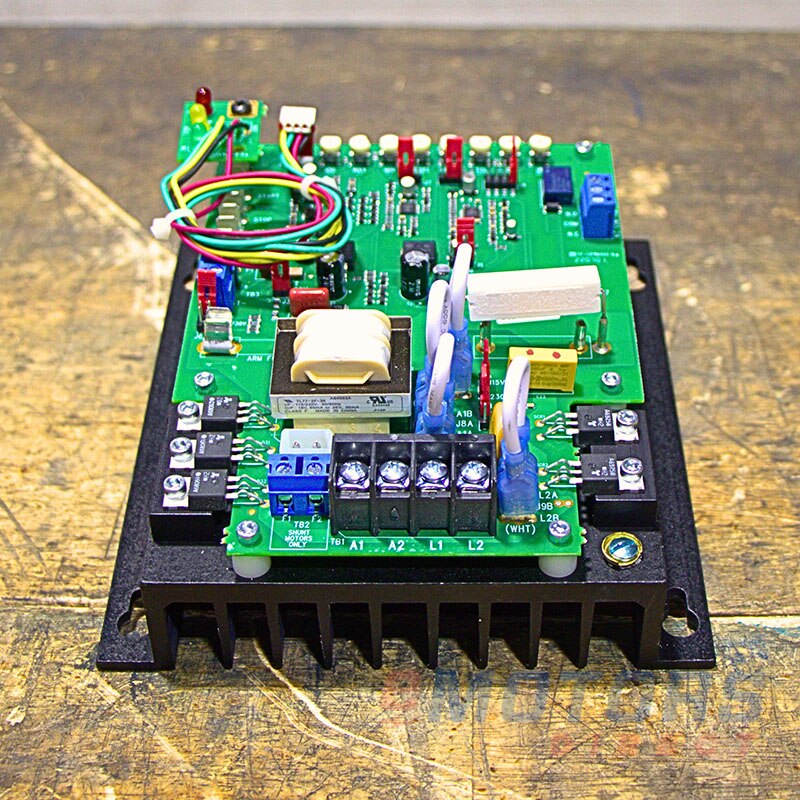

The KBCC Series of DC Drives are rated for 1/100 to 3 horsepower. These chassis units utilize the KBMM speed control to provide a low-cost, reliable SCR drive. Features include an Auxiliary Heat Sink, Barrier Terminal Block, AC line fuse, and an Armature fuse holder. This drive requires a Plug-in Horsepower Resistor® to operate. A 5k ohm potentiometer is included.

Electrical Data
HP CT Rating
1,2 HP
HP VT Rating
-
Input
Output
Voltage
115V,230V
180V,90V
Max CT Current
15
10.2
Max VT Current
-
-
Phase
1
DC
Hz Range
50-60
-
Physical Data
Weight
-
Height
7"
Width
6.25"
Depth
3"
Enclosure
Chassis
Degree of Protection (IP)
IP20
Frame
-
Ambient Temp
0 to 45°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
MEXICO
Warranty
18-Month
