Product images are for reference only. Please review product specifications for the most accurate and detailed information.

KB Electronics KBPB-125

KB Electronics · KBPB - DC Drive

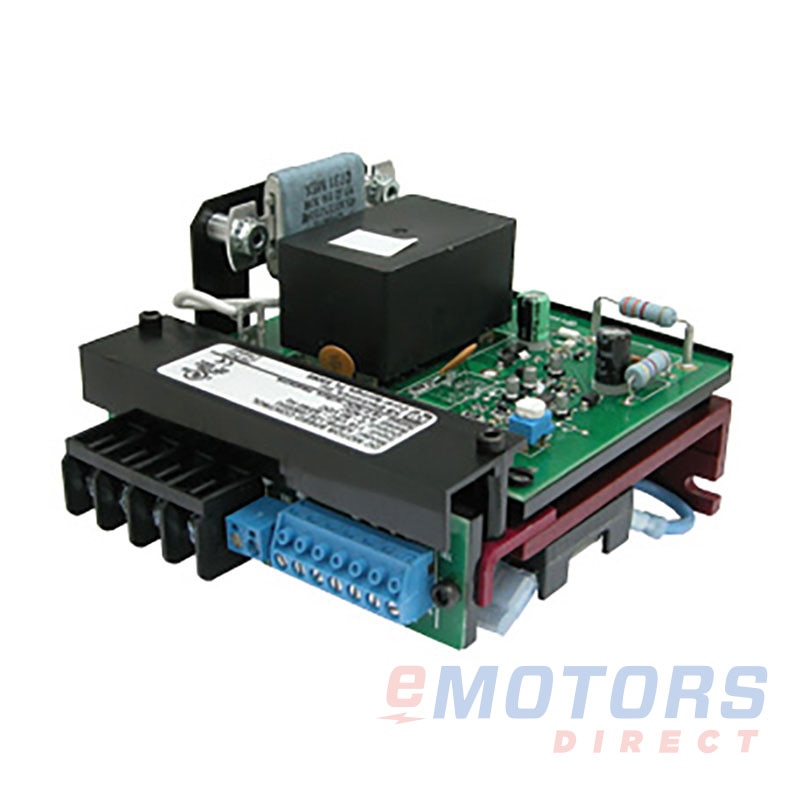

KBPB SCR Relay Reversing Drive - Chassis 3/4 HP 90V (No.8900)
Catalog Number: KBPB-125
Part Number: 8900
HP
3/4
Input Voltage
115V
Output Voltage
90V
Input Phase
1
Enclosure
Chassis

Product-line overview

Our selection of KB Electronics DC drives offers a wide variety of drives for DC motor variable speed control. Select a drive rated for fractional HP up to 5 HP rated motors and a large selection of input and output voltage ratings. They feature enclosures from chassis to NEMA 1 and NEMA 4X.

DISCONTINUED

See from other brands that have matching specifications to this product.

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Description

The KBPB Series of DC Drives consist of two models rated for 1/100 to 3 horsepower. These chassis drives are a compact version of the KBCC “Control. The APRM eliminates contact arcing by allowing armature switching to take place only when voltage levels are near zero. Built-in terminal blocks and its small size make the control ideal for installation where space is at a premium. A 5k ohm potentiometer is included. This drive requires a Plug-in Horsepower Resistor to operate and includes an AC line fuse and an Armature fuse holder.

Electrical Data
HP CT Rating
3/4 HP
HP VT Rating
-
Input
Output
Voltage
115V
90V
Max CT Current
12
8
Max VT Current
-
-
Phase
1
DC
Hz Range
50-60
-
Physical Data
Weight
2 lb
Height
4.25"
Width
4.88"
Depth
5"
Enclosure
Chassis
Degree of Protection (IP)
IP20
Frame
-
Ambient Temp
0 to 45°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
MEXICO
Warranty
18-Month
