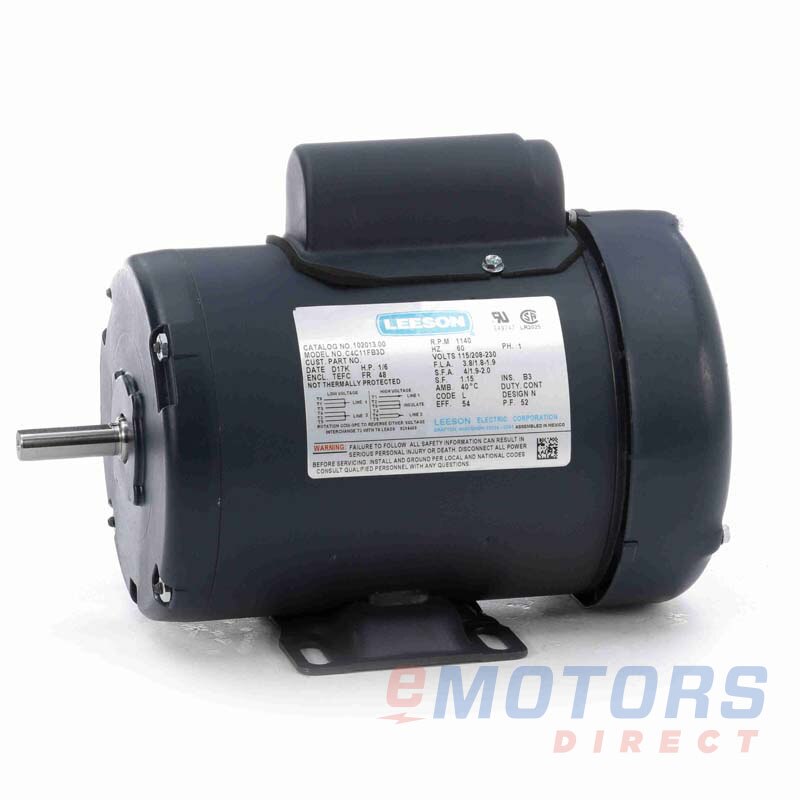

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Leeson 102013.00

Leeson
1/6 HP 1200 48 TEFC 115V|230V General Purpose
Catalog Number: 102013.00
Part Number: 102013.00
Model Number: C4C11FB3D
HP
1/6
RPM
1200
Voltage
115V,208-230V
Frame
48
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid

Availability: Factory Order

Stock Locations

This item is factory ordered. Shipping time may vary. Contact our team for an accurate shipping estimate.

Important Links

Need it Now?

See our for equivalent alternatives

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
1/6 HP
.13 kW
Rated Motor Speed
1200 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
3.8/1.8-1.9 AMP
Phase
1
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
L
Nominal Efficiency
54
Nominal Power Factor
52
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
48
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
20lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
10.31"
NEMA Design
N
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.5"
Shaft Length
1.5"
Grease Type
Multemp SRL
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
1-Year
