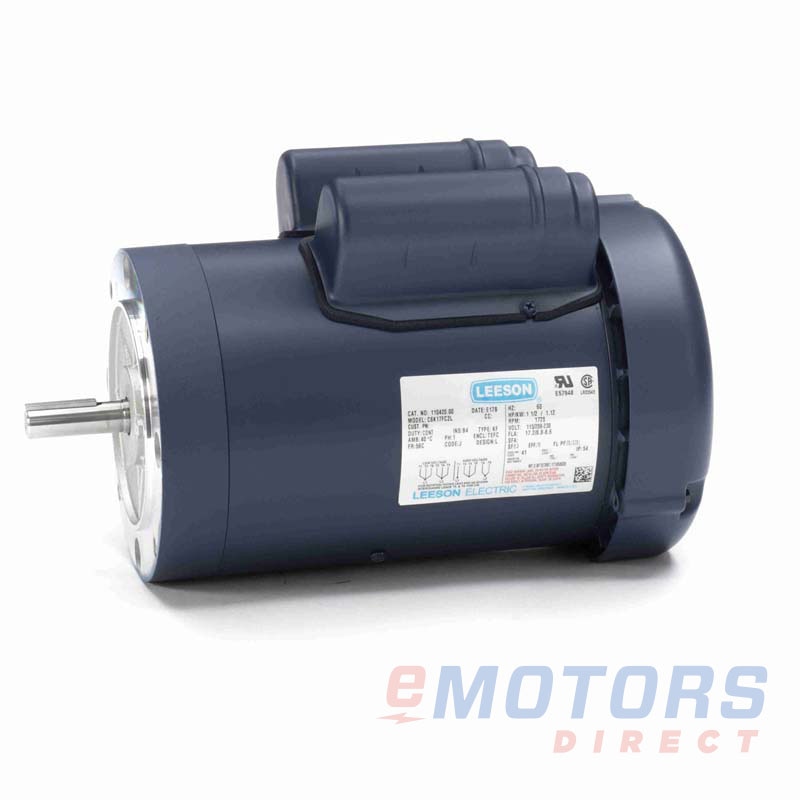

Leeson 110420.00

Leeson
1 1/2 HP 1800 56C TEFC 115V|230V General Purpose
Catalog Number: 110420.00
Part Number: 110420.00
Model Number: C6K17FC2L
HP
1 1/2
RPM
1800
Voltage
115V, 208-230V
Frame
56C
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Round Body
Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: In Stock
Mississauga, ON: Out of Stock
Factory Ordered: 3-5 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
1 1/2 HP
1.1 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
115V,208-230V
Rated Motor Current
17.2/8.8-8.6 AMP
Phase
1
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
J
Nominal Efficiency
79
Nominal Power Factor
73
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
12.99"
NEMA Design
L
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
1-Year
