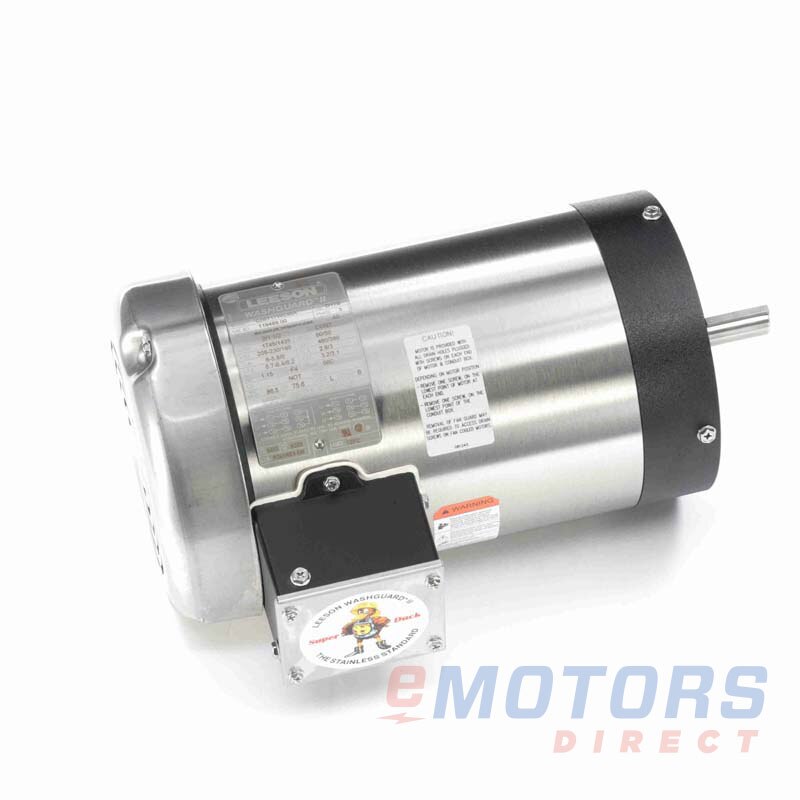

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Leeson 119489.00

Leeson
2 HP 1800 56C TEFC 230V|460V Washdown
Catalog Number: 119489.00
Part Number: 119489.00
Model Number: CZ6T17WC56A
HP
2
RPM
1800
Voltage
208-230V,460V
Frame
56C
Phase
3
Enclosure
TEFC
Material
Stainless Steel
Mounting
C-Face / Round Body

Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Mississauga, ON: Out of Stock
Factory Ordered: 3-5 weeks

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
2 HP
1.5 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
6.0-5.8/2.9 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
L
Nominal Efficiency
86.5
Nominal Power Factor
75.6
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
65lb
Double Drilled
No
Frame Material
Stainless Steel
C-Dimension
13.66"
NEMA Design
B
Degree of Protection (IP)
-
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
Polyrex EM
Greaseable
Yes
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
-
Country of Origin
-
Warranty
1-Year
