Leeson 174678.00

Leeson

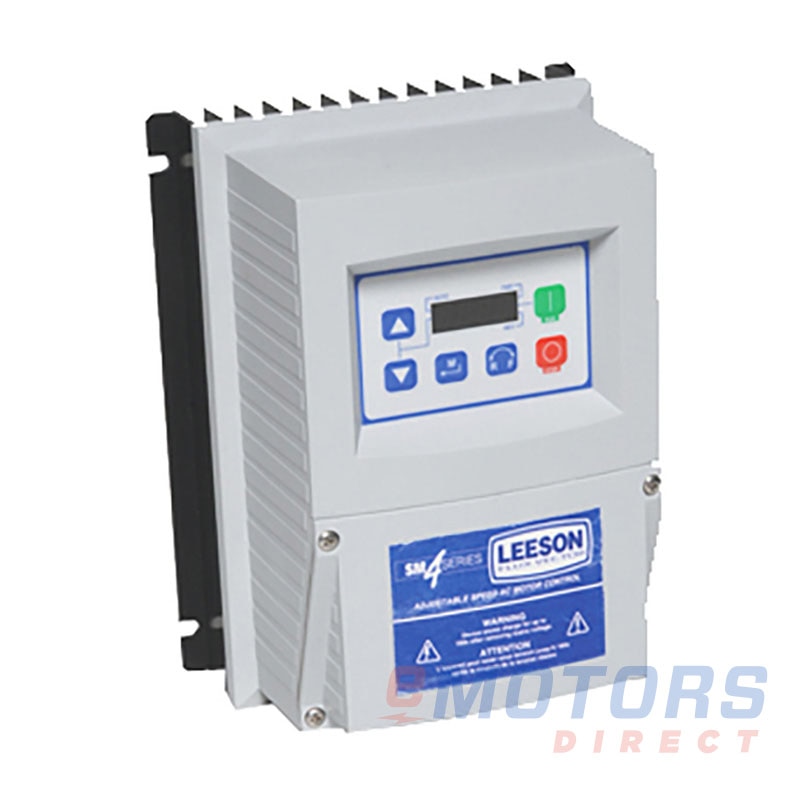

10 HP 460V NEMA 4 SM4 SERIES FLUX VECTOR AC DRIVE
Catalog Number: 174678.00
HP
10
Input Voltage
460V
Output Voltage
460V
Input Phase
3
Enclosure
NEMA 4

Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton [eMotors #2], AB: In Stock (4)
Edmonton, AB: Out of Stock
Mississauga, ON: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Description

The SM4 SERIES FLUX VECTOR™ carries all the features required by demanding applications including four modes of operation (V/Hz, Enhanced V/Hz, Vector Speed, and Torque), high starting torque, auto-tuning, advanced low-speed control, and dynamic speed regulation.

Feature

  • Enclosure: NEMA 4/IP65
  • Indoor use only inverter that is designed to be used with vector duty motors
  • Speed commands: keypad, jog, floating point control
  • Optional remote keypad
  • 8 Pre-set speeds
Electrical Data
HP CT Rating
10 HP
HP VT Rating
15 HP
Input
Output
Voltage
460V
460V
Max CT Current
15.8
14
Max VT Current
-
-
Phase
3
3
Hz Range
48-62
0-500
Physical Data
Weight
11 lb
Height
8"
Width
10"
Depth
8.04"
Enclosure
NEMA 4
Degree of Protection (IP)
IP65
Frame
CH4
Ambient Temp
-10 to 55°C
Additional Data
Agency Approvals
cUL & CE
Country of Origin
USA
Warranty
1-Year
