Product images are for reference only. Please review product specifications for the most accurate and detailed information.

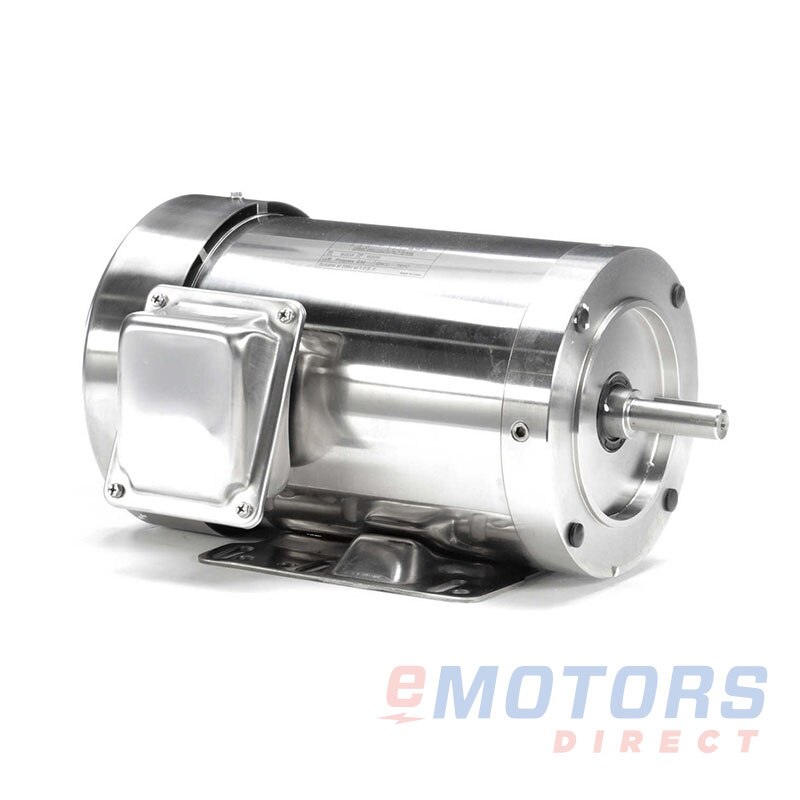

Leeson 191417.00

Leeson
1HP 1200 56HC TEFC 230V|460V Washdown
Catalog Number: 191417.00
Model Number: C6T11NK6A
HP
1
RPM
1200
Voltage
208-230V,460V
Frame
56HC
Phase
3
Enclosure
TEFC
Material
Stainless Steel
Mounting
C-Face / Rigid

Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Mississauga, ON: Out of Stock
Factory Ordered: 3-5 weeks
Edmonton, AB: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1200 RPM
Rated Motor Voltage
208-230V,460V
Rated Motor Current
3.8/1.9 AMP
Phase
3
Poles
6
Locked Rotor Current
-
Fl Current @ 208V
3.8
Service Factor
1.15
KVA Code
K
Nominal Efficiency
82.5
Nominal Power Factor
60
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56HC
Enclosure
TEFC
Mounting
C-Face / Rigid
Number of Speeds
-
Approximate Weight
47lb
Double Drilled
No
Frame Material
Stainless Steel
C-Dimension
13.2"
NEMA Design
B
Degree of Protection (IP)
IP55
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6205
NDE Bearing
6205
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
-
