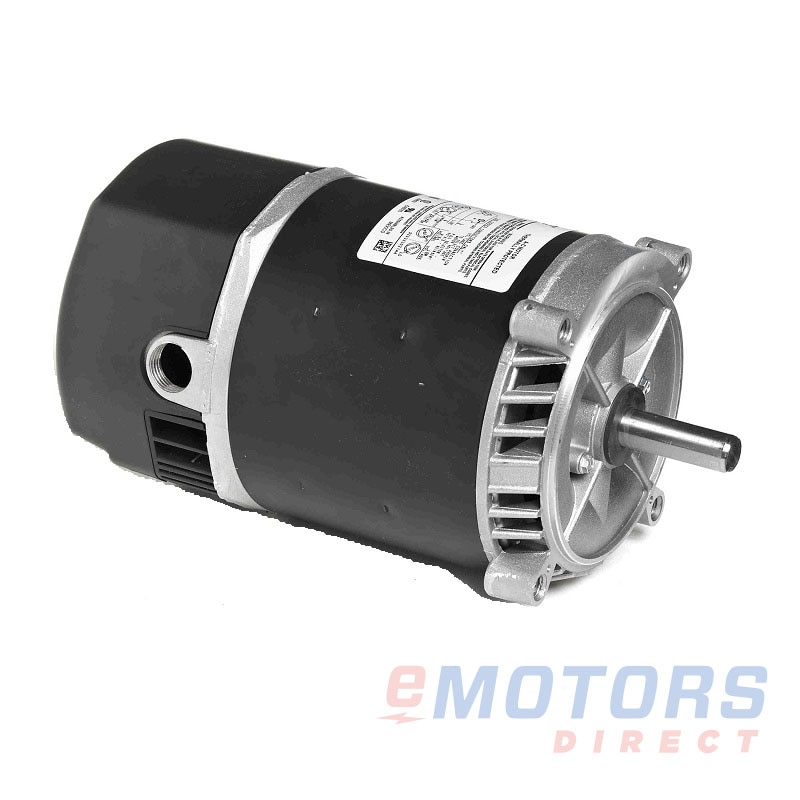

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Leeson C1081

Leeson
1/3 HP 3600 56C ODP 115V|230V Pump
Catalog Number: C1081
Part Number: 5KC39EN2553X
HP
1/3
RPM
3600
Voltage
115V,230V
Frame
56C
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
C-Face / Round Body

Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Factory Ordered: 3-5 weeks
Mississauga, ON: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Feature

  • Two-compartment design for easy servicing
  • Not for use in pool pump applications
  • Fixed CW rotation, viewed opposite shaft end
  • UL recognized and CSA certified
Electrical Data
Rated Motor Output Power
1/3 HP
.24 kW
Rated Motor Speed
3600 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
6.2/3.1 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.75
KVA Code
L
Nominal Efficiency
57.9
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
ODP
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
15lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
11.03"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
CWLE
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
50°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
-
Warranty
1-Year
