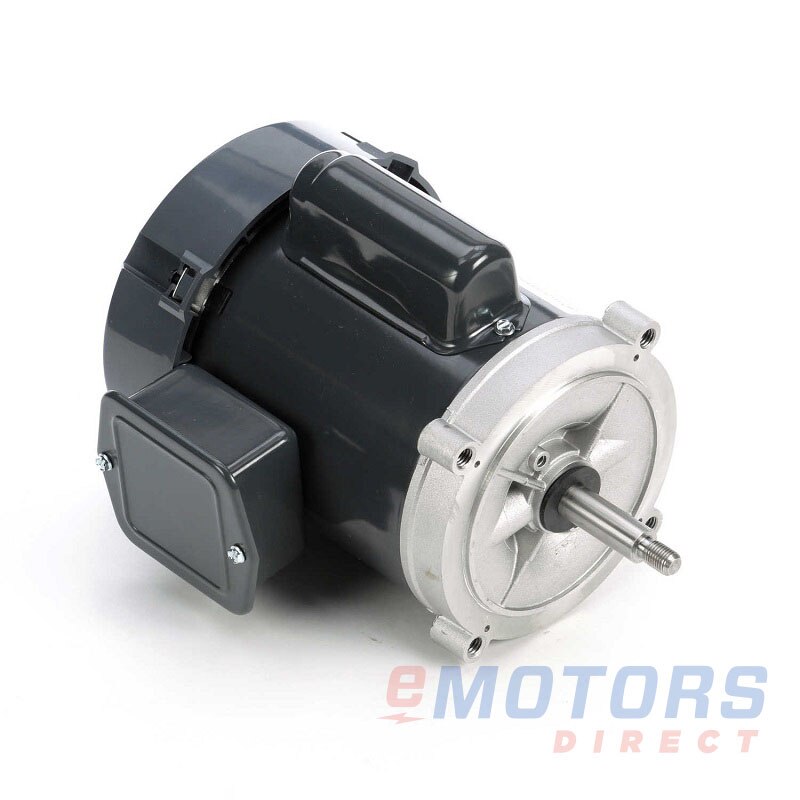

Leeson C1336

Leeson
1/3 HP 3600 56J TEFC 115V|230V Pump
Catalog Number: C1336
Part Number: 5KC33FN4180X
HP
1/3
RPM
3600
Voltage
115V,230V
Frame
56J
Phase
1
Enclosure
TEFC
Material
Rolled Steel
Mounting
C-Face / Round Body

Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Mississauga, ON: Out of Stock
Factory Ordered: 3-5 weeks

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Feature

  • Double sealed ball bearings, mechanically locked on shaft end
  • Reversible CW rotation, viewed opposite shaft end
  • Automatic reset thermal protector
  • Drip cover not included
  • UL recognized and CSA certified
Electrical Data
Rated Motor Output Power
1/3 HP
.24 kW
Rated Motor Speed
3600 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
5.6/2.8 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
L
Nominal Efficiency
58.9
Nominal Power Factor
-
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56J
Enclosure
TEFC
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
14lb
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
11.06"
NEMA Design
-
Degree of Protection (IP)
-
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
2.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA & UL
Country of Origin
-
Warranty
1-Year
