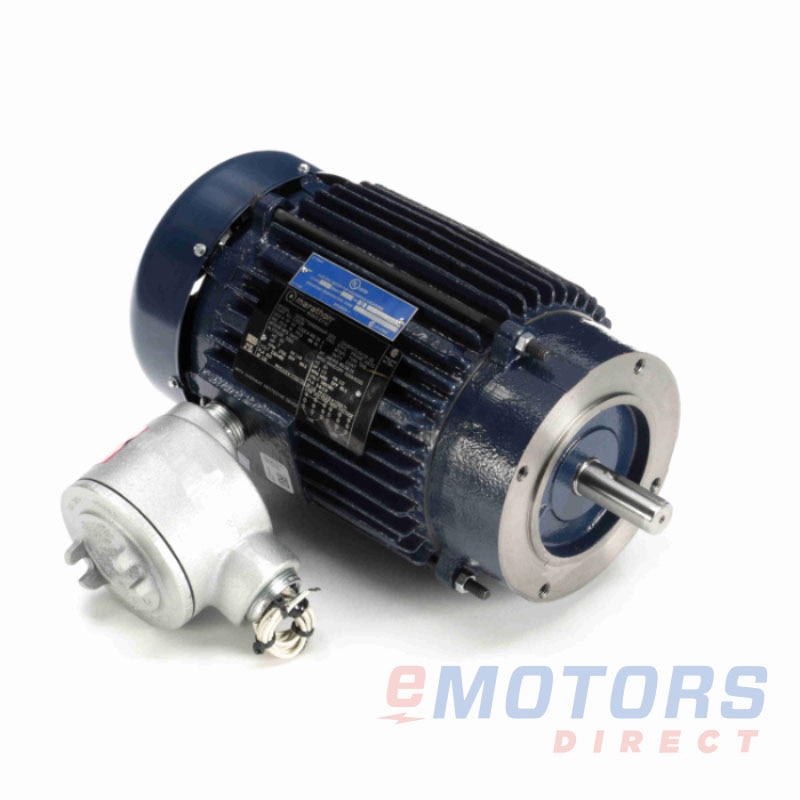

Leeson C302B

Leeson
2 HP 3500 145TC TEFC-XP 230V|460V Explosion Proof
Catalog Number: C302B
Part Number: 145TTGN16504
HP
2
RPM
3600
Voltage
230V, 460V
Frame
145TC
Phase
3
Enclosure
TEFC-XP
Material
Cast Iron
Mounting
C-Face / Round Body
Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Mississauga, ON: Out of Stock
Factory Ordered: 3-5 weeks

Important Links

Save up to CAD$13.00 per year
Switching from a Standard Efficient to a Premium Efficient motor

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No cross-referenced matches have been found, but our team may be able to help find an alternate solution.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Feature

  • “Blue Chip®” thermal protection
  • Thermal protection, 56 frame auto overload, 143-256TC T-stats
  • Conduit box shipped loose on 56 frame, installed on 143-256TC
  • 56 frame class I, groups C & D, class II, groups F & G
  • 143-256TC class I, group D, group C as noted, class II, groups F & G
  • T3B temperature code
  • UL file # E12044
  • CSA file #LR47504
Electrical Data
Rated Motor Output Power
2 HP
1.5 kW
Rated Motor Speed
3500 RPM
Rated Motor Voltage
230V,460V
Rated Motor Current
5.2/2.6 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
L
Nominal Efficiency
86.5
Nominal Power Factor
83
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
145TC
Enclosure
TEFC-XP
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
15.19"
NEMA Design
B
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3B
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
-
Warranty
3-Year
