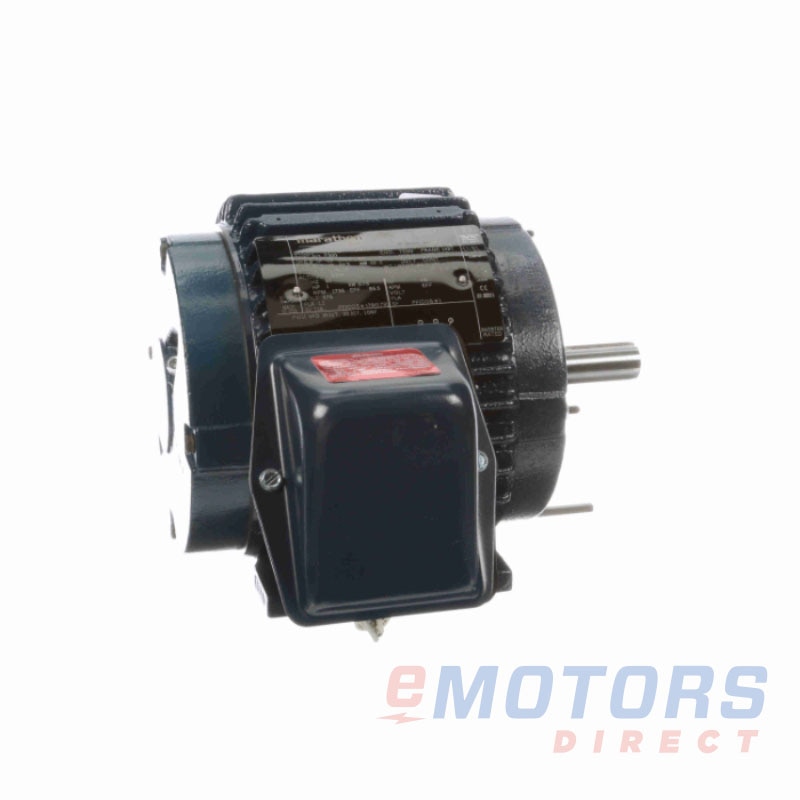

Leeson E300

Leeson
1 HP 1735 143T TENV 575V General Purpose
Catalog Number: E300
Part Number: 143TTTN6030
HP
1
RPM
1800
Voltage
575V
Frame
143T
Phase
3
Enclosure
TENV
Material
Cast Iron
Mounting
Rigid
Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Factory Ordered: 3-5 weeks
Mississauga, ON: Out of Stock

Important Links

Save up to CAD$8.00 per year
Switching from a Standard Efficient to a Premium Efficient motor

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Description

General purpose use on compressors, pumps, conveyors, blowers, and other machinery in dirty and dusty environments. Substantial energy savings can be realized when using these high efficiency motors. Guaranteed efficiencies offer an eXtra return on your Investment when using these premium efficiency motors on high cycle or long run time applications.

Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1735 RPM
Rated Motor Voltage
575V
Rated Motor Current
1.2 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
M
Nominal Efficiency
85.5
Nominal Power Factor
79
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
143T
Enclosure
TENV
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
10.43"
NEMA Design
B
Degree of Protection (IP)
IP43
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
3-Year
