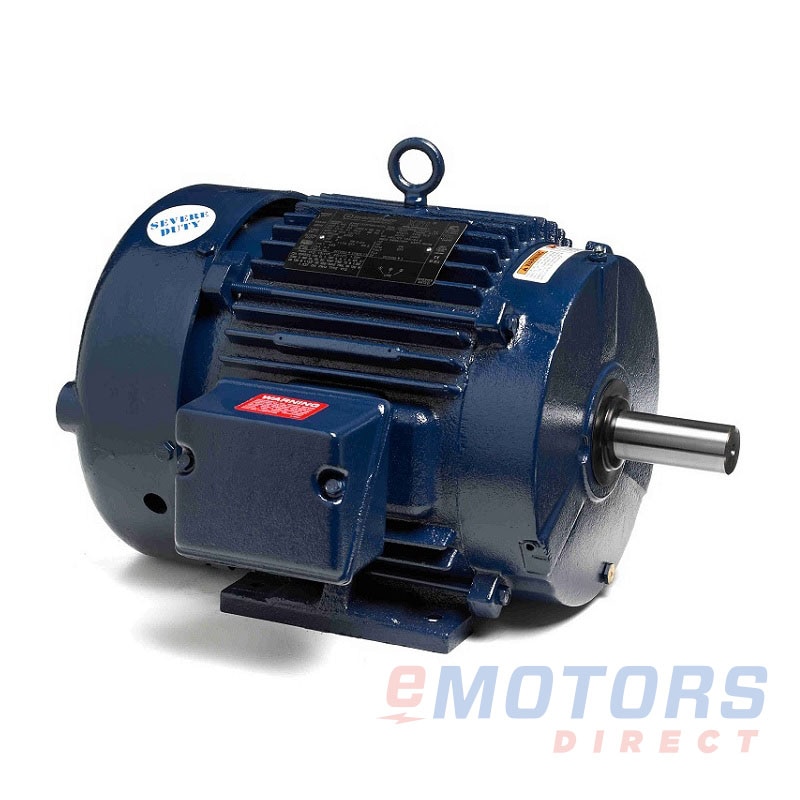

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Leeson E649

Leeson
1 HP 1800 143T TEFC 460V General Purpose
Catalog Number: E649
Part Number: 143TTTN6526
HP
1
RPM
1800
Voltage
460V
Frame
143T
Phase
3
Enclosure
TEFC
Material
Cast Iron
Mounting
Rigid
Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Mississauga, ON: Out of Stock
Factory Ordered: 3-5 weeks

Important Links

Save up to CAD$8.00 per year
Switching from a Standard Efficient to a Premium Efficient motor

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Description

Chemical plants, paper mills, refineries, mines, food processing, foundries, and
other severe duty environments where long life and ultra-high efficiency are desired.
Guaranteed efficiencies offer an eXtra Return on your Investment when using these
premium efficiency motors on high cycle or long run applications.

Feature

  • Meets or exceeds NEMA Premium® efficiencies; NEMA Premium models are in compliance with EISA 2007
  • Blue Chip Series® quality, 100% cast iron construction for rigidity and reduced vibration
  • Internal and external epoxy paint
  • MAX GUARD® motor Class F insulation system
  • Constant torque speed range is listed in CT speed range column
  • 1.15 service factor on sinewave, 1.0 service factor on IGBT power
  • Precision balanced to .08”/sec
  • Extended grease tubes, regreasable in service
  • Brass drain and breather
  • Meets Ford® EM1 automotive duty specification
  • Actual test and vibration data supplied with each motor
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
460V
Rated Motor Current
1.5 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
M
Nominal Efficiency
85.5
Nominal Power Factor
79
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
143T
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Cast Iron
C-Dimension
10.43"
NEMA Design
B
Degree of Protection (IP)
IP54
Insulation Class
F
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.875"
Shaft Length
2.5"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
Class 1 Division 2
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
3-Year
