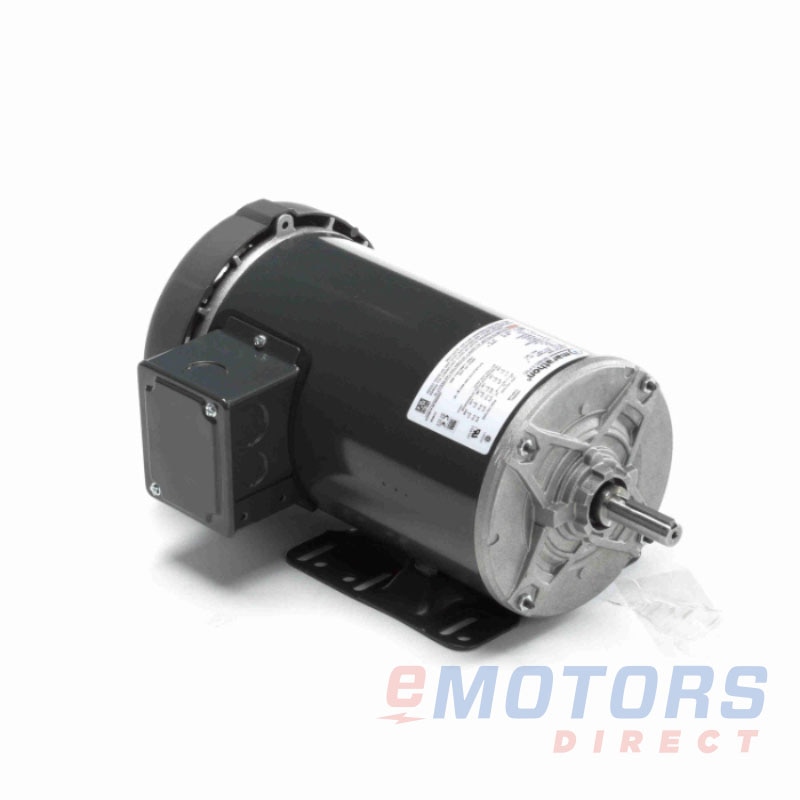

Leeson G368A

Leeson
2 HP 3450 56H TEFC 575V General Purpose
Catalog Number: G368A
Part Number: 056T34F15623
HP
2
RPM
3600
Voltage
575V
Frame
56H
Phase
3
Enclosure
TEFC
Material
Rolled Steel
Mounting
Rigid
Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Mississauga, ON: Out of Stock
Edmonton, AB: Out of Stock
Factory Ordered: 3-5 weeks

Important Links

Save up to CAD$8.00 per year
Switching from a Standard Efficient to a Premium Efficient motor

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Description

General purpose use on compressors, pumps, conveyors, blowers, and other machinery in dirty and dusty environments. Substantial energy savings can be realized when using these high efficiency motors. Guaranteed efficiencies offer an eXtra return on your Investment when using these premium efficiency motors on high cycle or long run time applications.

Electrical Data
Rated Motor Output Power
2 HP
1.5 kW
Rated Motor Speed
3450 RPM
Rated Motor Voltage
575V
Rated Motor Current
2 AMP
Phase
3
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.15
KVA Code
K
Nominal Efficiency
85.5
Nominal Power Factor
86
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56H
Enclosure
TEFC
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
14.32"
NEMA Design
B
Degree of Protection (IP)
IP43
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
2.25"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
3-Year
