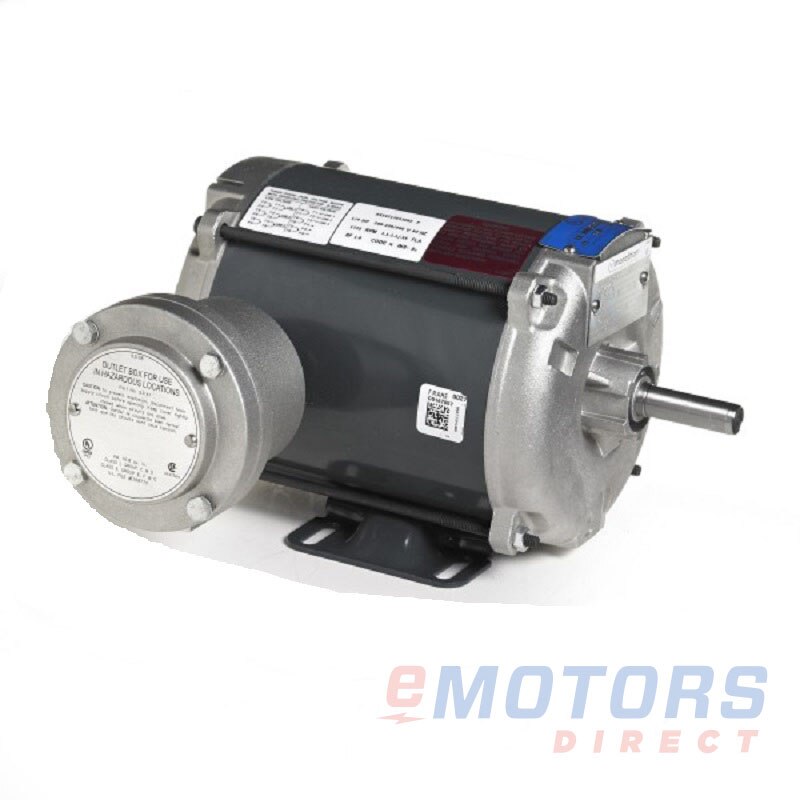

Leeson G666

Leeson
1/2 HP 1800 56 TEFC-XP 575V Explosion Proof
Catalog Number: G666
Part Number: 056T17G5321
HP
1/2
RPM
1800
Voltage
575V
Frame
56
Phase
3
Enclosure
TEFC-XP
Material
Rolled Steel
Mounting
Rigid
Ships next business day

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: In Stock
Mississauga, ON: In Stock
Factory Ordered: 3-5 weeks
Edmonton [eMotors #2], AB: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Feature

  • Meets temperature code T3B
  • Explosion proof conduit box included, shipped loose
  • UL Listed File No. E12044
  • CSA Certified File No. LR47504
Electrical Data
Rated Motor Output Power
1/2 HP
.37 kW
Rated Motor Speed
1800 RPM
Rated Motor Voltage
575V
Rated Motor Current
1 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
M
Nominal Efficiency
68
Nominal Power Factor
61.1
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56
Enclosure
TEFC-XP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
13.94"
NEMA Design
-
Degree of Protection (IP)
IP54
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3B
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
1.875"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
-
Warranty
1-Year
