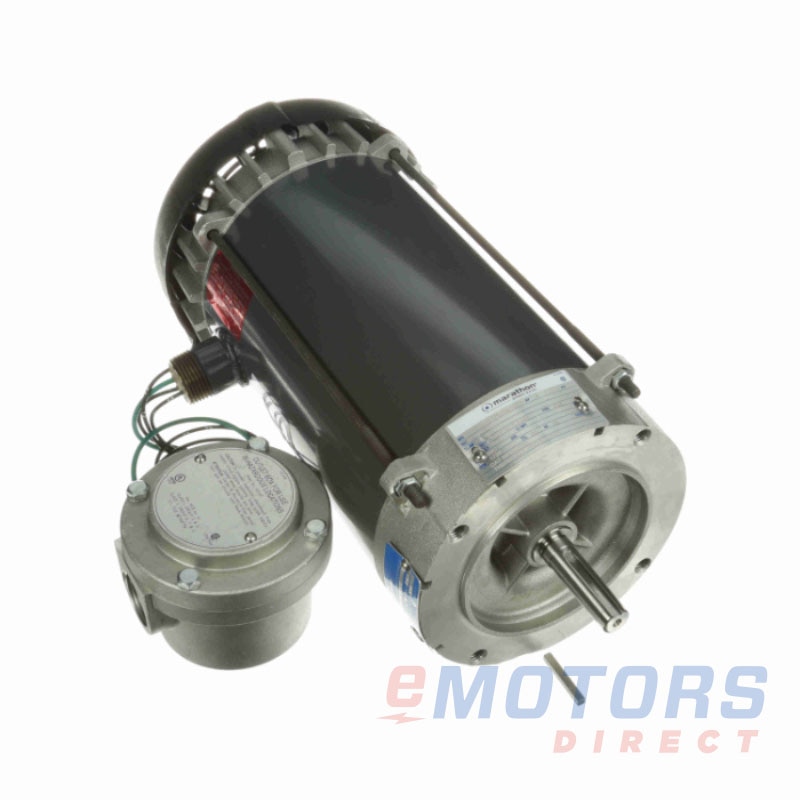

Leeson G846A

Leeson
1 HP 1725 56C TEFC-XP 575V Explosion Proof
Catalog Number: G846A
Part Number: 056T17G15615
HP
1
RPM
1800
Voltage
575V
Frame
56C
Phase
3
Enclosure
TEFC-XP
Material
Rolled Steel
Mounting
C-Face / Round Body
Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Edmonton, AB: Out of Stock
Mississauga, ON: Out of Stock
Factory Ordered: 3-5 weeks

Important Links

Save up to CAD$8.00 per year
Switching from a Standard Efficient to a Premium Efficient motor

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Cross-Referenced Matches (1)

Equivalent alternatives from other brands that have matching specifications to this product.

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Feature

  • “Blue Chip®” thermal protection
  • Thermal protection, 56 frame auto overload, 143-256TC T-stats
  • Conduit box shipped loose on 56 frame, installed on 143-256TC
  • 56 frame class I, groups C & D, class II, groups F & G
  • 143-256TC class I, group D, group C as noted, class II, groups F & G
  • T3B temperature code
  • UL file # E12044
  • CSA file #LR47504
Electrical Data
Rated Motor Output Power
1 HP
.75 kW
Rated Motor Speed
1725 RPM
Rated Motor Voltage
575V
Rated Motor Current
1.3 AMP
Phase
3
Poles
4
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1
KVA Code
P
Nominal Efficiency
85.5
Nominal Power Factor
68
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56C
Enclosure
TEFC-XP
Mounting
C-Face / Round Body
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
15.94"
NEMA Design
B
Degree of Protection (IP)
IP54
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
T3B
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
2"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA
Country of Origin
-
Warranty
3-Year
