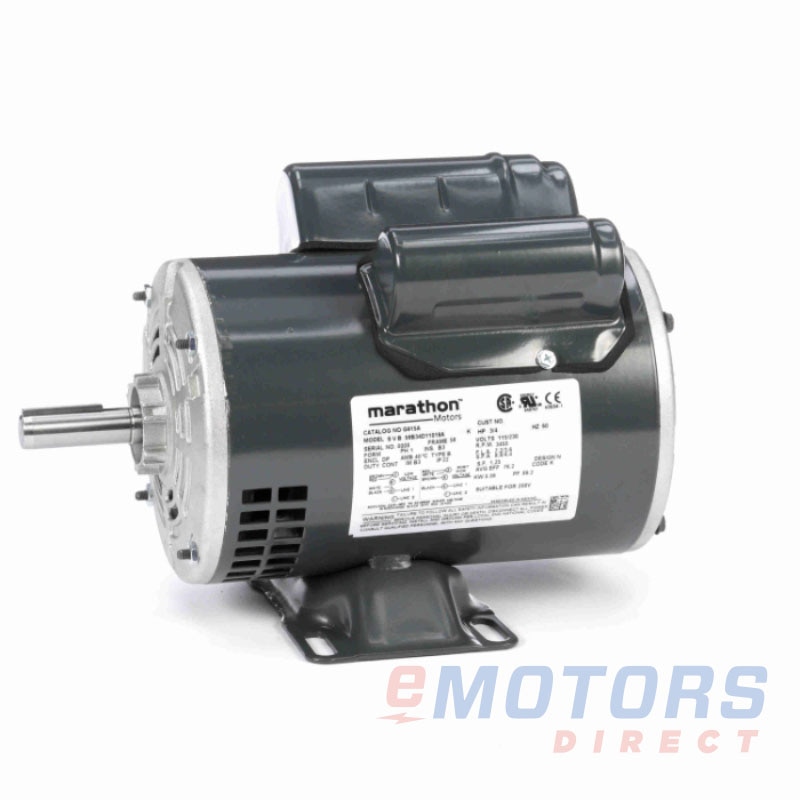

Product images are for reference only. Please review product specifications for the most accurate and detailed information.

Leeson G915A

Leeson
3/4 HP 3450 56 ODP 115V|230V General Purpose
Catalog Number: G915A
Part Number: 056B34D11019
HP
3/4
RPM
3600
Voltage
115V, 230V
Frame
56
Phase
1
Enclosure
ODP
Material
Rolled Steel
Mounting
Rigid
Availability: Factory Order (3-5 weeks)

Available for Delivery

To get accurate delivery estimates, please enter your postal code.

Stock Locations

Factory Ordered: 3-5 weeks
Mississauga, ON: Out of Stock
Edmonton, AB: Out of Stock

Important Links

Technical Support Available 8:30am-6:00pm EST

Call 1-800-890-7593

Contact our team for alternative solutions

No product line matches have been found, but our team may be able to help find an alternate solution.

Feature

  • Heavy gauge steel frame and base
  • UL recognized and CSA certified
  • NEMA® SERVICE FACTOR
Electrical Data
Rated Motor Output Power
3/4 HP
.55 kW
Rated Motor Speed
3450 RPM
Rated Motor Voltage
115V,230V
Rated Motor Current
7.2/3.6 AMP
Phase
1
Poles
2
Locked Rotor Current
-
Fl Current @ 208V
-
Service Factor
1.25
KVA Code
K
Nominal Efficiency
76.2
Nominal Power Factor
89.2
Leads (Qty, Size)
-
Frequency
60 Hz
Connection
-
Start Capacitor
-
Run Capacitor
-
MFD
-
VFD (S.F. 1.0)
Ratio
Hz
Variable Torque
-
-
Constant Torque
-
-
General Data
Frame
56
Enclosure
ODP
Mounting
Rigid
Number of Speeds
-
Approximate Weight
-
Double Drilled
No
Frame Material
Rolled Steel
C-Dimension
11.47"
NEMA Design
N
Degree of Protection (IP)
IP22
Insulation Class
B
Rotation
Reversible
Duty
Continuous
Conduit Box Location
-
Removable Feet
No
Orientation
Horizontal
Ambient Temp
40°C
Full Load Temperature Rise
Full Load Temp Rise
-
Temp Code
-
Mechanical Data
DE Bearing
6203
NDE Bearing
6203
Shaft Diameter
0.625"
Shaft Length
2"
Grease Type
-
Greaseable
No
Hazardous Locations
CSA Certified
-
Temp Code (Sine Wave Power)
-
Temp Code (VFD Power)
-
Additional Information
Agency Approvals
CSA, UL & CE
Country of Origin
-
Warranty
1-Year
